    GLC-LH-SM 1.25G SFP 1310nm 20KM Dual LC Optical Transceiver Module

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : GLC-LX-SMD
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 100PCS Per Day
    Delivery Time : 3-5 Working Days
    • Product Details
    • Company Profile

    GLC-LH-SM 1.25G SFP 1310nm 20KM Dual LC Optical Transceiver Module

    GLC-LH-SM 1.25G SFP 1310nm 20KM Dual LC Optical Transceiver Module


    Hilink Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).

    Hilink 1.25G LX SFP transceiver is designed to transmit and receive optical data over Single mode optical fiber for link length 20km.


    Item No.GLC-LX-SMDVendor NameHilink
    Form TypeSFPMax Data Rate1.25Gbps
    Wavelength1310nmMax Cable Distance20KM
    InterfaceLC duplexOptical ComponentsFP
    Cable TypeSMFDOM SupportYes
    TX Power-8~-4dBmReceiver Sensitivity<-25dBm
    Commercial Temperature Range0 to 70°C (32 to 158°F)HTS-Harmonized Code8517706000

    Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.


    Features


    • Up to 1.25Gb/s dual data links

    • Hot-pluggable SFP footprint

    • 1310nm FP laser transmitter

    • Duplex LC connector

    • Up to 20km on 9/125µm SMF

    • Metal enclosure for lower EMI

    • Single +3.3V power supply

    • Low power dissipation <700mW

    • Commercial operating temperature range: 0 to +70℃

    • Industrial operating temperature range: -40°C to +85°C


    Applications


    • 1.25Gb/s 1000Base-LX Ethernet

    • 1.06Gb/s Fiber Channel

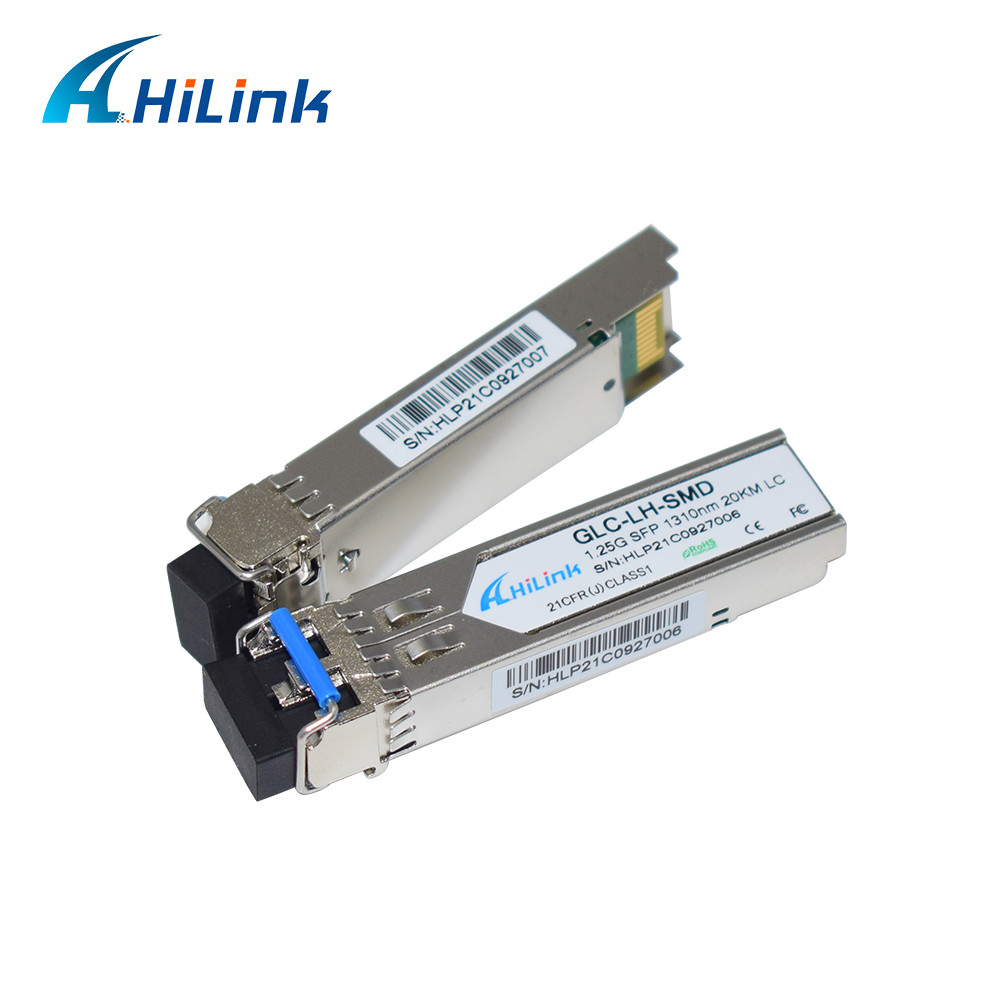

    Details Photos



    GLC-LH-SM 1.25G SFP 1310nm 20KM Dual LC Optical Transceiver ModuleGLC-LH-SM 1.25G SFP 1310nm 20KM Dual LC Optical Transceiver Module


    Hilink Advantage

    1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
    2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
    3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
    Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
    4. We provide 3 years warranty for all our products from the date of shipment.
    5. All of our products get through CE,ROHS,FCC.
    6. We also provide DWDM CWDM WDM with optical solutions.

    FAQ

    1. Can I have a sample order? What is your MOQ?
    Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
    Mixed samples are acceptable.

    2. What is the lead time?

    1-3 days after receiving the payment for the regular goods we normally keeping in stock;
    For large quantity, you'll get support and details from your sales representative of HilinkTech.


    3. What is the shipping way and how long is the period?

    DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


    4. What is your warranty?

    3-year warranty.You'll get technique support, replacement or refund.
