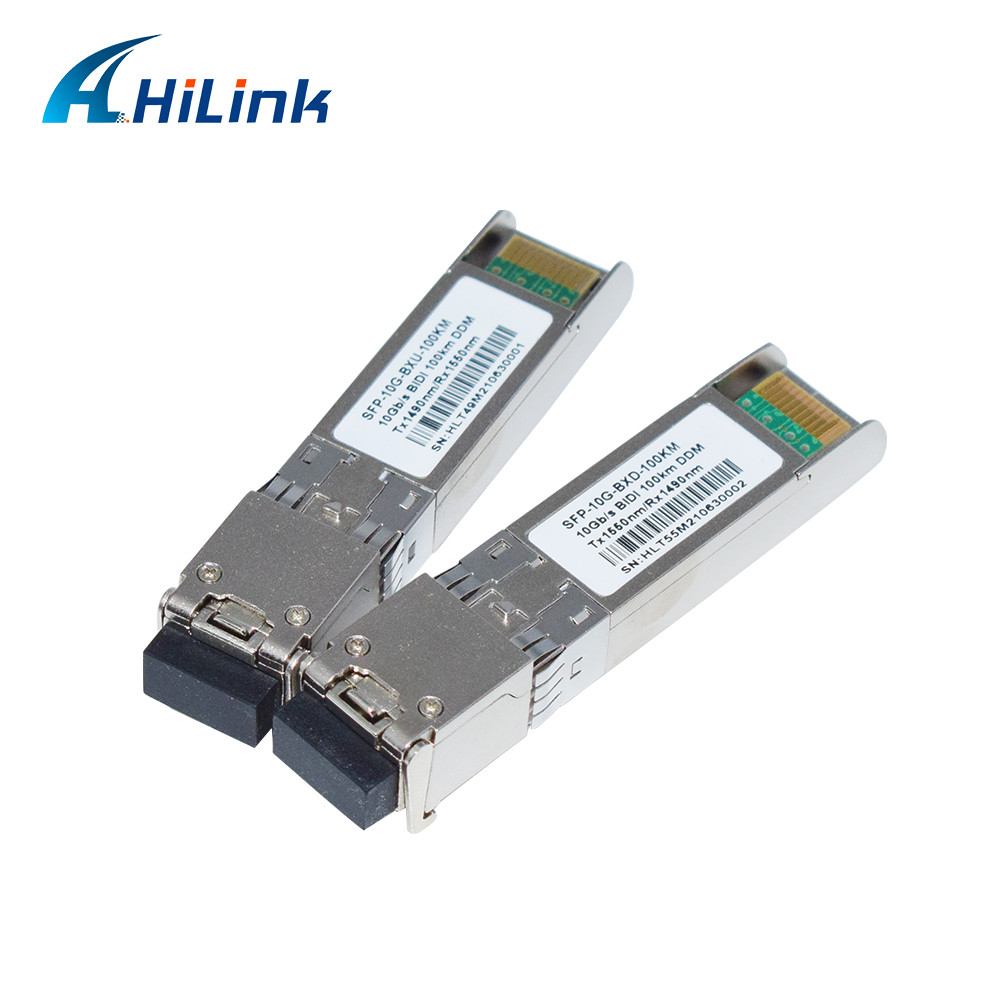

BIDI 10G WDM SMF Optical Transceiver SFP+ 100KM Tx1490nm/Rx1550nm
with LC Fiber Optic Transceivers for FTTH Networks
Hilink’s HLSBxx1XL-CD100 transceivers are compliant with the
IEEE803.3ae 10Gbase-Bx. and transmission distance up to 100km on
SMF .
The transceiver module comprises a transmitter with a 1490 or
1550nm EML laser transmitter, an integrated 1550 or 1490nm detector
preamplifier(IDP) mounted in an optical header and a limiting
post-amplifier IC. Transmitter and receiver are separate within a
wide temperature range of 0℃ to +70℃ for commercial temperature,
-40 to 85 °C for industrial temperature, and offers optimum heat
dissipation and excellent electromagnetic shielding for 10 GbE
systems application.
Features
Supports 9.95 to 11.3Gb/s bit rates
Simplex LC Connector
Hot-pluggable XFP footprint
Applicable for 100km SMF connection
Low power consumption, < 2.0 W
Digital Diagnostic Monitor Interface
XFP MSA package
Operating case temperature: Commerical:0 to 70 °C Industrial:-40 to
85 °C
Specifications
| Item No. | HL-SFP-BX-100 | Vendor Name | Hilink |
| Form Type | FP | Max Data Rate | 11.3Gb/s |
| Wavelength | 1490/1550nm | Max Cable Distance | 100KM |
| Interface | LC Simplex | Optical Components | EML + APD |
| Cable Type | SMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER; BER<10-12; 231 – 1 PRBS.
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link,
Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie,
Zyxel, etc.
Applications
Hilink Advantages
1. Hilink ,a professional manufacturer established in
2007,Specialize in optical network communications with over 10
years experience.
2." Credit is the basis, quality is the first",all our products are
new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei,
Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel,
Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products
from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi
SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece
is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we
normally keeping in stock;
For large quantity, you'll get support and details from your sales
representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The
arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or
refund.
