Compact CWDM Mutiplexer Module LC/UPC Low Insertion Loss WDM Network

Ask Lasest Price
Brand Name :	Hilink
Model Number :	HL-CCWDM-MUX
Certification :	CE FCC Rohs
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram,Paypal
Supply Ability :	200PCS/month

Add to Cart

Product Details
Company Profile

Compact CWDM Mutiplexer Module LC/UPC Low Insertion Loss WDM Network

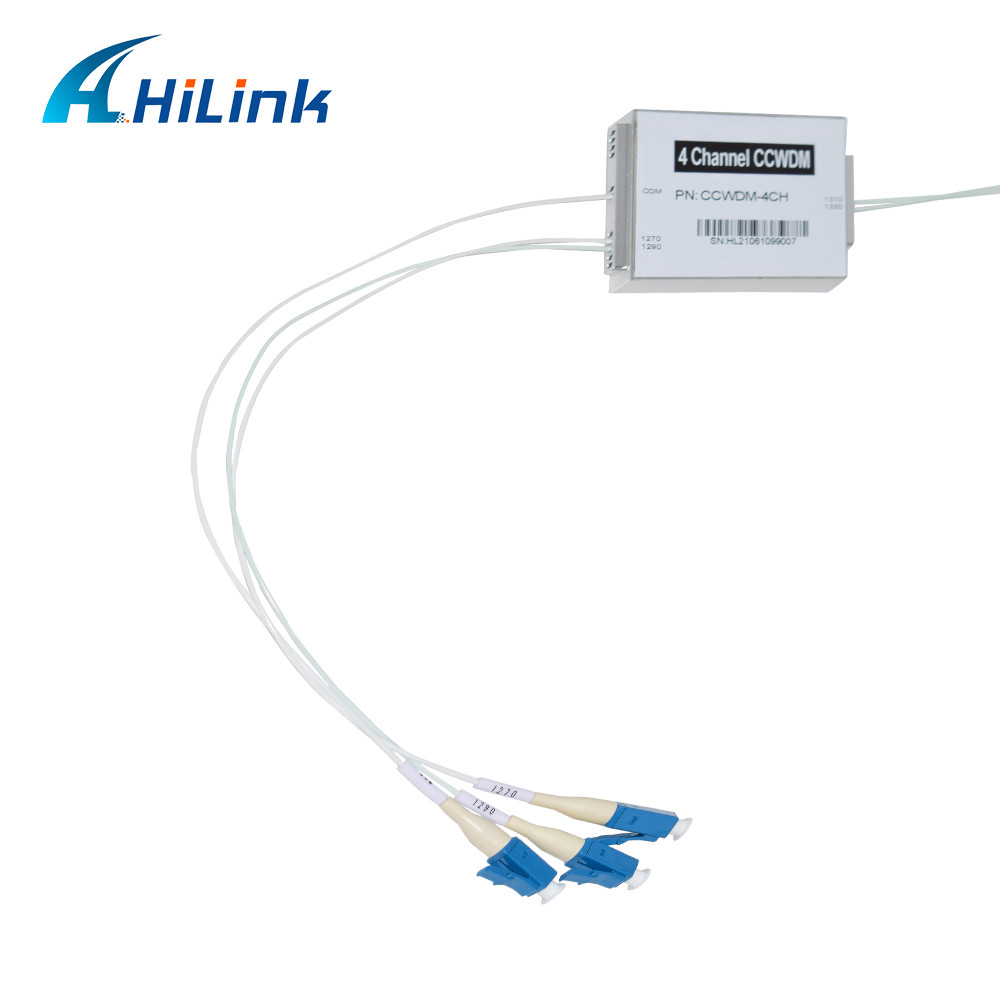

Compact CWDM Mutiplexer Module CCWDM-4CH LC/UPC Low Insertion Loss WDM Network

Hilink's Low Loss Compact Coarse Wavelength Division Multiplexer (CCWDM) is based on Thin-Film-Filter and Micro-Optics.This technology is a lead-free packaging platform with high reliability.

Highlights

* Mini form

* Ultra low loss

* High channel isolation

Features

* Ultra-Low Insertion Loss

* High Isolation

* Low PDL

* Compact Design

* Good channel-to-channel uniformity

* Mounted in 19' 1U Racks or ABS box optional

* Wide Operating Wavelength: From 1260nm to 1620nm

* Wide Operating Temperature: From -40℃ to 85℃

* High Reliability and Stability

Compliance

* Telcordia GR-1209-CORE-2001
* Telcordia GR-1221-CORE-1999
* RoHS

Description		Unit	Min	Typical		Max.
Optional channel loss		dB		0.8		1.1
Pass band width		nm	13
Flatness		dB		0.3		0.5
Adjacent channel isolation		dB	30	35
Non adjacent channel isolation		dB	40	45
Directivity		dB	55
PDL		dB				0.2
PMD		ps				0.2
Max. power		mw	500
Pass channel insertion loss	P	dB	0.8		1.0
	A		1.0		1.5
Channel wavelength		nm	1471 1491 1511 1531 1551 1571 1591 1611 Can be selected on request or any 4channel between 1260-1625
Operating temperature		°C	0 ~+70
Storage temperature		°C	-40 ~+85
Package		mm	43(L)X28(W)X6(H) or customerized

Applications

* CWDM System

* PON Networks

* CATV Links

* WDM Network

Details Images

Hilink Advantages

1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.

FAQ

1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.

2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.

3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .

4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
