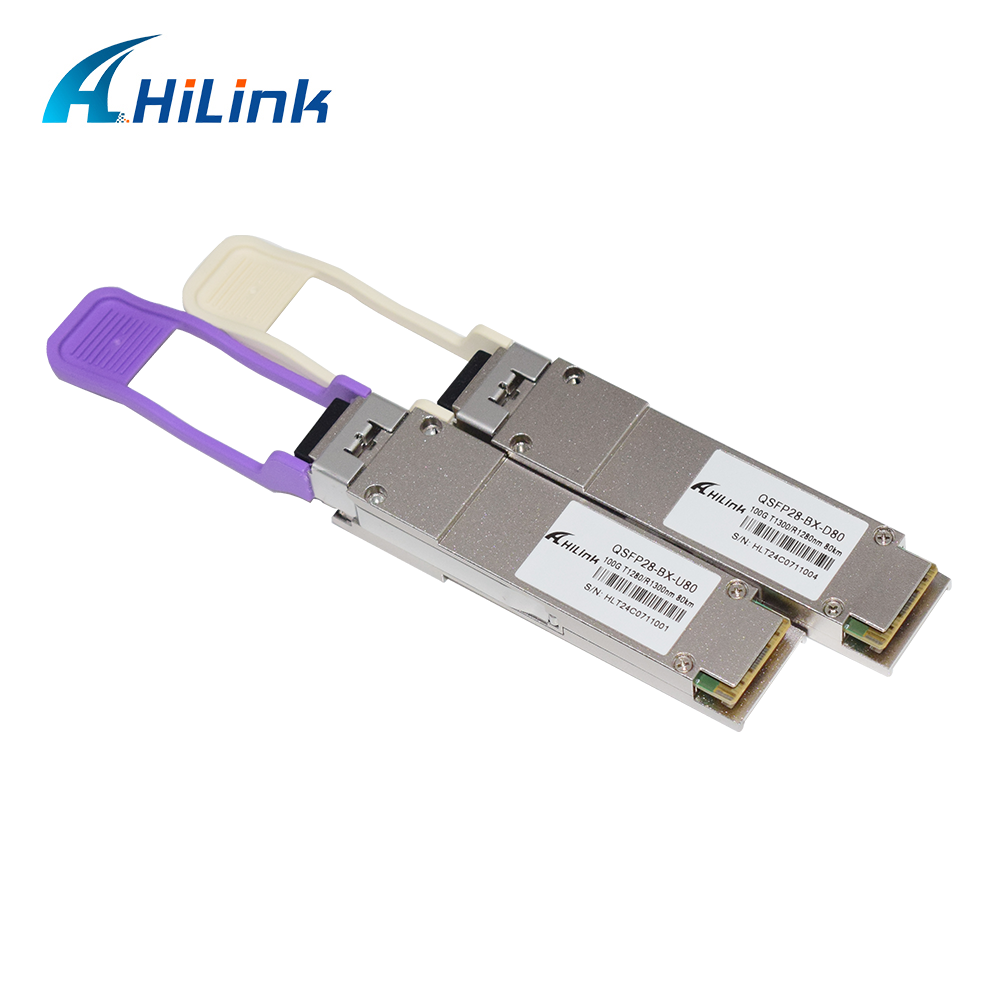

HL-QSFP28-100G-80 100Gb/s QSFP28 BiDi 80km Transceiver Hot
Pluggable Simplex LC Connector EML+PIN with SOA Single mode DDM
HL-QSFP28-100G-UD-80 provides 100GBase-BX throughput up to 80km over single-mode fiber (SMF) using wavelengths of 1273.54, 1277.89, 1282.26, 1286.66nm- TX/1295.56, 1300.05, 1304.58, 1309.14nm-RX(1295.56, 1300.05, 1304.58, 1309.14nm- TX/1273.54, 1277.89, 1282.26, 1286.66nm-RX) via an LC connector. This bidirectional unit must be used with
another transceiver or network appliance of complimenting
wavelengths. Digital diagnostics functions are also available via
the I2C interface, as specified by the QSFP28 MSA, to allow access
to real-time operating parameters. With these features, this easy
to install, hot swappable transceiver is suitable to be used in
various applications, such as 100G Ethernet, data center, and
storage area networks applications.
Features
4x25Gb/s LAN WDM Blue or Red Side TOSA, LAN WDM Red or Blue Side
ROSA with SOA
Support 100GBASE-ZR4 for line rate of 103.125Gbps and OTU4 for line rate of
111.81Gbps
Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm
CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02
standard
Simplex LC connector·
Single +3.3V power supply operating
Temperature range 0°C to 70°C
RoHS Compliant Part
Applications
100GBASE-ZR4
Data Center
OEM and ODM
OEM/ODM order is available.
Guarantee
We promise all the advertised optical transceivers are brand new
with new components and parts and absolutely never use old and
refurbished materials. All the optical transceivers have been
through functional test and aging test. We provide 3 years warranty
for all the optical transceivers from the date of shipment.
What we supply
We supply all kinds of compatible optical transceiver modules,
including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and
other special transceiver modules. Our products are compatible with
most of brands. If more details, please contact us.
