25G ZR SFP 80KM LC 25G Ethernet SFP Transceiver DOM 1310nm Fiber Optic Transceivers

25G ZR SFP 80KM LC DOM 1310nm Fiber Optic Transceivers

Product Description

The SFP28 transceiver are high performance, cost effective modules supporting data rate of 25.78Gbps and 80km transmission distance over SMF with FEC.

The transceiver consists of three sections: a EML laser transmitter, a SOA and PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Features

Supports up to 25Gbps bit rates

Duplex LC connector interface,hot pluggable

1310nm EML Laser on transmitter side

Integrated SOA and PIN Tia on the receiver side

Distance up to 80km for SMF transmission with FEC

Compliant with SFP+ MSA and SFF-8472

Single +3.3V power supply

Power dissipation <2.5W

Operating case temperature: Standard: 0 to +70°C

Compatible with RoHS

Application

25GE BASE-ER Ethernet

CPRI Option 10/eCPRI

25G SFP Transceivers

25G SFP
SFP28-25G-SR	SFP28 25Gbps 850nm 100M LC DOM
SFP28-25G-LR	SFP28 25Gbps 1310nm 10KM LC DOM
SFP28-25G-ER	SFP28 25Gbps 131nm 40KM LC DOM

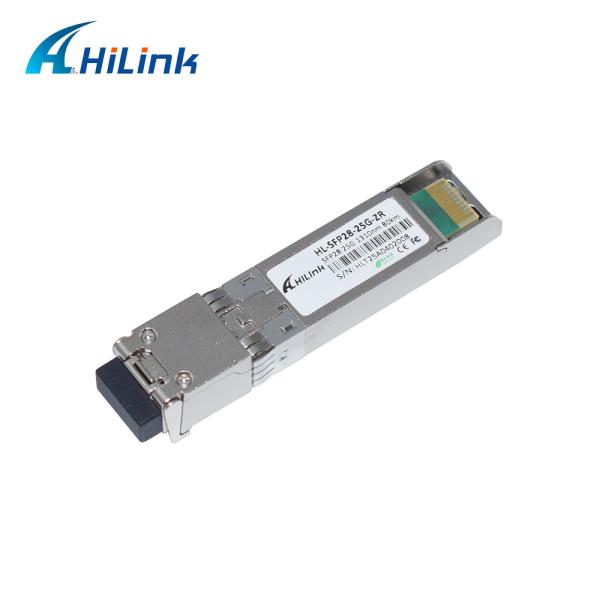

Product Picture Show

Mechanical Dimensions
