    25G SFP28 BIDI 50km 1270/1310nm Module

    Ask Lasest Price
    Brand Name : Hilink
    Model Number : 25G-BXU/D-50
    Certification : CE Rohs
    Price : Send Inquiry know latest price
    Payment Terms : T/T,Western Union,Alipay,Paypal/Wechat/Trade Assurance
    Supply Ability : 2000 Pieces/Week
    Delivery Time : 5-8 working day
    • Product Details
    • Company Profile

    25G SFP28 BIDI 50km 1270/1310nm Module

    25G SFP28 BIDI 50km 1270/1310nm
    Product Specifications
    Product Name25G-BXU/D-50
    Data Rate25G
    Reach50KM
    Operating Temperature0 to 70℃
    Key Features
    • Supports data rates up to 25.78125Gb/s
    • Hot-pluggable SFP footprint with single LC connector
    • Up to 50km reach for G.652 SMF
    • EML transmitter and integrated APD receiver
    • Temperature range: Commercial (0°C to 70°C)
    • Power consumption: Commercial (1.5W)
    • RoHS 6 compliant
    • Compliant with IEEE 802.3cc, SFP-8472, SFP-8432 and SFP-8431
    • Meets EU Directive 2015/863/EU requirements
    Applications
    • 25G Ethernet networks
    Product Description

    This 25G series single mode transceivers are high performance, cost effective modules supporting data rate of 25.78Gbps and 50km transmission distance with SMF. This module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1310nm; the transmitter section uses a multiple quantum well EML, which is class 1 laser compliant according to International Safety Standard IEC-60825.
    The SFP28 50km module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.

    Product Images

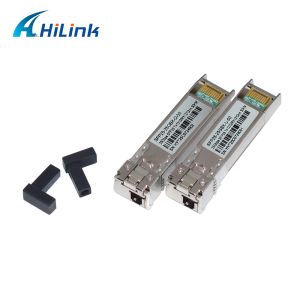

    25G SFP28 BIDI 50km 1270/1310nm Module

    25G SFP28 BIDI 50km 1270/1310nm Module

    Our Service

    OEM/ODM orders available - All optical modules are brand new with no refurbished components. Each unit undergoes rigorous functional and aging tests.

    3-year warranty - Coverage begins from shipment date for all optical transceivers.
