10G DWDM 1558.98nm 40km DOM LC SMF Transceiver Module

Shenzhen HiLink Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 10G DWDM 1558.98nm 40km DOM LC SMF Transceiver Module from wholesalers

    Buy cheap 10G DWDM 1558.98nm 40km DOM LC SMF Transceiver Module from wholesalers
    • Buy cheap 10G DWDM 1558.98nm 40km DOM LC SMF Transceiver Module from wholesalers
    • Buy cheap 10G DWDM 1558.98nm 40km DOM LC SMF Transceiver Module from wholesalers

    10G DWDM 1558.98nm 40km DOM LC SMF Transceiver Module

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-DW-SFP-XX
    Certification : CE FCC Rohs
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 999PCS/month
    • Product Details
    • Company Profile

    10G DWDM 1558.98nm 40km DOM LC SMF Transceiver Module

    C23 DWDM SFP10G-58.98 Compatible 10G DWDM SFP+ 1558.98nm 40km DOM LC SMF Transceiver Module


    10Gbps DWDM SFP 0.8nm space

    We can supply CWDM DWDM Network Solution

    Features

    • 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER/ZW

    • Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”

    • 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers

    • Operating case temperature: 0 to 70 °C

    • All-metal housing for superior EMI performance

    • Low power consumption, less than1.6 w

    • Advanced firmware allow customer system encryption information to be stored in transceiver

    • Cost effective SFP+ solution, enables higher port densities and greater bandwidth

    • RoHS compliant


    Applications

    • High-speed storage area networks
    • Computer cluster cross-connect
    • Custom high-speed data pipes

    Specifications:

    P/NSFP-10G-DW-xx.xx-A
    Datarate10.3G/ps
    Distance40KM
    WavelengthDWDM 1563.86nm-1530.33nm
    TransmitterEML
    ReceiverPIN
    MediaSMF
    DDM/DOMYES
    ConnectorLC
    Application10 Gigabit Ethernet
    Operating Temperature0℃~ +70℃
    Voltage Supply3.3V
    CertificationCE/FCC/RoHS/TUV/
    BrandNeuter, OEM, Hilink

    DWDM series 155m~10GB optical transceiver


    SFP-10G-SRSFP-10G-SR-A10GBASE-SR SFP+ transceiver module for MMF, 300M
    SFP-10G-SRLSFP-10G-SRL-A10GBASE-SR SFP+ transceiver module for MMF, 300M
    SFP-10G-LRSFP-10G-LR-A10GBASE-LR SFP+ transceiver module for SMF,10km
    SFP-10G-LRMSFP-10G-LRM-A10GBASE-LRM SFP+ transceiver module for MMF 220M
    SFP-10G-ERSFP-10G-ER-A10GBASE-ER SFP+ transceiver module for SMF, 40km
    SFP-10G-DW-xx.xxSFP-10G-DW-xx.xx-A10G DWDM SFP+ xxxx.xxnm C17 to C59

    Competitive advantage:
    1. Excellent quality and 3 years warranty
    2. Competitive pricing
    3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
    4. OEM/ODM Customized label
    5. Keep stock,Fast delivery


    OEM and ODM

    OEM/ODM order is available.

    We can supply products according to your requirements, and design products label for your company.


    Shipment

    International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.


    Guarantee

    We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.


    What we supply

    We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with Cisco, 3COM, H3C, HP, Extreme, Broacom, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, Huawei,etc.

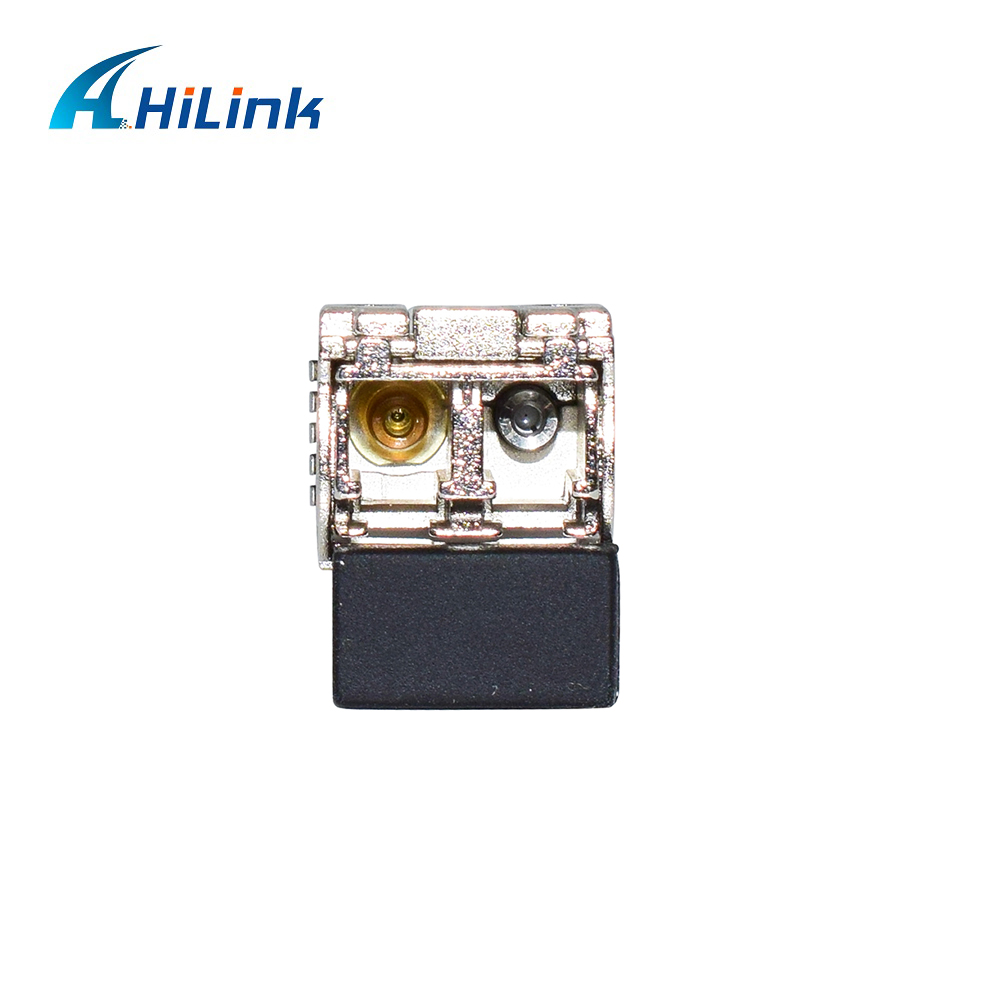

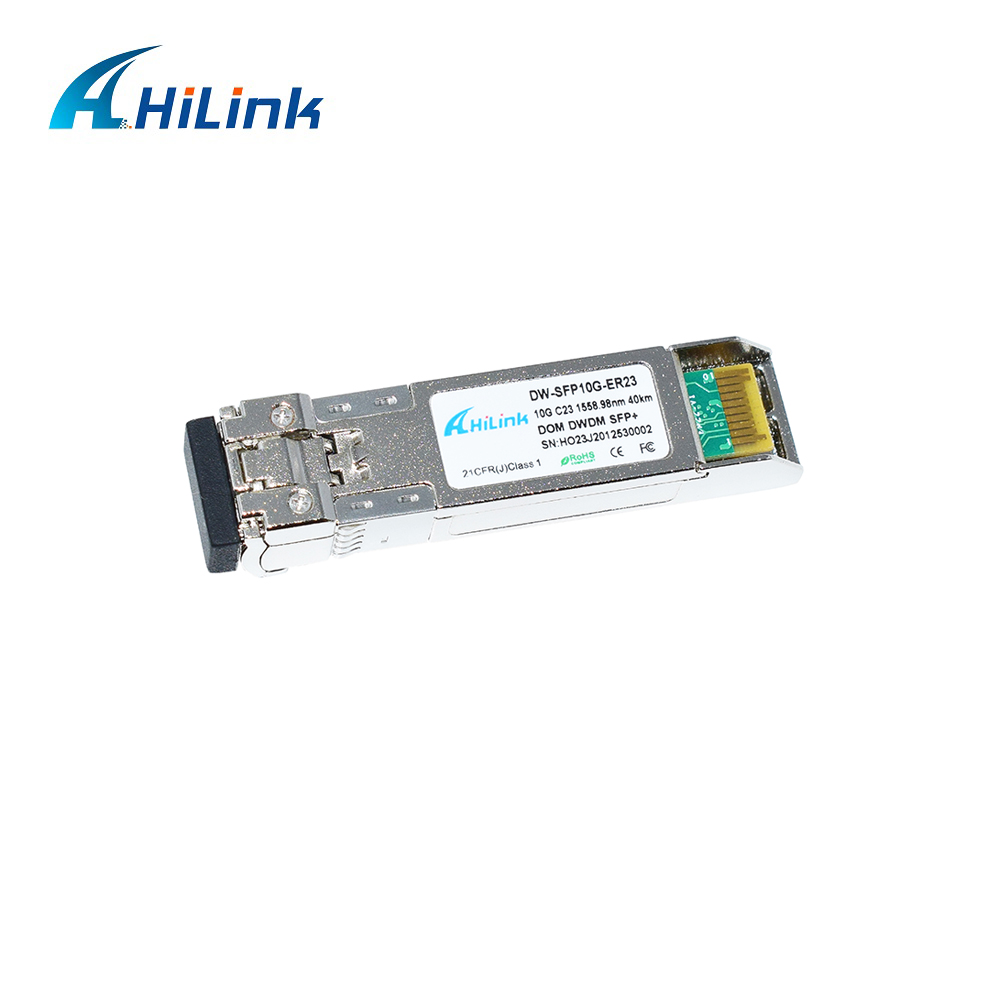

    Product picture show


    10G DWDM 1558.98nm 40km DOM LC SMF Transceiver Module


    Quality 10G DWDM 1558.98nm 40km DOM LC SMF Transceiver Module for sale
