    QSFP+ ER4 40km 40G Optical Transceiver Module

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL- QSFP+-ER4
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 1000pcs/month
    • Product Details
    • Company Profile

    QSFP+ ER4 40km 40G Optical Transceiver Module

    40G optical fiber module QSFP+ ER4 40km with 4 CWDM optical signals LC





    Features

    4 CWDM lanes MUX/DEMUX design
    Up to 11.2Gbps per channel bandwidth
    Aggregate bandwidth of > 40Gbps
    Duplex LC connector
    Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard
    QSFP MSA compliant
    APD photo-detector
    Up to 40 km transmission
    Compliant with QDR/DDR Infiniband data rates
    Single +3.3V power supply operating
    Built-in digital diagnostic functions
    Temperature range 0°C to 70°C
    RoHS Compliant Part

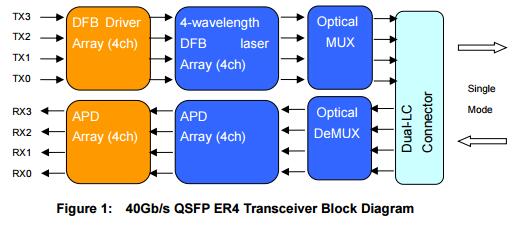

    Transceiver Block Diagram



    Applications
    • Rack to rack
    • Data Center
    • Infiniband QDR, DDR and SDR
    • 40G Ethernet

    Description


    The 40G ER4 is a transceiver module designed for 40km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data. The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the Hilinktech 40Gb/s 40km QSFP+ Transceiver Hot Pluggable, Duplex LC Connector, Single mode 2 optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.


    Ordering Information
    Part NumberDescription
    HL-QSFP+ ER4QSFP+ ER4 40km optical transceiver with full real-time digital diagnostic monitoring and pull tab

    Mechanical Dimensions



    Company Information:


    Our Services:


    Guarantee
    We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. We provide 3 years warranty for all the optical transceivers from the date of shipment. All the optical transceivers have been through functional test and aging test.

    OEM/ODM order is available
    we can supply products according to your requirements, and design products label for your company.


    Related products:




    Shipping:
    International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.


    What we supply
    We supply wide range of high quality optical transceivers and passive CWDM/DWDM Mux/Demux modules. The optical modules are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc
