    Hilink 100G QSFP28 ER4 40km Fiber Optic Transceiver Module

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL- QSFP28-ER4
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 1000pcs/month
    • Product Details
    • Company Profile

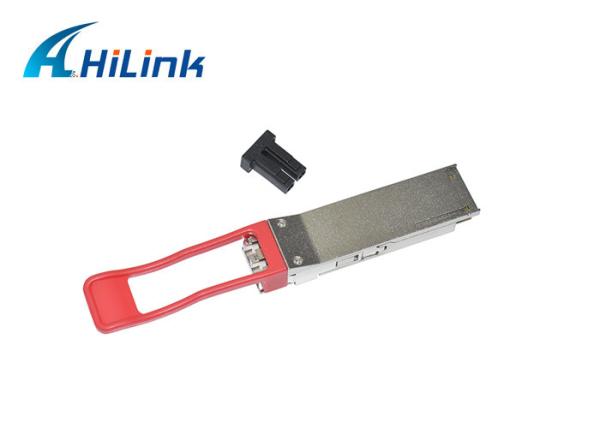

    Hilink 100G QSFP28 ER4 40km Fiber Optic Transceiver Module

    Hilink 100G QSFP28 ER4 1295~1304NM 40km Compatible with lots of brands


    This product is a 100Gb/s transceiver module designed for optical communication applications compliant to Ethernet 100GBASE-ER4 Lite standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module demultiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
    The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM EA-DFB transmitters and high sensitivity APD receivers provide superior performance for 100Gigabit Ethernet applications up to 30km links without FEC and 40km links with FEC.
    The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

    Features

    Hot pluggable QSFP28 MSA form factor
    Compliant to Ethernet 100GBASE-ER4 Lite
    Supports 103.1Gb/s aggregate bit rate
    Up to 30km reach for G.652 SMF without FEC
    Up to 40km reach for G.652 SMF with FEC
    Single +3.3V power supply
    Operating case temperature: 0~70oC
    Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
    Receiver: 4x25Gb/s APD ROSA
    4x25G electrical interface (OIF CEI-28G-VSR)
    Maximum power consumption 4.5W
    Duplex LC receptacle
    RoHS-6 compliant
    Applications
    100GBASE-ER4 Ethernet Links
    Infiniband QDR and DDR interconnects
    Client-side 100G Telecom connections


    Mechanical Dimensions



    Company Information:


    Our Services:


    OEM/ODM order is available
    we can supply products according to your requirements, and design products label for your company.

    Guarantee
    We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. We provide 3 years warranty for all the optical transceivers from the date of shipment. All the optical transceivers have been through functional test and aging test.


    Related products:






    What we supply
    We supply wide range of high quality optical transceivers and passive CWDM/DWDM Mux/Demux modules. The optical modules are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc
    Shipping:
    International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
