    CWDM Wdm Sfp Module 4+1CH CWDM MUX DEMUX FTTX ABS Single Fiber SC/APC connector

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-CW-MUX/DEMUX
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs/week
    • Product Details
    • Company Profile

    CWDM Wdm Sfp Module 4+1CH CWDM MUX DEMUX FTTX ABS Single Fiber SC/APC connector

    CWDM Module 4+1CH CWDM MUX/DEMUX FTTX ABS Single Fiber SC/APC




    Applications

    CWDM System

    PON Networks

    FTTX

    Metro ethernet

    CATV Links


    Features

    Low Insertion Loss
    Wide pass band
    High Channel Isolation
    High Stability and reliability
    Epoxy-free on Optical Path
    Access Network


    1×N CWDM Mux/Demux Module

    Parameters1x21x41x81x16
    Center Wavelength (nm)ITU, ITU+1
    Passband (nm)ITU±6.5
    Operating Wavelength (nm)1460~1620 or 1260~1620
    Channel Space (nm)20
    Fiber TypeSMF-28e or customer specified
    IL (dB) (P/A Grade)0.7/1.01.4/1.72.0/2.52.5/3.0
    Isolation (dB)Adjacent Channel30
    Non-Adjacent Channel50
    Ripple (dB)0.30.40.50.5
    PDL (dB)0.2
    PMD (ps)0.1
    RL (dB)45
    Directivity (dB)50
    Maximum Optical Power (mw)500
    Operating Temperature (°C)-40~85
    Storage Temperature (°C)-40~85
    BOX Package (mm)100*80*10140*115*18
    LGX Package1U, 2U
    19’’ Rack mount Package1U

    Compliance

    Telcordia GR-1209-CORE-2001

    RoHS


    Telcordia GR-1221-CORE-1999

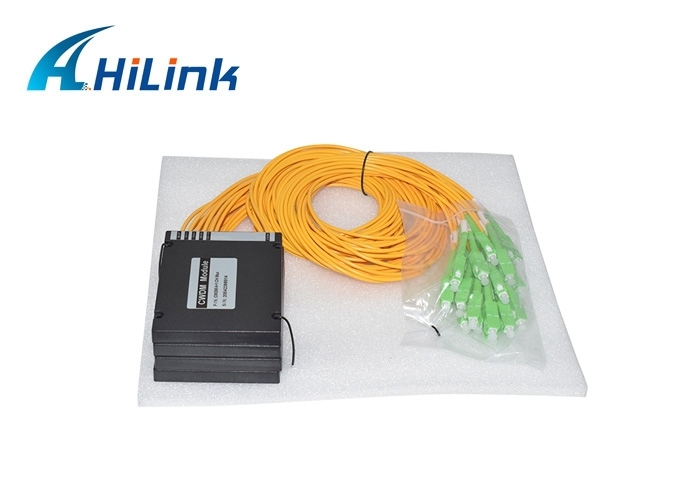

    Picture Show


    Our Services

    1.Quick response for customers' feedback and other questions.
    2. We deliver goods by international Express.

    3. Contact our sales for more details to confirm your order.

    4. Short lead time after confirmation.

    5. Guarantee:

    ›& OEM/ODM is available.

    ›& Brand new.

    ›& 3 years warranty (From the date of shipment).
    ›& 100% through quality test and aging test.

    6. After-sales service
    We have after service for 24 hours, promises to supply technical service or guide in anytime.
    Our co-workers will be response clients's requirement in 12 hours after emergency happened.
    7. Technician support:

    We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
