Steel Tube Type Fiber Optic Wdm FWDM TX1550 RX1310/1490nm CE ROHS Approval

Ask Lasest Price
Brand Name :	HILINK
Model Number :	HL-FWDM
Certification :	CE FCC Rohs
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	1000pcs/week

Add to Cart

Product Details
Company Profile

Steel Tube Type Fiber Optic Wdm FWDM TX1550 RX1310/1490nm CE ROHS Approval

Hilink Free Shipping FWDM Filter Steel Tube type TX1550 RX1310/1490nm SC APC connector

Performance Specification

Parameter			FWDM 3/45
Pass Band Wavelength Range (nm)			1260-1360
Reflection Band Wavelength Range (nm)			1480-1620
Insertion Loss (dB)		Reflect Channel	≤0.6
		Pass Channel	≤0.8
Channel Ripple(dB)			<0.3
Isolation(dB)	Reflect Channel		> 15
	Pass Channel		>30
Insertion Loss Temperature Sensitivity (dB/℃)			<0.005
Polarization Dependent Loss (dB)			<0.1
Polarization Mode Dispersion (ps)			<0.1
Directivity (dB)			>50
Return Loss (dB)			>50
Maximum Power Handling(mW)			500
Operating Temperature (℃)			0 ~+70
Storage Temperature (℃)			-40 ~+85
Package Dimension (mm)			1.Φ5.5 x L38(for 900um Loose tube or bare fiber ) 2.L90xW20xH9.5(for 2.0 mm or 3.0mm Cable)

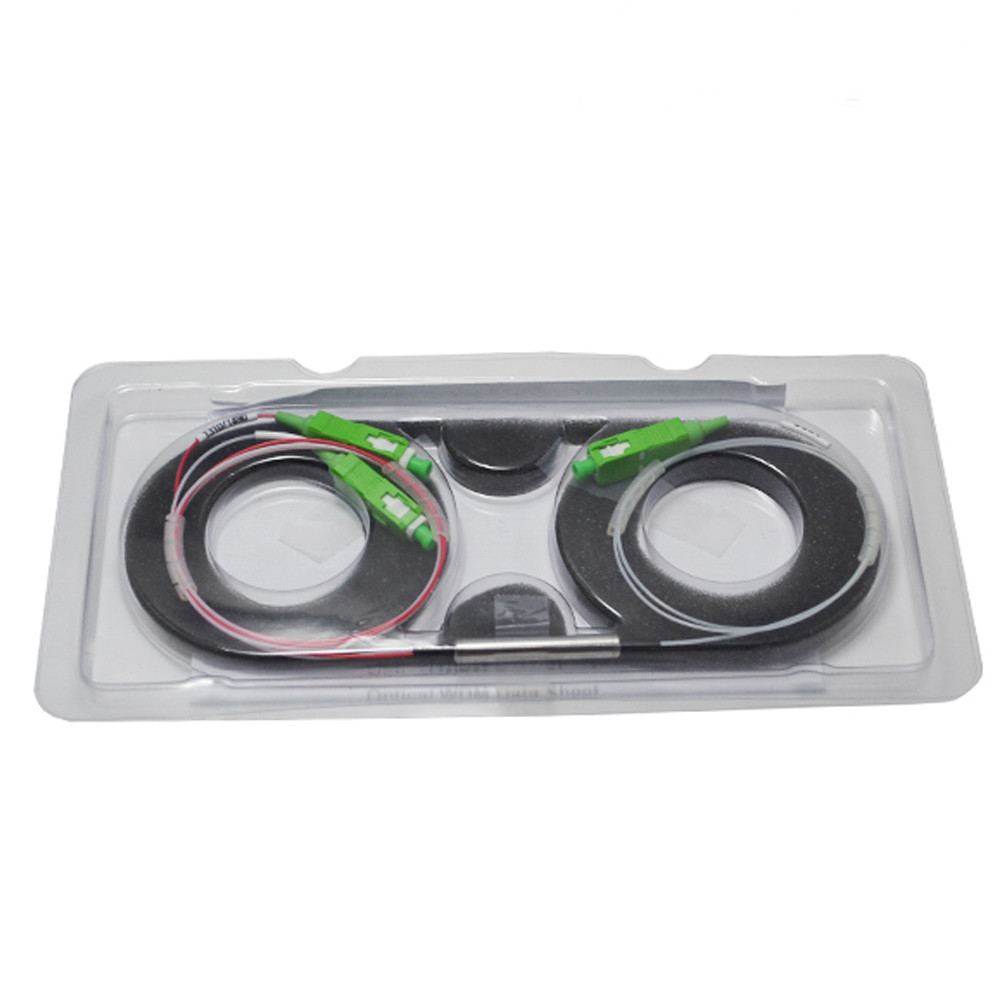

Picture Show:

FAQ:

1. Q: Do you sell second-hand products?

A: No.All our products are brand new,we never use second-hand components.

2. Q: What payment terms do you accept?
A: T/T,Paypal,Western Union are acceptable.

3. Q: What are the shipping ways can you offer?
A: Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

4. Q: Do your products come with warranty?
A: Yes,We provide 3 years warranty for all our products from the date of shipment.

5. Q: What devices can your products compatible with?
A: Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

6. Q: How to place an order?
A:1> Order details confirmed,please tell us the model and quantity you need.
2> Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3> Confirm and ship the goods, then tracking number will be sent to you promptly.
4> We will help to track your goods until you receive them safely.

Packaging & Shipping

Packaging

We provide safe and reliable packaging: Static bag, Plastic bag, Retail box or by required

Delivery time:1-5 working days

Shipment

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 1-5 days.
