    16 Channels Passive DWDM Mux Demux Modules C Band Single Mode Media Hilinksy

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-DW-XXXX
    Certification : CE FCC Rohs
    Price : Negotiable
    • Product Details
    • Company Profile

    16 Channels Passive DWDM Mux Demux Modules C Band Single Mode Media Hilinksy

    100GHZ 16 Channel DWDM 1U Rackmounted Chassis DWDM MUX/DEMUX LC/APC


    Geneal Features

    • 16 channel DWDM with both a multiplexer and demultiplexer in unit
    • Easy to install, requires no configuration
    • Environmentally friendly product, completely passive, no power and no cooling required for operation!
    • Standalone, no other equipment required
    • To be used in 2 fiber strand and simplex strand
    • Can be connected to any fiber type
    • Low insertion loss - high isolation
    • Disassembles easily for cleaning
    • Fully Universal, bidirectional operation on any port
    • Fully transparent at all data rates and protocols
    • High reliability, MTBF of 100 years
    • Telcordia/Bellcore GR-1209 and GR-1221 qualified
    • Accepts any data rate and any protocol on any port up to 10 Gbps, also 40 Gbps (DPSK, DQPSK) and 100 Gbps (DP-QPSK)
    • Optional 1310nm window can be seamlessly integrated

    Application

    • Any equipment using 200 GHz or 100 GHz ITU-T transceivers.
    • With optional 1310 window, any equipment using 1310nm transceivers.
    • SONET OC-3 to OC-192, SDH STM-1 to STM-64, GBIC, SFP, XFP, Xenpak, Ethernet over fiber, ATM over fiber etc...

    Compliance

    Telcordia GR-1209-CORE-2001

    Telcordia GR-1221-CORE-1999

    ITU-T G.694.1

    RoHS


    1xN DWDM Mux/Demux Module

    Parameters
    Channel Space (GHz)100200
    Channel Number1*41*81*161*41*81*16
    Center Wavelength (nm)ITU Grid
    Center Wavelength Accuracy (nm)± 0.05± 0.1
    Channel Passband (@-0.5dB) (nm)0.220.5
    Fiber TypeSMF-28e with 900um loose tube or customer specified
    IL (dB)11.52.21.72.93.8
    Passband Ripple (dB)0.350.40.50.350.40.5
    Isolation (dB)Adjacent Channel2528
    Non-Adjacent Channel40
    PDL (dB)0.2
    PMD (ps)0.1
    RL (dB)45
    Directivity (dB)50
    Maximum Optical Power (mw)500
    Operating Temperature (°C)-40~85
    Storage Temperature (°C)-40~85
    BOX Package (mm)100*80*10 or 140*115*18
    LGX Package1U,2U
    19’’ Rack mount Package1U

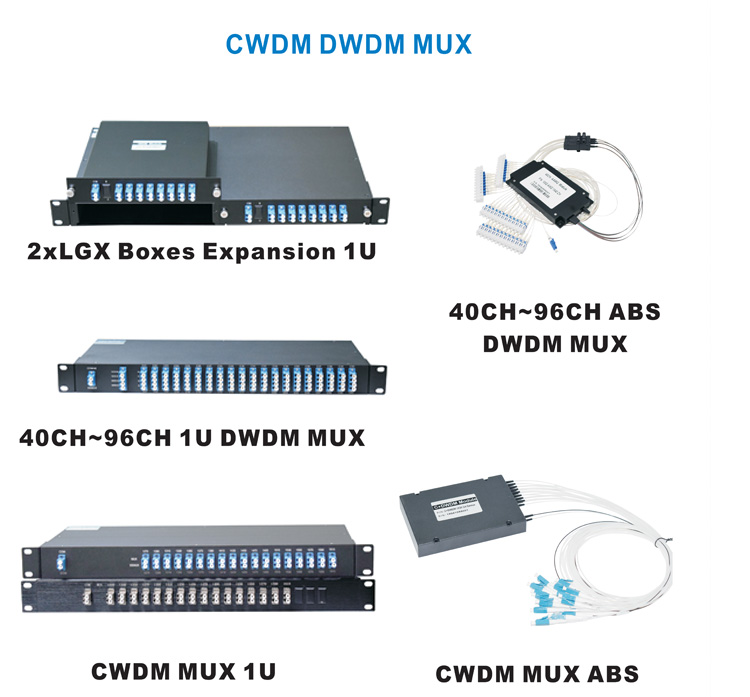

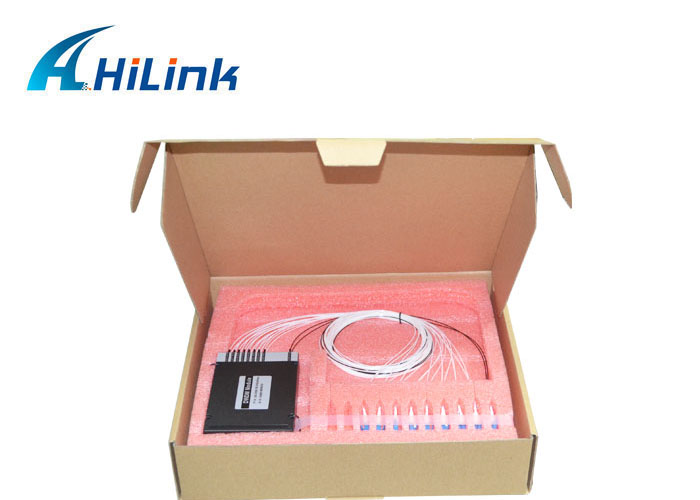

    Products show
