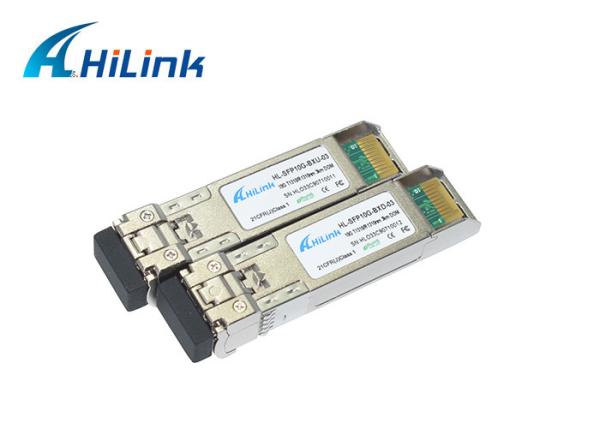

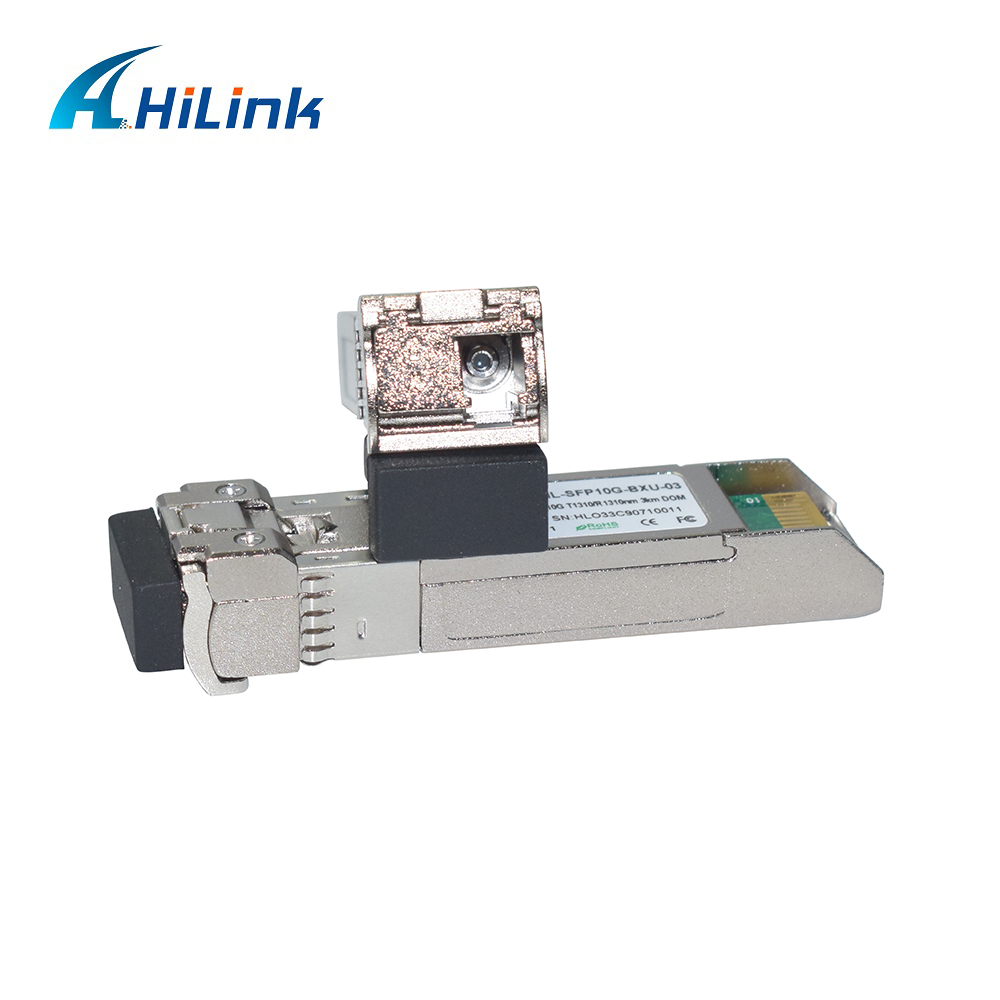

Wdm 3km 10G BIDI SFP+ Bi-Directional Transceiver 1310/1310nm single fiber optical product

Product Features

• Supports 9.95 to 10.3Gb/s bit rates
• Simplex LC Connector
• Hot pluggable SFP+ footprint
• Uncooled 1310nm LD transmitter, 1310nm PIN photo-detector
• Applicable for 3km SMF connection
• Low power consumption, < 1.0W
• Digital Diagnostic Monitor Interface
• Optical interface compliant to IEEE 802.3ae 10GBASE-LR
• Electrical interface compliant to SFF-8431
• Operating case temperature:Commerical:0 to 70 °C

Applications

1. 10GBASE-LR at 10.3125Gbps
2. 10GBASE-LW at 9.953Gbps
3. Other optical link

Product Descriptions

Olinkphotonics’OLSB311XL-CD03 series single mode transceiver is small form factor pluggable module for optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability. The OLSB311XL-CD03 module is designed for single mode fiber and operates at a nominal wavelength 1310nm; The transmitter section meet the class 1 laser compliant according to International Safety Standard IEC-60825.The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions for telecommunication.
