    1490nm Wavelength Sfp Optical Transceiver Module 10Gb/S CWDM 100km Distance

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL- CW-SFP+XX
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 1000pcs/month
    • Product Details
    • Company Profile

    1490nm Wavelength Sfp Optical Transceiver Module 10Gb/S CWDM 100km Distance

    Optical Transceiver 10Gb/s SFP+ CWDM 1490nm 100km Optical Transceiver Module


    Features

    ♦ Up to 11.3Gb/s data links
    ♦ CWDM EML transmitter and APD receiver
    ♦Up to 100km on 9/125µm SMF
    ♦Hot-pluggable SFP+ footprint
    ♦Duplex LC/UPC type pluggable optical interface
    ♦RoHS compliant and lead-free
    ♦Support Digital Diagnostic Monitoring interface
    ♦Single +3.3V power supply
    ♦Compliant with SFF+MSA and SFF-8472
    ♦Metal enclosure, for lower EMI
    ♦Meet ESD requirements, resist 8KV direct contact voltage
    ♦Case operating temperature
    ♦Commercial: 0 ~ +70oC
    ♦Extended: -10 ~ +80oC
    ♦Industrial: -40 ~ +85oC


    Applications

    ♦ 10GBASE-ZR/ZW & 10G Ethernet

    ♦ SDH STM64

    ♦Other Optical Links


    Technical specifications

    Item

    Description

    Transceiver form factorSFP+
    Transmission speed10GE
    Center wavelength (nm)1490
    Standards compliance10G-CWDM
    Connector typeLC
    Applicable cable and maximum transmission distanceSingle-mode fiber: 100 km
    Transmit power (dBm)0 to 4.0
    Maximum receiver sensitivity (dBm)-26.0
    Overload power (dBm)-7.0
    Extinction ratio (dB)8.2
    Operating temperature0°C to 70°C (32°F to 158°F)
    Part numberHL-CWS49-ZR100

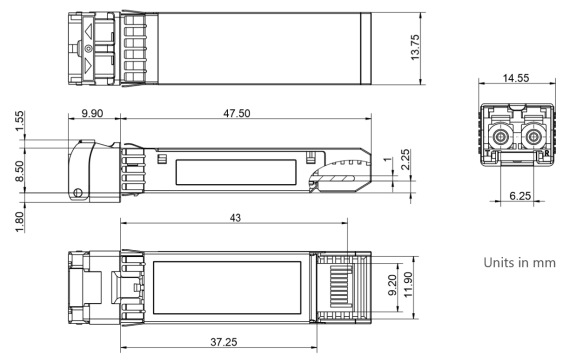

    Mechanical Dimensions



    Electrical Characteristics


    Optical Characteristics

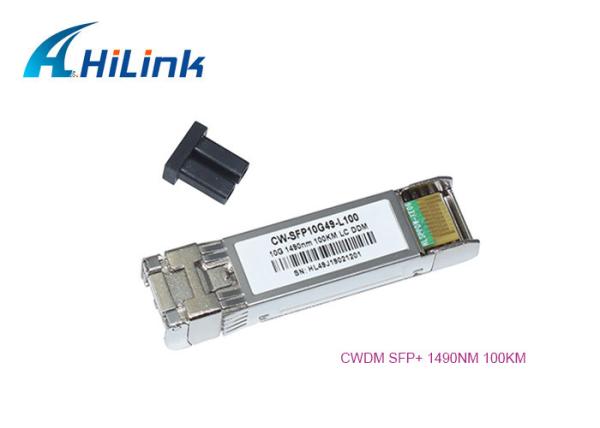

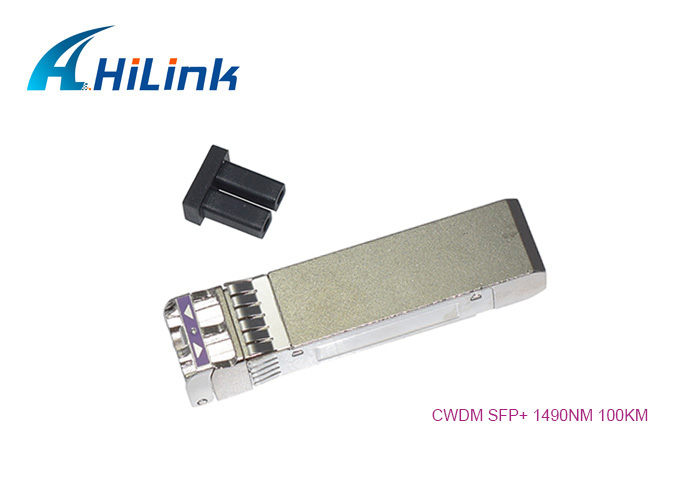

    Real Photo Show


    Guarantee
    We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.


    What we supply

    We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, QSFP, SFP28, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with Mikrotik, Ciena, H3C, HP, Extreme, Foundry, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel,etc.


    OEM and ODM

    OEM/ODM order is available.
