    10G 1290nm SFP Transceiver Module CWDM SFP+ 40KM Optical With LC Connector

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL- CW-SFP+
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 1000pcs/month
    • Product Details
    • Company Profile

    10G 1290nm SFP Transceiver Module CWDM SFP+ 40KM Optical With LC Connector

    10G 1290nm CWDM SFP+ 40KM Optical Transceiver Module with LC Connector


    Features

    ♦ Compliant with SFF-8431,SFF-8432 and IEE802.3ae

    ♦ 10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.

    ♦ Wavelength selectable to ITU-T standards covering CWDM grid wavelengths

    ♦ Cooled EML transmitter and PIN receiver

    ♦ link length up to 40km

    ♦ Low Power Dissipation 1.5W Maximum

    ♦ -5ºC to 70ºC Operating Case Temperature

    ♦ Single 3.3V power supply

    ♦ Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power

    ♦ RoHS compliant and lead free


    Applications

    10GBASE-ER (with/without FEC)

    ♦ 10G Fiber Channel (with/without FEC)


    Description

    SFP+ER CWDM Transceiver is a “Limiting module”, designed for 10GBASE-ER, and 2G/4G/ 8G/10G Fiber- Channel applications.

    The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements.

    Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

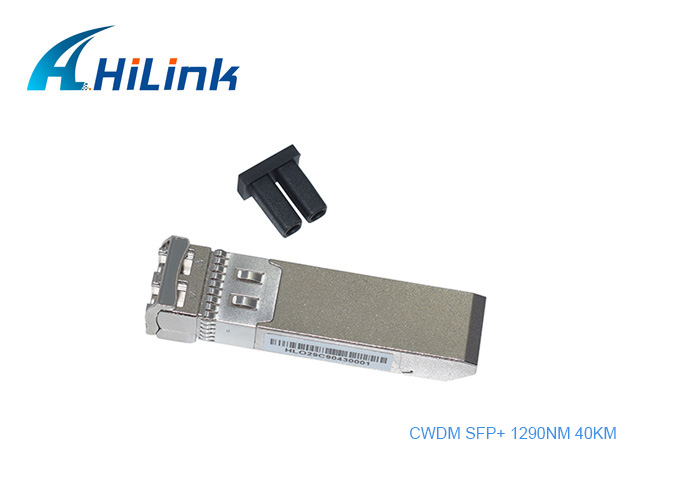

    Real Photo Show



    OEM and ODM

    OEM/ODM order is available.


    Guarantee
    We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.


    What we supply

    We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with Mikrotik, Ciena, H3C, HP, Extreme, Foundry, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel,etc.


    Company Information



    As we have vairous kinds of products,if you can't find the correct item you need,plsease send us inquiry.We will follow up shortly.
