    Optical Fiber 10G CWDM SFP Transceiver Module Transmission Dual Fiber 1510nm 100km

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL- CW-SFP+
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 1000pcs/month
    • Product Details
    • Company Profile

    Optical Fiber 10G CWDM SFP Transceiver Module Transmission Dual Fiber 1510nm 100km

    Optical fiber 10G CWDM SFP+ transmission dual fiber module 1510nm 100km


    Features

    Up to 11.3Gb/s data links
    CWDM EML transmitter and APD receiver
    Up to 100km on 9/125µm SMF
    Hot-pluggable SFP+ footprint
    Duplex LC/UPC type pluggable optical interface
    RoHS compliant and lead-free
    Support Digital Diagnostic Monitoring interface
    Single +3.3V power supply
    Compliant with SFF+MSA and SFF-8472
    Metal enclosure, for lower EMI
    Meet ESD requirements, resist 8KV direct contact voltage
    Case operating temperature
    Commercial: 0 ~ +70oC
    Extended: -10 ~ +80oC
    Industrial: -40 ~ +85oC
    Applications
    10GBASE-ZR/ZW & 10G Ethernet
    SDH STM64
    Other Optical Links

    Part Number Ordering Information


    Part NumberData Rate (Gb/s)Wavelength (nm)Transmission Distance(km)Temperature (oC) (Operating Case)
    HLSC-ALxxW1C10.3125Refer to wavelength selection100km SMF0~70 commercial
    HLSC-ALxxW1E10.3125Refer to wavelength selection100km SMF-10~80 Extended
    HLSC-ALxxW1I10.3125Refer to wavelength selection100km SMF-40~85 Industrial

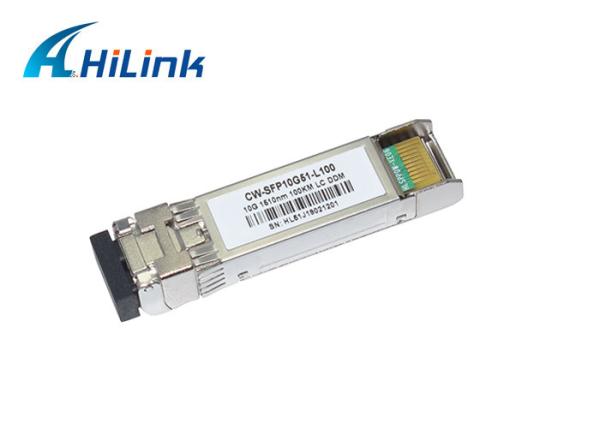

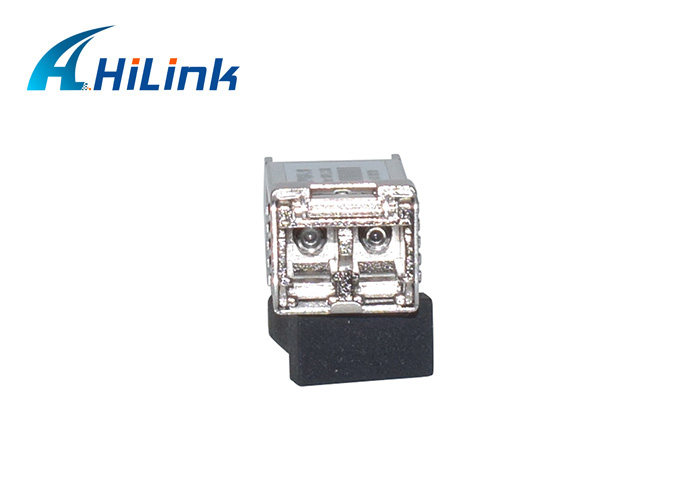

    True photo show


    Company Information:




    Shipping:


    International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.


    Our Services:


    OEM/ODM order is available
    we can supply products according to your requirements, and design products label for your company.
    Guarantee
    We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
    What we supply
    We supply wide range of high quality optical transceivers and passive CWDM/DWDM Mux/Demux modules. The optical modules are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.
