    100G LR1 QSFP28 Single Lambda Optical Transceiver Module 1310nm 10km LC For Data Center

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL- 100G - QSFP-LR1
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10pcs/Week
    Delivery Time : 2-7 working days
    • Product Details
    • Company Profile

    100G LR1 QSFP28 Single Lambda Optical Transceiver Module 1310nm 10km LC For Data Center

    100GBASE-LR QSFP28 Single Lambda 100G LR1 1310nm 10km LC for Data Center


    Kindly Remind :

    Tell us your needed compatibility !


    Our products are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.


    The 100GBASE-LR1 Single Lambda QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors.


    FEATURES & BENEFITS :

    • • Compliant with QSFP28 MSA

      • Compliant with SWDM MSA

      • Compliant with IEEE802.3bm CAUI-4

      • Hot-pluggable QSFP28 form factor

      • 4x25Gb/s 850mm VCSEL-based transmitter

      • Supports 103.1Gbps aggregate bit rate

      • Power dissipation<3.5W

      • Case temperature range of 0°C to 70°C

      • Duplex LC receptacles

      • CAUI-4 electrical interface

      • RoHS compliant


    APPLICATION :

    • • 100G Ethernet over Duplex SMF
    ParameterSymbolMinTypMaxUnitsNotes
    Operating Case TemperatureTC0-+70°C
    Power Supply VoltageVCC3.143.33.46V
    Data rate103.125112Gb/s

    QSFP SERIES :


    QSFPNominal Wavelength (nm)Cable TypeCore Size (Microns)Modal Bandwidth (MHz*km)*3Cable Distance*1Power Consumption (W)Pull Tab Color
    QSFP-100G-SR4-S850MMF

    50.0

    50.0

    2000 (OM3)

    4700 (OM4)

    70m

    100m

    3.5Beige
    QSFP-100G-LR4-S1295, 1300, 1304, 1309SMFG.652-10km3.5Blue
    QSFP-100G-CWDM4-S1271, 1291, 1311, 1331SMFG.652-2km3.5Green
    QSFP-100G-PSM4-S1310SMFG.652-500m3.5Orange
    QSFP-100G-SM-SR1271, 1291, 1311, 1331SMFG.652-2km3.5Green

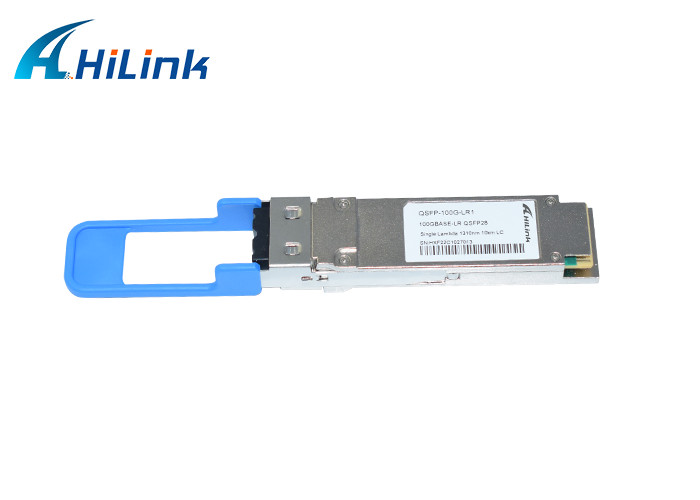

    PRODUCT PICTURE:

    100G LR1 QSFP28 Single Lambda Optical Transceiver Module 1310nm 10km LC For Data Center100G LR1 QSFP28 Single Lambda Optical Transceiver Module 1310nm 10km LC For Data Center
