10G BIDI 20KM Bidirection SFP+ WDM 20KM 10 LR SMF 1270nm/1330nm LC
DOM
General
1.HLSBxx1XL-CD20 series single mode transceiver is small form factor
pluggable module for optical data communications such as
10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin
connector to allow hot plug capability.
2.The HLSBxx1XL-CD10 module is designed for single mode fiber and operates at
a nominal wavelength of 1270nm or 1330nm; The transmitter section uses a multiple quantum well DFB,
which is class 1 laser compliant according to International Safety
Standard IEC-60825.
3.The receiver section uses an integrated InGaAs detector
preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The transceiver designs
are optimized for high perform -ance and cost effective to supply customers the best solutions for
telecommunication.
Features
1.Supports 9.95 to 10.3Gb/s bit rates
2.Simplex LC Connector
3.Hot pluggable SFP+ footprint
4.Uncooled 1270nm DFB transmitter, 1330nm PIN photo-detector
5.Uncooled 1330nm DFB transmitter, 1270nm PIN photo-detector
6.Applicable for 10km SMF connection
7.Low power consumption, < 1W
Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 80 °C
Application
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other Optical Links
BIDI(WDM) SFP Transceivers
| 10G SFP BiDi | SFP+ BiDi 1270 20km | SFP+ BiDi 20km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 20km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC |
| SFP+ BiDi 1270 40km | SFP+ BiDi 40km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 40km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC |
| SFP+ BiDi 1270 60km | SFP+ BiDi 60km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 60km | SFP+ BiDi 60km Tx1330nm/Rx1270nm LC |
| SFP+ BiDi 1490 80km | SFP+ BiDi 80km Tx1490nm/Rx1550nm LC |
| SFP+ BiDi 1550 80km | SFP+ BiDi 80km Tx1550nm/Rx1490nm LC |

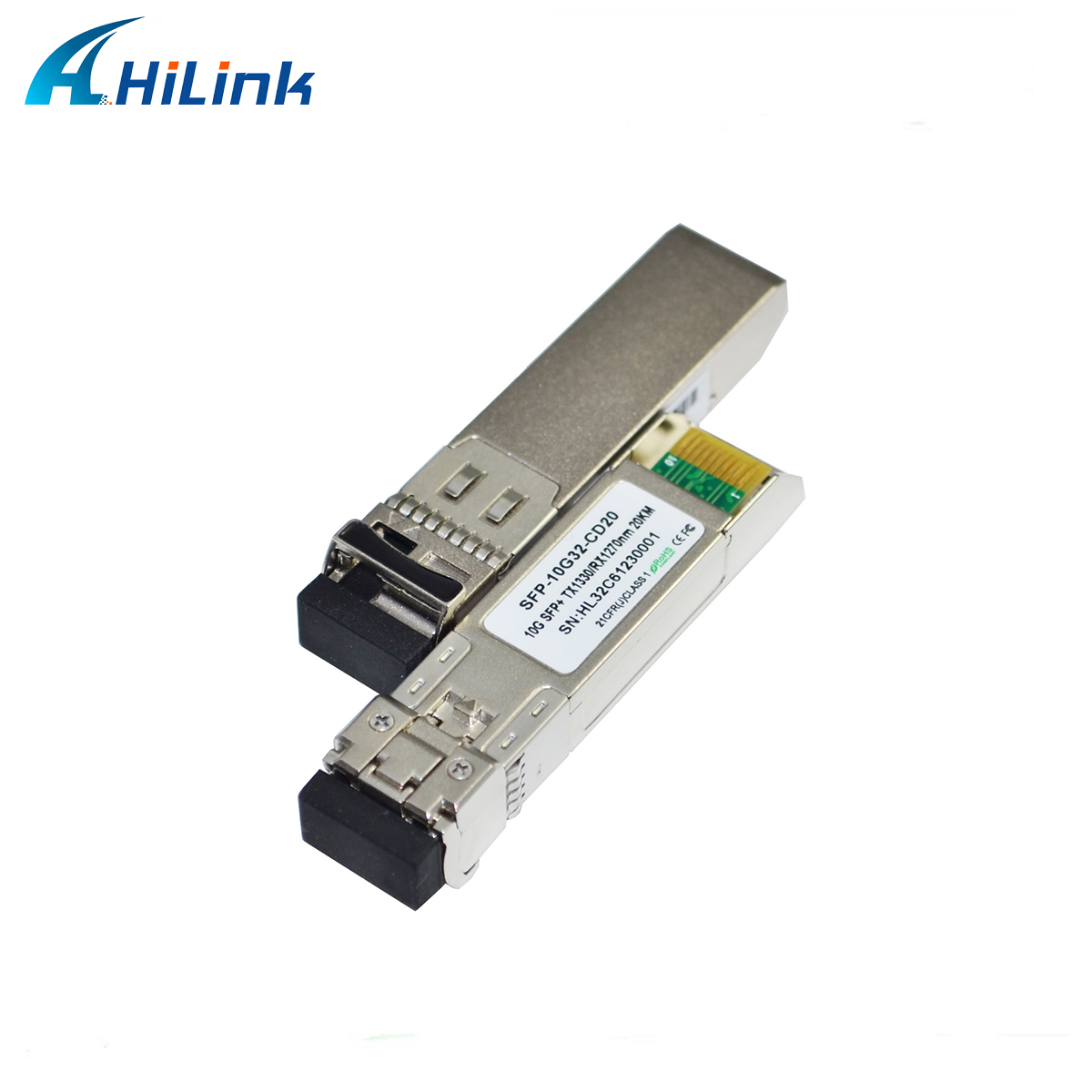

Product Picture
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter |
| Operating Wavelength | λ | 1260 | 1270 | 1280 | nm | |
| 1320 | 1330 | 1340 | |
| Ave. output power (Enabled) | PAVE | -3 | | +3 | dBm | 1 |
| Side-Mode Suppression Ratio | SMSR | 30 | | | dB | |
| Extinction Ratio | ER | 4.5 | | | dB | |
| RMS spectral width | Δλ | | | 1 | nm | |
| Rise/Fall time (20%~80%) | Tr/Tf | | | 50 | ps | |
| Dispersion penalty | TDP | | | 3.2 | dB | |
| Relative Intensity Noise | RIN | | | -128 | dB/Hz | |
| Output Optical Eye | Compliant with IEEE 0802.3ae |
| Receiver |
| Operating Wavelength | λ | 1320 | 1330 | 1340 | nm | |
| 1260 | 1270 | 1280 | |
| Receiver Sensitivity(ER=4.5) | PSEN1 | | | -12.6 | dBm | 2 |
| Receiver Sensitivity(ER=6) | PSEN2 | | | -14.4 | dBm | 2 |
| Average Receive Power | PAVE | | | 0.5 | dBm | |
| Receiver Reflectance | Rrx | | | -12 | dB | |
| LOS Assert | Pa | -30 | | | dBm | |
| LOS De-assert | Pd | | | -17 | dBm | |
| LOS Hysteresis | Pd-Pa | 0.5 | | | dB | |
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER; BER<10-12; 231 – 1 PRBS.
