Ethernet Bidirectional Converter Dual Fiber To Single Fiber Working For 40G/100G LR ER ZR

Ask Lasest Price
Brand Name :	Hilink
Model Number :	HL-CVR-DF-SF
Certification :	CE FCC Rohs
Price :	Negotiation
Payment Terms :	T/T, Western Union, MoneyGram,Paypal
Supply Ability :	200PCS/month

Add to Cart

Product Details
Company Profile

Ethernet Bidirectional Converter Dual Fiber To Single Fiber Working For 40G/100G LR ER ZR

Ethernet Bidirectional Converter Dual fiber to Single fiber Working for 40G/100G LR ER ZR

Product Description

With the increase of 100G data transmission with large bandwidth, optical fiber resources between data centers are becoming less and less. How to reuse existing optical fibers can save considerable costs for enterprises.

Hilink provides 100G dual-port to single-port converter for bidirectional transmission of 100GLR4/ER4 optical modules over one core fiber, enabling multiple 100G services using the existing dual-core fiber.

Features

* Supports 40G/100G LR4, ER4, ZR4, dual fiber to single fiber

* Operation wave 1310nm
* LC Connector
* Passive device, Low Insertion Loss

Specifications

Wavelength	131 0nm	Rate	40G/100G
Insertion Loss	≤1dB	Technology	TFF (Thin Film Filter)
Line Insertion Loss	≤2.0dB	Isolation	≥35dB
Polarization Dependent Loss	≤0.1ps	Return Loss	≥45dB
TDL (dB)	≤0.1 5dB	PMD (ps)	≤0.055nm
Return Loss	≥45dB	Directivity	≥45dB
Power handling	≤500mW	Fiber Type	SMF- 28e
Connector	LC, SC, FC (UPC/APC)	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Net Weight	LGX BOX :0.5KG 4Slot 1U Rack: 2.5KG	Dimensions	LGX BOX 214 51 5020mm (HxWxD) 4Slot 1U Rack 444401 60mm

Dual fiber 100G transceiver in single fiber transmission application

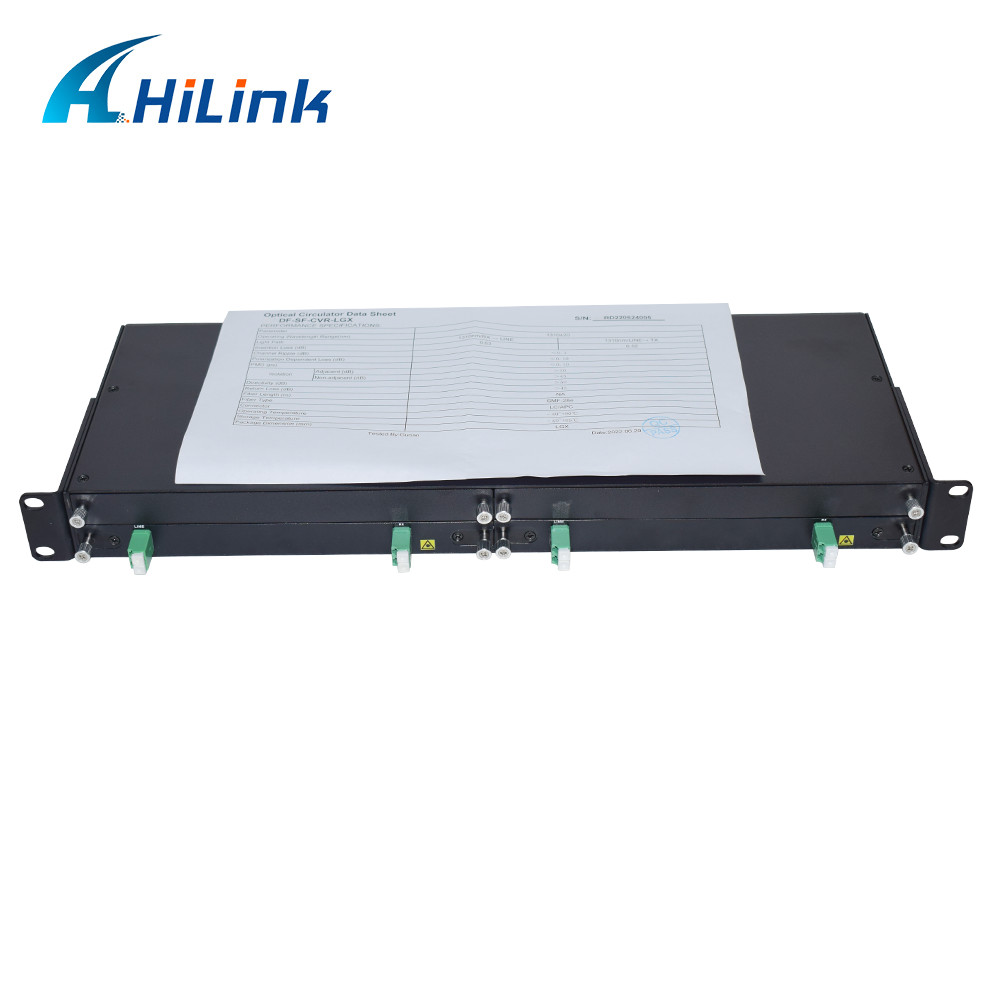

Details Images

Ethernet Bidirectional Converter Dual Fiber To Single Fiber Working For 40G/100G LR ER ZR

Hilink Advantages

1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
