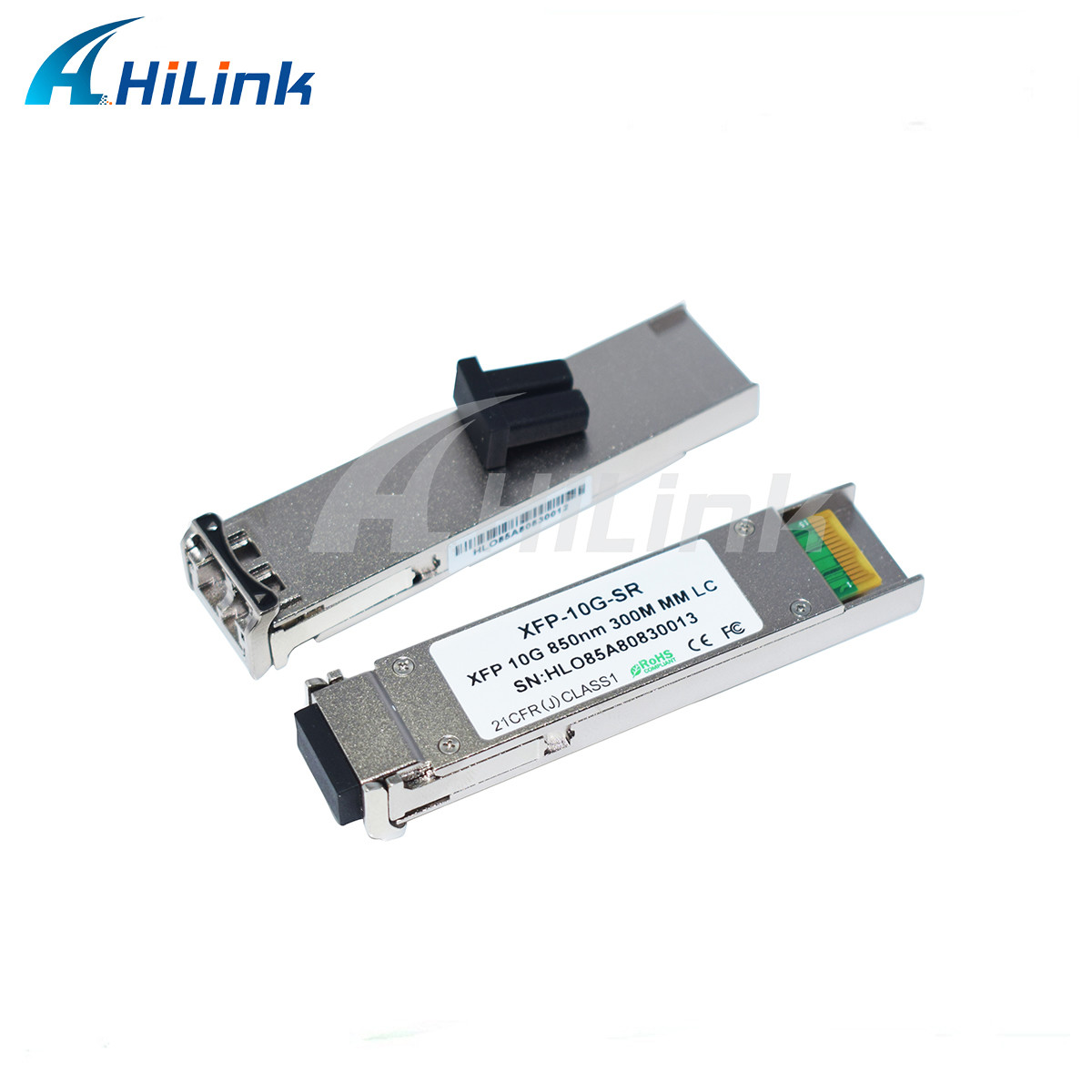

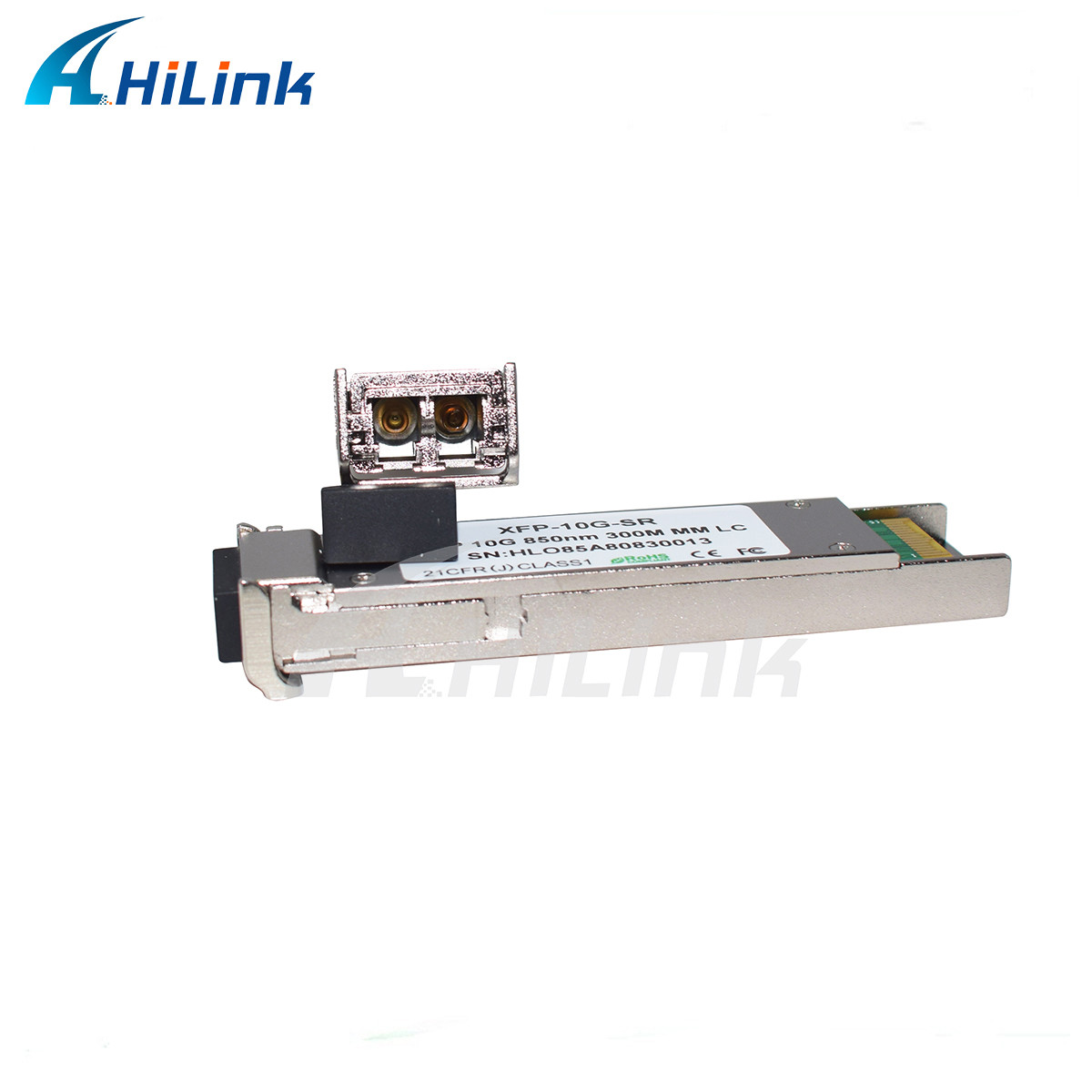

XFP MMF 850nm SR 300m Reach Dual LC Optical Fiber Equipment
Hilink’s XFP SR transceivers are designed for 10G Ethernet 10G, and it can support
data-rate from 9.953Gb/s to 11.3Gb/s.Digital diagnostics are avail-able via I2C interface as specified in the XFP MSA.The transceiver designs are optimized
for high per-formance and cost effective to supply customers the best solutions for data-com and telecom
applications.
Features
Supports 9.95 to 11.3Gb/s bit rates
Simplex LC Connector
Hot-pluggable XFP footprint
Distance up to 300m MMF connection
Low power consumption
Digital Diagnostic Monitor Interface
Electrical interface compliant to SFF-8431
Operating case temperature: Commerical:0 to 70 °C
Specifications
| Item No. | HL-XFP-SR | Vendor Name | Hilink |
| Form Type | XFP | Max Data Rate | 11.3Gb/s |
| Wavelength | 850nm | Max Cable Distance | 300m |
| Interface | LC Duplex | Optical Components | Vcsel |
| Cable Type | SMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
| Parameter | Symbol | Unit | Min | Typ | Max |
| Transmitter |
| Center Wavelength | λ | nm | 840 | | 860 |
| Average Output Power | Pave | dBm | -8.2 | | -1 |
| Average Output Power of Off Transmitter | Poff | dBm | -30 | | |
| Extinction Ratio | ER | dB | 6.0 | | |
| Side Mode Suppression Ratio | SMSR | dB | 30 | | |
RMS spectral width | Δλ | nm | | | 1 |
| Rise/Fall Time(20-80%) | Tr/Tf | ps | | | 45 |
| Optical Modulation Amplitude | OMA | dBm | -5.2 | | |
| Dispersion penalty | | dB | | | 1 |
| Receiver |
Center Wavelength | λC | nm | 840 | | 860 |
| Receiver Sensitivity | PSEN1 | dBm | | | -9.9 |
| Receiver Overload | Pave | dBm | -1 | | |
| LOS Assert | Pa | dBm | -25 | | |
| LOS De-Assert LOS | Pd | dBm | | | -15 |
| LOS Hysteresis | Pd-Pa | dB | 0.5 | | |
| Optical Return Loss | | dB | 14 | | |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link,
Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie,
Zyxel, etc.
Applications
10GBASE Ethernet
Switches & Routers
SONET & SDH
Other optical links
Hilink Advantages
1. Hilink ,a professional manufacturer established in
2007,Specialize in optical network communications with over 10
years experience.
2." Credit is the basis, quality is the first",all our products are
new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei,
Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel,
Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products
from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi
SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece
is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we
normally keeping in stock;
For large quantity, you'll get support and details from your sales
representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The
arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or
refund.
