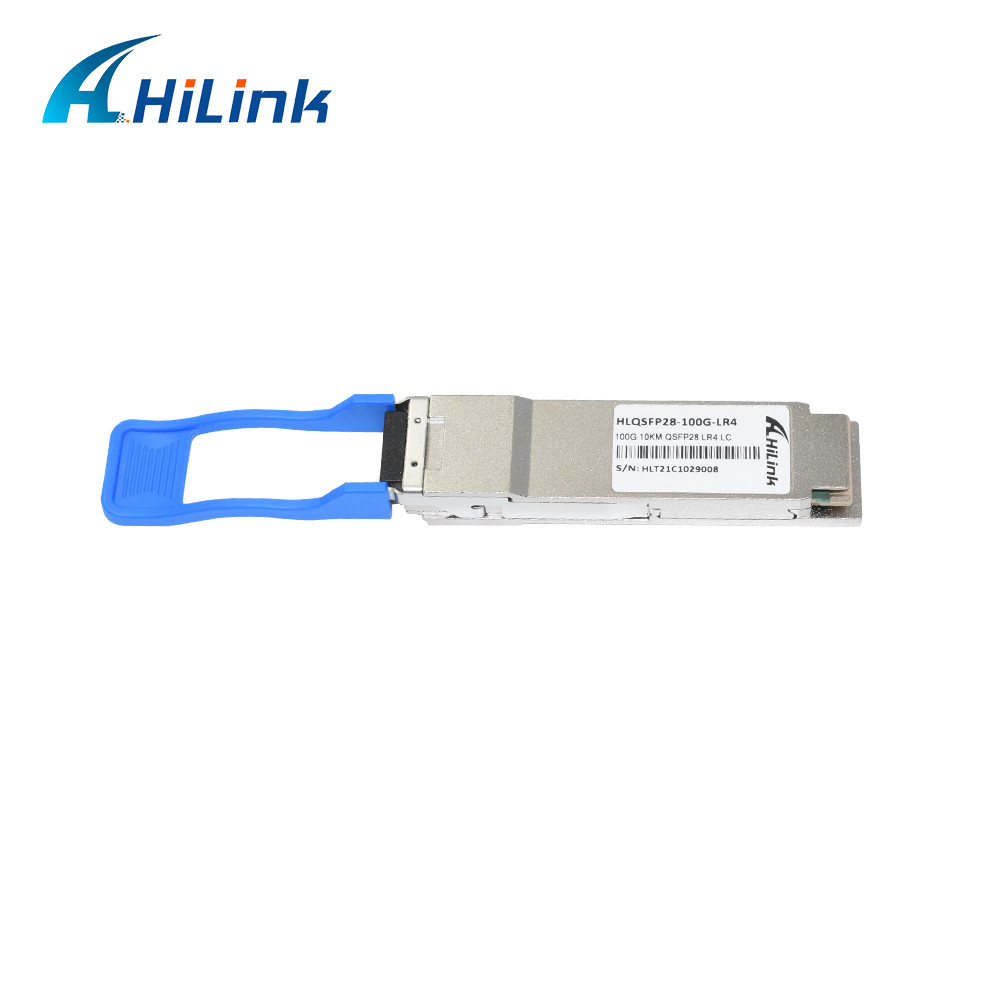

Low Price QSFP28 100G LR4 LAN-WDM 4*25G Channels 1310nm SMF Dual LC 10KM Optical Transceiver

The Hilink’s 100G QSFP28 LR4 is a 4x25G single-mode fiber, hot pluggable optical transceiver. It enables the integration of 4 transmitters, 4 receivers and an optical MUX/ DeMUX into a small form factor package that delivers up to 112 Gbps data link in a compact QSFP28 footprint.

The optical connectivity is based on two Singlemode Fiber (SMF) LC connectors, one for Tx and one for Rx. The Tx and Rx each consist of 4 25GB/s LAN-WDM channels, whose wavelengths are in the 1300nm range. The QSFP28 LR4 transceiver is designed for applications with a reach up to 10Km.

The Hilink’s QSFP28 transceiver is based on PLC technology, using surface mounted optoelectronic devices with no free space elements. The unique design of the optical engine facilitates unparalleled compactness while maintaining Telcordia robustness.

Features

• Compliant with the QSFP28 MSA Technical Specifications
• Supports operation for a data rate of103.1Gb/s
• Maximum link length of 10km on Single Mode Fiber (SMF)
• Optical specifications are compliant with IEEE802.3ba 100GBASE-LR4
• Low speed electrical signal is compliantwith SFF-8679
• High speed electrical signal is compliant with 802.3bm CAUI-4
• Digital diagnostic functions are available via the I2C interface, as specified by SFF-8636
• 4x25Gb/s DFB-based LAN-WDM transmitter with central wavelengths of 4 channels 1295.56,1300.05, 1304.58 and 1309.14 nm
• Supports operation for a case temperature of 0°C to +70°C
• Duplex LC receptacles
• Power Dissipation < 4.0W
• Single 3.3V Power Supply
• RoHS Compliant

Applications

• 100GBASE-LR4 Ethernet links

Compatibility

Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
