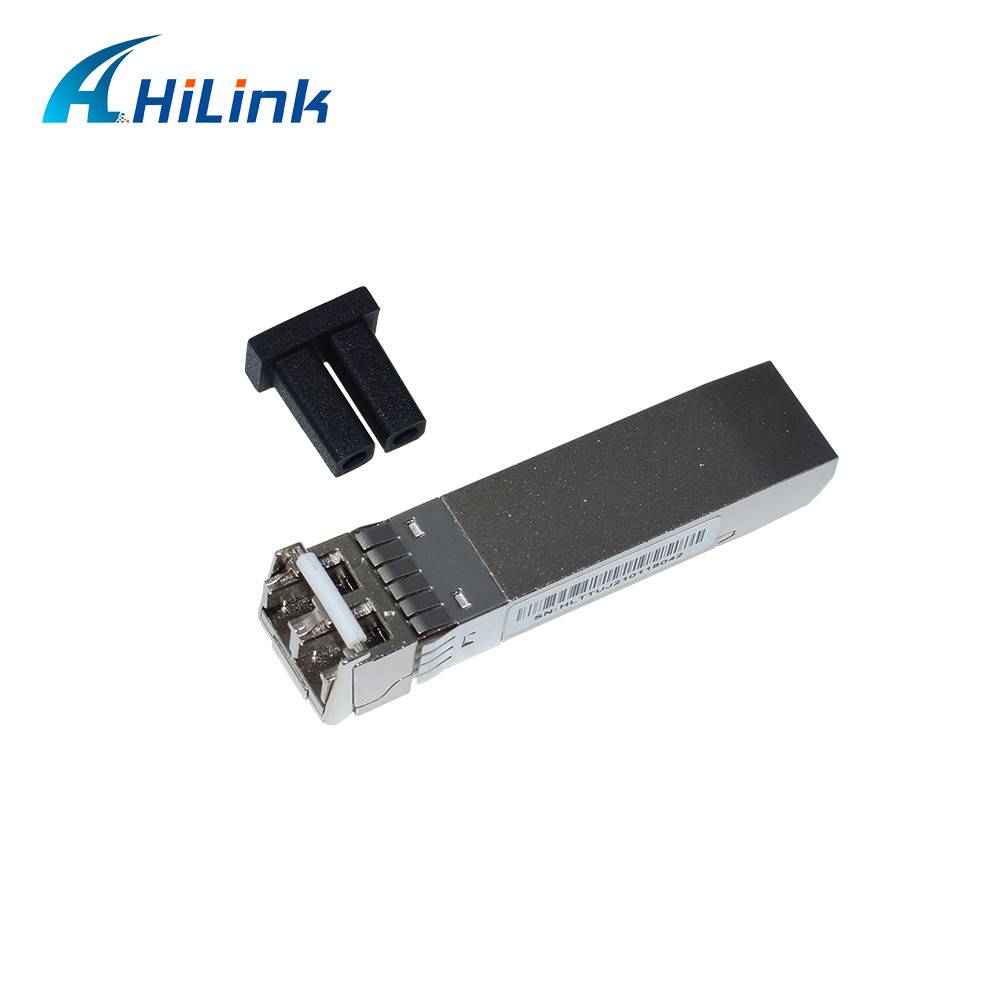

C-Band 50GHZ Tunable DWDM SFP+ 10GBASE Optical Module 80KM
Transmission Transceiver
Hilink C-band Tunable SFP+ transceivers are designed for use in 1Gbps to
11.3Gbps multi-rate 50GHz/100GHz DWDM links up to 80km of G.652
single mode fiber.
Compatible with multiple network applications and transmission
formats: CPRI, OTN, Fibre Channel, etc. Hot pluggable, and with
narrow band tunability, it significantly reduces sparing and
configuring costs in optical networks.
The module is optimised for Local Area Networks (LAN), Mobile
Fronthaul and 10G Ethernet (10GbE), over single-mode fibre (SMF)
optical links, P2P and passive networks. Optional G.Metro feature
enables wavelength auto-tuning over Fibre. Digital Optical
Monitoring interfaces are provided via the SFP+ standards compliant
I2C interface.
Features
- Hot-pluggable SFP+ form factor
- Supports 9.95 to 11.3Gbps data rate
- 50GHz/100GHz ITU channel spacing (C-Band)
- Duplex LC connector
- Maximum link length of 80km
- C-band-tunable laser and high-performance APD photo-detector
- Single 3.3V power supply
- Power dissipation < 2.3W with CDR for Industrial temperature
- Built-in digital diagnostic functions
- RoHS 2.0 compliant (2011/65/EU, lead free)
- Case temperature range: Commercial 0~70℃ / Industrial -40~85℃
optional
Specifications & Parameters
| Item No. | DW-SFP10GX-80-T | Vendor Name | Hilink |
| Form Type | SFP+ | Max Data Rate | 10Gbps |
| Wavelength | DWDM CH17-CH61 | Max Cable Distance | 80KM |
| Interface | LC duplex | Optical Components | EML DWDM |
| Cable Type | SMF | DOM Support | Yes |
| TX Power | -2~4dBm | Receiver Sensitivity | <-21dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Transmit Characteristics
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Optical Wavelength-End Of Life | λ | X-100 | X | X+100 | pm |
| Optical Wavelength-Beginning Of Life | λ | X-25 | X | X+25 | pm |
| Average Optical Power | Pavg | 0 | | +5 | dBm |
| Laser Off Power | Poff | | | -30 | dBm |
| Extinction Ratio | ER | 6 | | | dB |
| Transmitter Dispersion Penalty | TDP | | | 3.0 | dB |
| Relative Intensity Noise | Rin | | | -128 | dB/Hz |
| Optical Return Loss Tolerance | | 20 | | | dB |
Receive Characteristics
| Parameter | Symbol | Min | Typ. | Max | Unit |
| Center Wavelength | λr | 1480 | | 1565 | nm |
| Receiver Sensitivity | Sen | | | -23 | dBm |
| Los Assert | LOSa | -40 | | - | dBm |
| Los Dessert | LOSd | | | -24 | dBm |
| Los Hysteresis | LOSh | 0.5 | | | dB |
| Overload | Sat | -7 | | | dBm |
| Receiver Reflectance | Rrx | | | -12 | dB |
