    High Reliability 1*16 PLC Splitter Module Wide Operation Wavelength 3.0mm ABS Box

    Ask Lasest Price
    Brand Name : Hilink
    Model Number : 1*16 PLC splitter
    Certification : CE Rohs
    Price : Need to negotiate
    Payment Terms : T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance
    Supply Ability : 2000 Pieces/Week
    Delivery Time : 5-8 working day
    • Product Details
    • Company Profile

    High Reliability 1*16 PLC Splitter Module Wide Operation Wavelength 3.0mm ABS Box

    Hilink High Reliability And Stability And 1*16 PLC Splitter Module Wide Operation Wavelength 3.0mm ABS Box

    Specifications


    1×N PLC Splitter

    Parameters1×21×41×81×161×321×64
    Operating Wavelength (nm)1260~1650
    Fiber TypeG657A or customer specified
    Insertion Loss (dB)(S/P Grade)4.0/3.87.3/7.010.5/10.213.7/13.516.9/16.521.0/20.5
    Loss Uniformity (dB)0.40.60.81.21.52.5
    Return Loss (dB) (S/P Grade)50/5550/5550/5550/5550/5550/55
    Polarization Dependent Loss(dB)0.20.20.30.30.30.4
    Directivity (dB)555555555555
    Wavelength Dependent Loss(dB)0.30.30.30.50.50.5
    Temperature Stability(-40~85 °C)(dB)0.50.50.50.50.50.5
    Operating Temperature (°C)-40~85
    Storage Temperature (°C)-40~85
    Packaging Dimension (mm) (L×W×H)40×4×440×4×440×4×450×4×450×7×460×12×4
    Module Dimension (mm) (L×W×H)100×80×10100×80×10100×80×10120×80×18140×115×18140×115×18
    Mini-Module Dimension (mm) (L×W×H)60×7×460×7×460×7×460×12×480×20×6N/A

    Notes:

    Specified without connectors.

    Add additional 0.2dB loss per connector.

    Description

    Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and it is widely used in PON networks to realize optical signal power splitting. 3c-link provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-COREstandards.

    Features:

    Low Insertion loss

    Low PDL

    Compact Design

    Good channel-to-channel uniformity

    Wide Operating Wavelength:

    From 1260nm to 1650nm

    Wide Operating Temperature:

    From -40°C to 85°C

    High Reliability and Stability

    Applications

    FTTX Systems

    PON Networks

    CATV Links

    Optical Signal Distribution

    Compliance

    Telcordia GR-1209-CORE

    Telcordia GR-1221-CORE

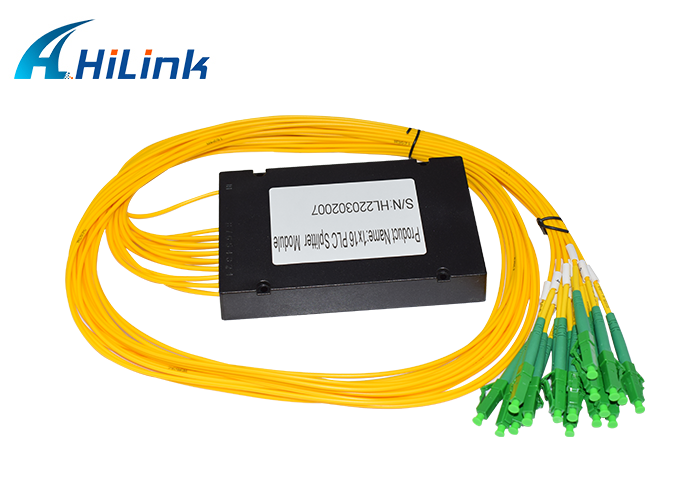

    Real Picture


    Package & Shipping

    We provide safe and reliable packaging:Plastic box+Carton
    Delivery time:3-5 working days

    International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.


    Our Service

    Accept OEM& ODM

    Hilink specialized in fiber optic module more than 10 years

    Use Brand New Material

    Fast delivery

    3 Year Warranty

    Strong Technicial Support


    Guarantee
    High quality is our life. We promise all the advertised products are brand new. We absolutely never use old and refurbished materials. Any faulty items can be returned during the warranty time


    FAQ

    1. Q:Do you sell second-hand products?
    A:No.All our products are brand new,we never use second-hand components.

    2. Q:What payment terms do you accept?
    A:T/T,Paypal,Western Union are acceptable.

    3. Q:What are the shipping ways can you offer?
    A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

    4. Q:Do your products come with warranty?
    A:Yes,We provide 3 years warranty for all our products from the date of shipment.

    5. Q:How to place an order?
    A:1>Order details confirmed,please tell us the model and quantity you need.
    2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
    3>Confirm and ship the goods, then tracking number will be sent to you promptly.
    4>We will help to track your goods until you receive them safely.


    We have many different kinds of products, if you do not find the link u needed, can click on the left and contact us button, we will reply u ASAP, And provided what you needed.
