XFP 10G ZR BIDI 1490nm 1550nm 80KM SMF XFP Optical Module RoHS
Compliant
Hilink’s HLXBxx1XL-CD80 transceivers are designed for 10G Ethernet 10G, and
it can support data-rate from 9.953Gb/s to 11.3Gb/s.Digital diagnostics are avail-able via I2C interface as specified in the XFP MSA.The transceiver designs are optimized
for high per-formance and cost effective to supply customers the best solutions for data-com and telecom
applications.
Features
Supports 9.95 to 11.3Gb/s bit rates
Simplex LC Connector
Hot-pluggable XFP footprint
Cooled 1490nm EML transmitter, 1550nm APD receiver
Cooled 1550nm EML transmitter, 1490nm APD receiver
Applicable for 80km SMF connection
Low power consumption, < 3.5W
Digital Diagnostic Monitor Interface
Optical interface compliant to IEEE 802.3ae 10GBASE-ZR
Electrical interface compliant to SFF-8431
Operating case temperature: Commerical:0 to 70 °C
Specifications
| Item No. | HL-XFP-BX-80 | Vendor Name | Hilink |
| Form Type | XFP | Max Data Rate | 11.3Gb/s |
| Wavelength | 1490/1550nm | Max Cable Distance | 80KM |
| Interface | LC Simplex | Optical Components | EML + APD |
| Cable Type | SMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
| Parameter | Symbol | Unit | Min | Typ | Max | Note |
| Transmitter |
| Center Wavelength | λ | nm | 1470 | 1490 | 1510 | |
| λ | nm | 1530 | 1550 | 1565 | |
| Average Output Power | Pave | dBm | 0 | | 5 | 1 |
| Extinction Ratio | ER | dB | 9 | | | |
| Side Mode Suppression Ratio | SMSR | dB | 30 | | | |
RMS spectral width | Δλ | nm | | | 1 | |
Rise/Fall time (20%~80%) | Tr/Tf | ps | | | 50 | |
Dispersion penalty | TDP | dB | | | 3.2 | |
| Relative Intensity Noise | RIN | dB/Hz | | | -128 | |
| Receiver |
Center Wavelength | λC | nm | 1530 | 1550 | 1565 | |
| λC | nm | 1470 | 1490 | 1510 | |
| Receiver Sensitivity | PSEN1 | dBm | | | -22 | 2 |
| Receiver Overload | Pave | dBm | -7 | | | |
| LOS Assert | Pa | dBm | -35 | | | |
| LOS De-Assert LOS | Pd | dBm | | | -23 | |
| LOS Hysteresis | Pd-Pa | dB | 0.5 | | | |
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER=9; BER<10-12; 231 – 1 PRBS.
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link,
Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie,
Zyxel, etc.
Applications
10GBASE-BX 10.3125Gb/s Ethernet
10GBASE-BX 9.953Gb/s Ethernet
SONET OC-192 &SDH STM I-64.1
Other optical link

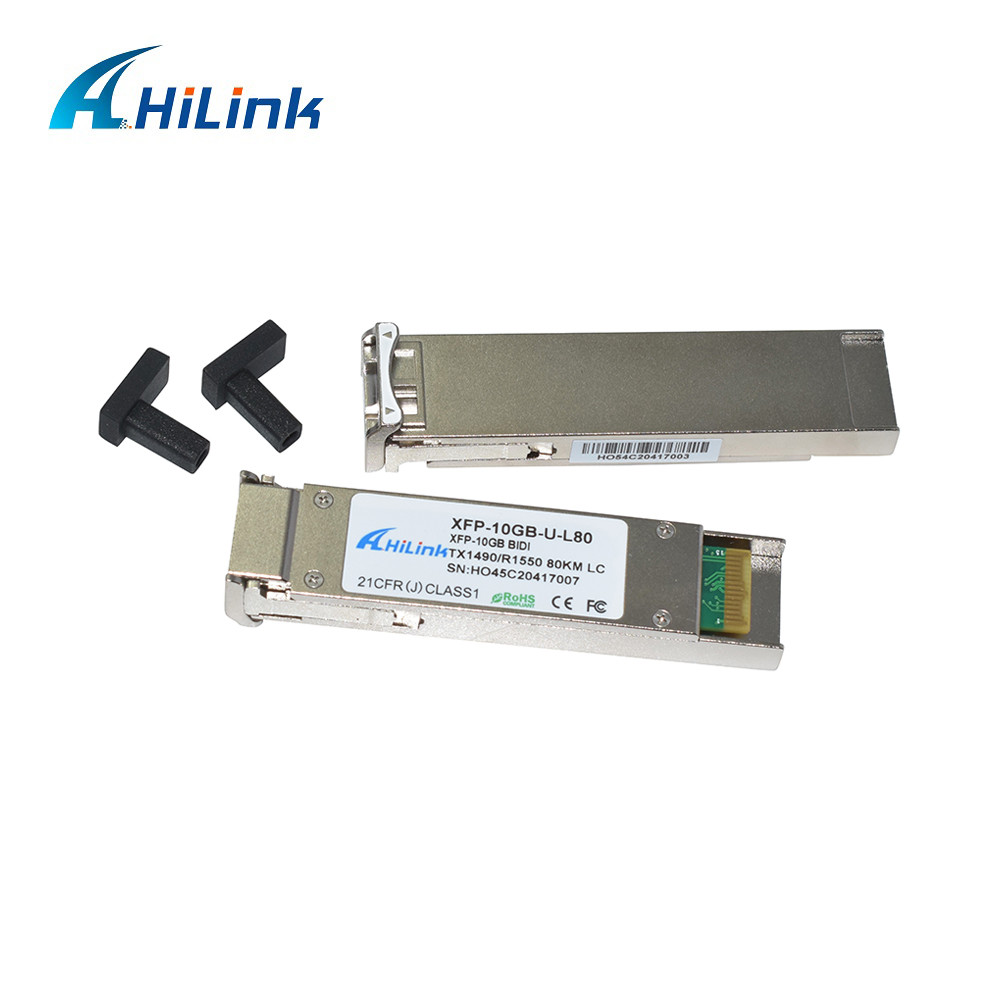

Details Photos
