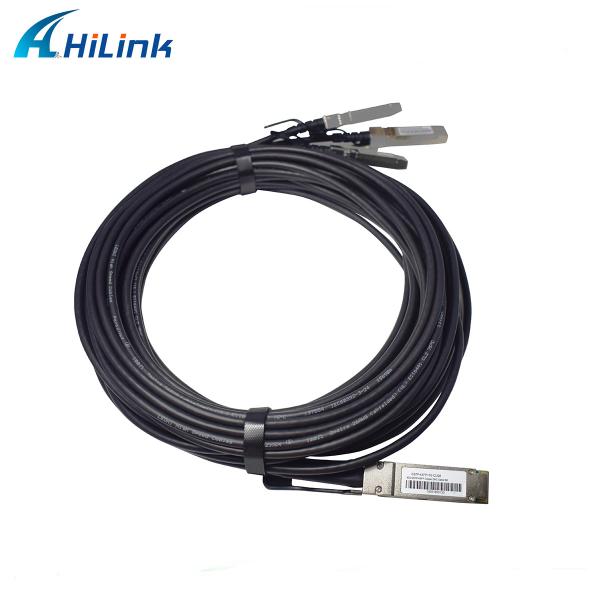

    4 SFP+ Direct Attached Cable QSFP+ 40G Passive Hybrid 5M DAC

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-DAC-40G-4SFP-CU-5m
    Certification : CE FCC RoHS
    Price : Negotiable
    Delivery Time : 1~4working days
    • Product Details
    • Company Profile

    4 SFP+ Direct Attached Cable QSFP+ 40G Passive Hybrid 5M DAC

    QSFP+ to 4 SFP+ Direct Attached Cable QSFP+ 40G Passive Copper Cable 5M DAC


    General Description


    4 SFP+ Direct Attached Cable QSFP+ 40G Passive Hybrid 5M DAC


    The Quad Small Form-factor Pluggable Plus (hereafter referred to as QSFP+) solution is designed for high-density applications. The hot-pluggable transceiver integrates 4 transmitting and 4 receiving channels. Hilink QSFP+ Direct Attach Cables are compliant with the SFF-8436 specifications. SFP+ Direct Attach Cables are compliant with the SFF-8431, SFF-8432 and SFF-8472 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length (up to 7m).


    Length ( M )Cable ( AWG )
    130/28
    230/28
    330/28
    428
    528/24
    624
    724

    Features


    Connector 1: 40G QSFP+

    Connector 2: 4 x 10GSFP+

    Cable Type: DAC Cable

    Hybrid cable conforms to the Small Form Factor SFF-8436 and SFF-8431

    Support for multi-gigabit data rates :1.0 Gbps - 10.3125 Gbps (per channel)

    Maximum aggregate data rate: 41.25 Gbps (4 x 10.3125Gbit/s)

    Hybrid cable link length up to 5m (passive limiting)

    High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector

    Power Supply :+3.3V

    Low power consumption: 0.02 W (typ.)

    Temperature Range: 0~ 70 °C


    Applications


    • 40G QSFP+ to 4×10SFP+

    10G/40Gigabit Ethernet

    InfiniBand SDR, DDR, QDR

    Switches, Routers, and HBAs

    Data Centers

    Fibre Channel

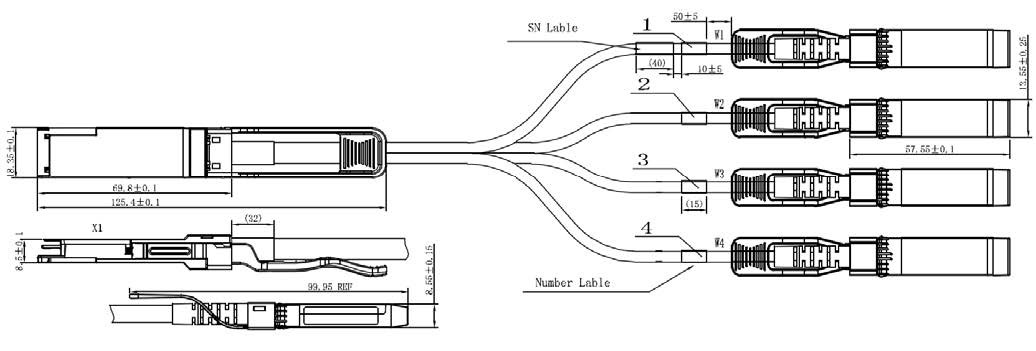

    Details Images


    4 SFP+ Direct Attached Cable QSFP+ 40G Passive Hybrid 5M DAC4 SFP+ Direct Attached Cable QSFP+ 40G Passive Hybrid 5M DAC4 SFP+ Direct Attached Cable QSFP+ 40G Passive Hybrid 5M DAC
