10G CWDM SFP 1410-1610nm 10GBASE 80KM SFP Transceiver
General
HILINK CWDM 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 40km. This transceiver consists of two sections: The transmitter section incorporates a CWDM EML laser. And the receiver section consists of a APD photodiode integrated with a TIA.
All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Product Feature
Supports 9.95 to 11.3Gb/s bit rates
Duplex LC connector
Hot pluggable SFP+
Cooled 1470nm~1610nm EML transmitter, APD Receiver
Applicable for 80km SMF connection
Operating case temperature:
Commerical:0 to 70 °C
Industrial:-40 to 80 °C
Application
10Gbps CWDM Optical systems
LTE systems
Other Optical link
CWDM Transceiver
Product Picture Show
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter |
| Operating Wavelength | λ | λ-7.5nm | λ | λ+7.5nm | nm | 1 |
| Ave. output power (Enabled) | PAVE | 0 | | 4 | dBm | 2 |
| Side-Mode Suppression Ratio | SMSR | 30 | | | dB | |
| Extinction Ratio | ER | 9 | | | dB | |
| RMSspectral width | Δλ | | | 1 | nm | |
| Rise/Fall time (20%~80%) | Tr/Tf | | | 50 | ps | |
| Dispersion penalty | TDP | | | 3 | dB | |
| Relative Intensity Noise | RIN | | | -128 | dB/Hz | |
| Output Optical Eye | Compliant with IEEE 0802.3ae |
| Receiver |
| Operating Wavelength | λ | 1260 | | 1620 | nm | |
| Receiver Sensitivity | PSEN1 | | | -24 | dBm | 3 |
| Sensitivityover 80Km fiber | PSEN2 | | | -20 | dBm | 3 |
| Overload | PAVE | | | -7 | dBm | |
| LOS Assert | Pa | -35 | | | dBm | |
| LOS De-assert | Pd | | | -26 | dBm | |
| LOS Hysteresis | Pd-Pa | 0.5 | | | dB | |
Notes:
1.The wavelength λ=1470nm~1610nm, Total 8 wavelengths,20nm spacing
2. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.
3.Under the ER worst =9, measured at 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12

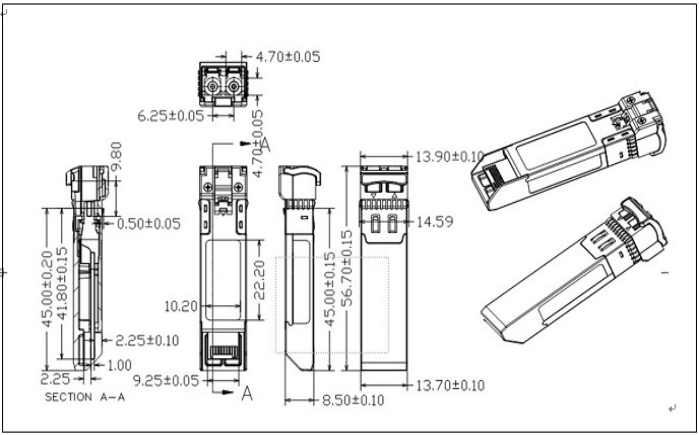

Package Dimensions
