1270nm CWDM Mux Demux ABS Box Module 1X8CH Customized

Ask Lasest Price
Brand Name :	Hilink
Model Number :	HL-CWDM-MUX
Certification :	CE FCC Rohs
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram,Paypal
Supply Ability :	200PCS/month

Add to Cart

Product Details
Company Profile

1270nm CWDM Mux Demux ABS Box Module 1X8CH Customized

CWDM System Use 1270-1610nm 1X8CH CWDM Mux Demux ABS Box Module

Hilink's CWDM Mux Demux Module CWDM Mux/Demux Module is over a single or duplex single mode fiber to extend overall bandwidth WDM.

It offers high stability and reliability, and has compact package size. Its operating wavelength is from 1270nm to 1610nm(1261nm-1611nm) which totally offer 18 channels with 20nm channel spacing.

Hilink CWDM Mutiplexer Series:

* Bare single CWDM device packed in glass tube or stainless steel tube

* ABS box type up to 16-channel or 18-channel

* Standard 19" 1U rackmount

Features

* Very Low Insertion Loss

* High Isolation

* High Reliability and Stability

* Low PDL

* Compact Design

* Good channel-to-channel uniformity

* Wide Operating Wavelength: 1270nm-1610nm (1261nm~1611nm)

* Operating Temperature: -20 to +70℃

* Industrial Operating Temperature: -40 to +80℃

Parameter		4 Channel		8 Channel		18 Channel
		Mux	Demux	Mux	Demux	Mux	Demux
Channel Wavelength (nm)		1270~1610
Center wavelength Accuracy (nm)		±0.5
Channel Spacing (nm)		20
Channel Passband (@-0.5dB bandwidth (nm)		>13
Insertion Loss (dB)		≤1.2		≤2.5		≤3.1
Channel Uniformity (dB)		≤0.5		≤1.0		≤1.5
Channel Ripple (dB)		0.3
Isolation (dB)	Adjacent	N/A	>30	N/A	>30	N/A	>30
	Non-adjacent	N/A	>40	N/A	>40	N/A	>40
Inertion Loss Temperature Sensitivity (dB/°C)		<0.005
Wavelength Temperature Shifting (nm/°C)		<0.002
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion		<0.1
Directivity (dB)		>50
Return Loss (dB)		>45
Maximum Power Handling (mW)		500
Opterating Temperature (°C)		-20~+70
Storage Temperature (°C)		-40~85
Package dimension (mm)		L100 x W80 x H10 or L140xW100xH15

Applications

* CWDM System

* Add/Drop
* PON Networks
* CATV Links

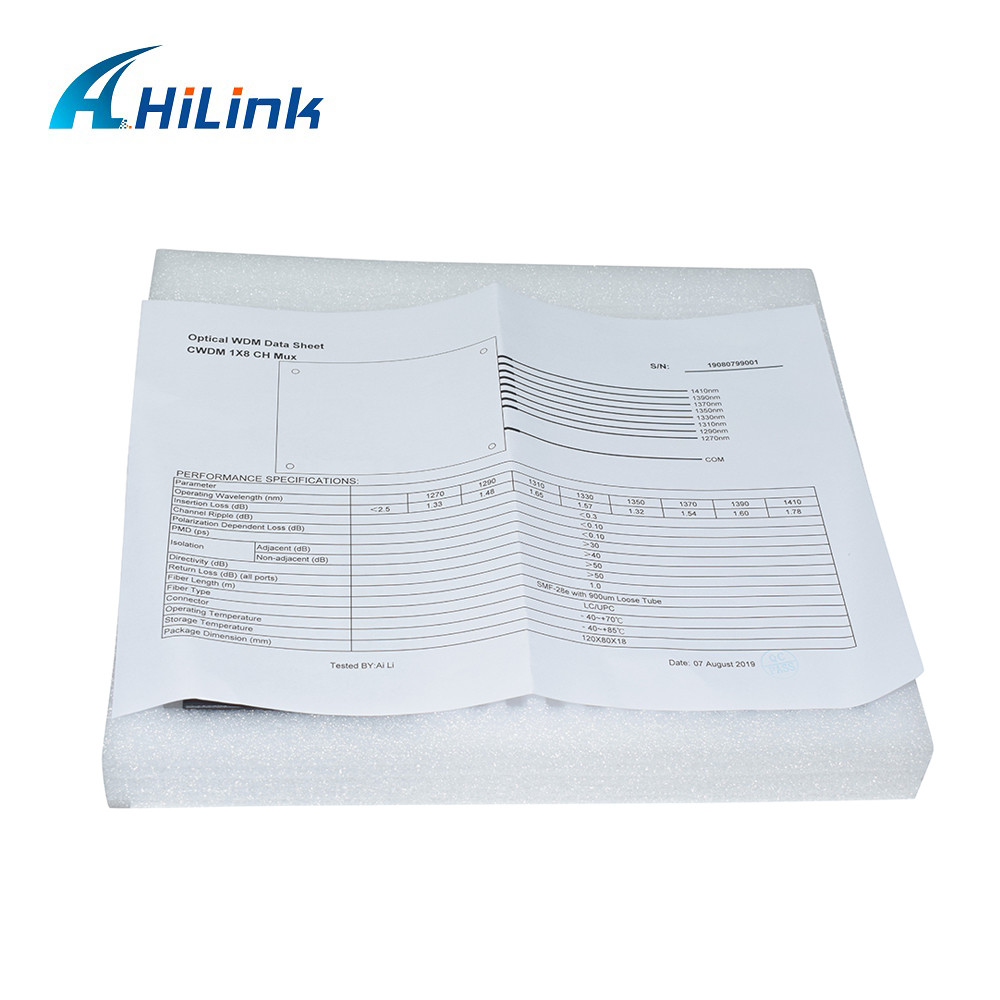

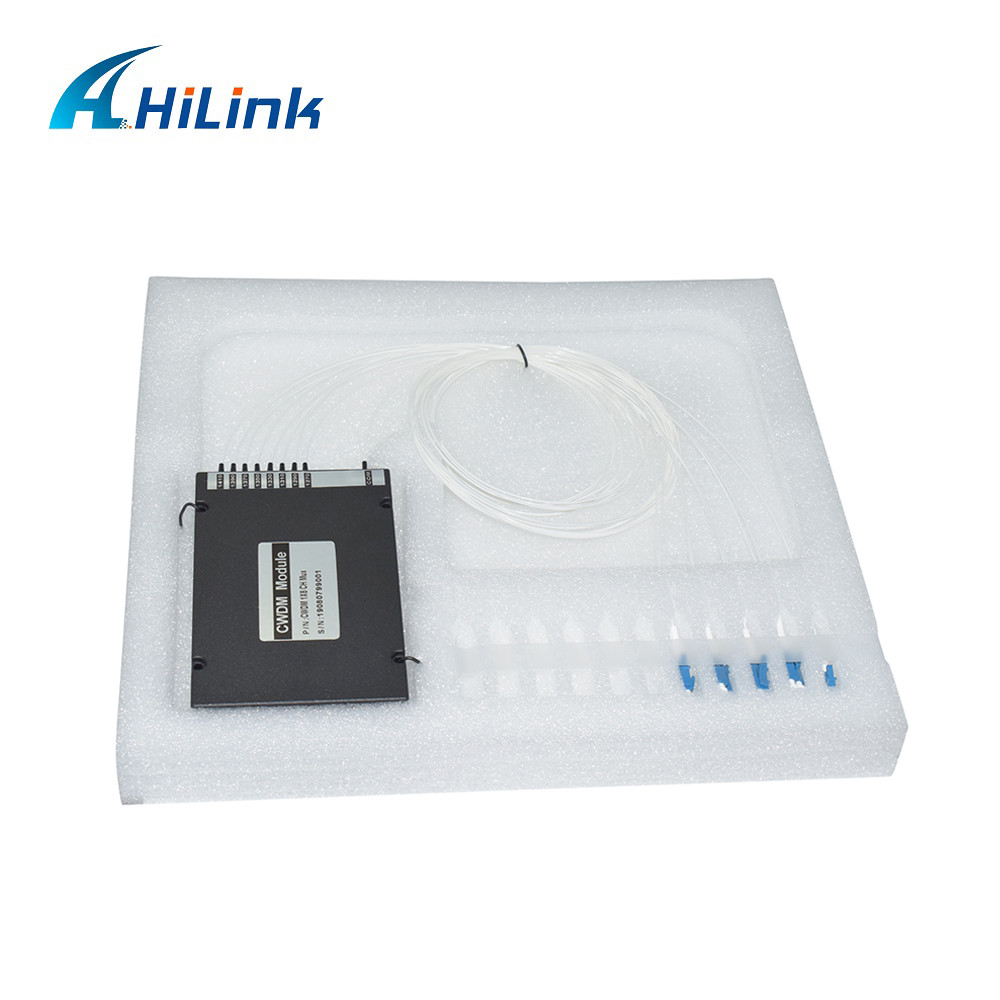

Details Images

1270nm CWDM Mux Demux ABS Box Module 1X8CH Customized

Hilink Advantages

1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.

FAQ

1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.

2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.

3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .

4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
