40G/100G LR Dual Fiber Optical Transceiver LGX Module To Single Fiber Converter

40G/100G LR ER ZR Dual fiber to Single fiber Converter LC/UPC Plug-in LGX Module or 1U Rack

With the increase of 100G data transmission with large bandwidth, optical fiber resources between data centers are becoming less and less. How to reuse existing optical fibers can save considerable costs for enterprises. Hilink provides 100G dual-port to single-port converter for bidirectional transmission of 100GLR4/ER4 optical modules over one core fiber, enabling multiple 100G services using the existing dual-core fiber.

Dual fiber 100G transceiver in single fiber transmission application:

Product Panel

u Supports 40G/100G LR4, ER4, ZR4, dual fiber to single fiber

u Operation wave 1310nm

u LC Connector

u Passive device, Low Insertion Loss

Specifications

Wavelength	1310nm	Rate	40G/100G
Insertion Loss	≤ 1dB	Technology	TFF (Thin Film Filter)
Line Insertion Loss	≤ 2.0dB	Isolation	≥35dB
Polarization Dependent Loss	≤ 0.1ps	Return Loss	≥ 45dB
TDL (dB)	≤0.15dB	PMD (ps)	≤0.055nm
Return Loss	≥ 45dB	Directivity	≥ 45dB
Power handling	≤500mW	Fiber Type	SMF-28e
Connector	LC, SC, FC (UPC/APC)	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Net Weight	LGX BOX :0.5KG 4Slot 1u Rack: 2.5KG	Dimensions (HxWxD)	LGX BOX 214.515020mm 4Slot 1u Rack 44440160mm

Package Information

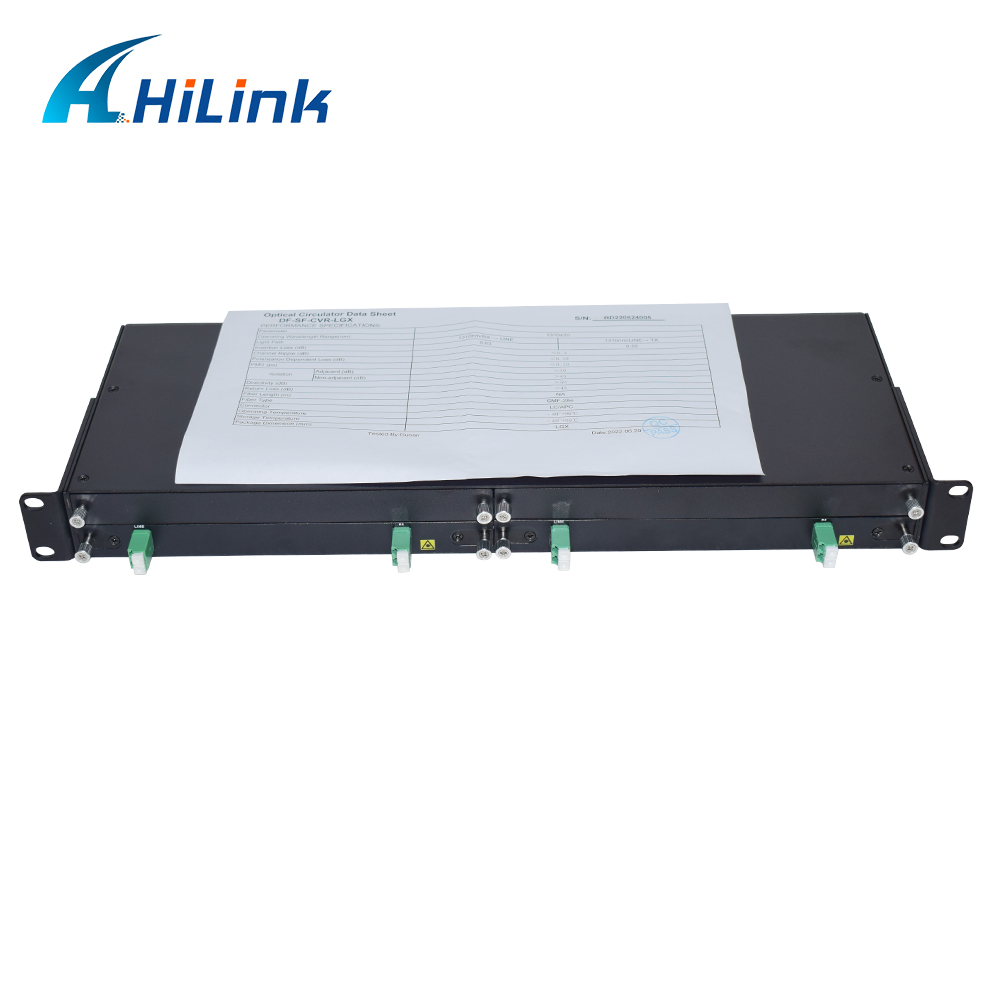

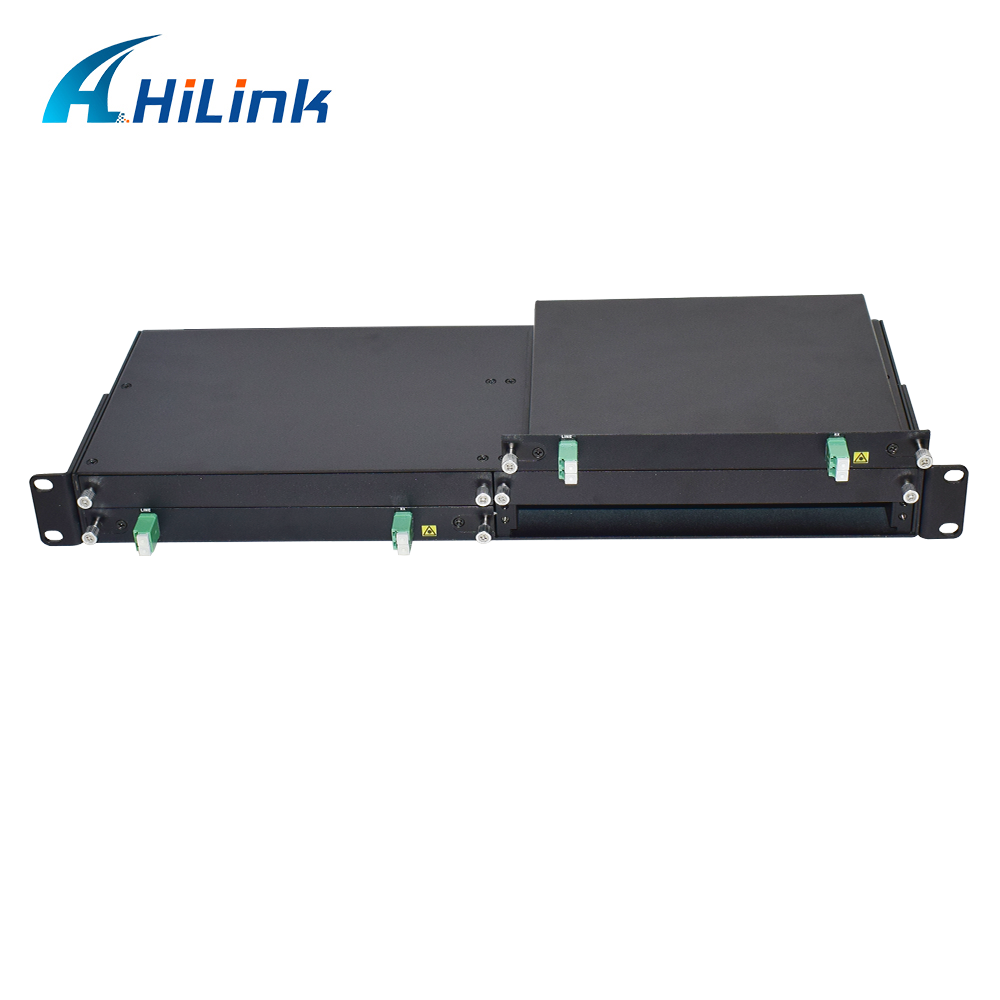

Plug-in LGX Box 4-Slot 1U Rack for LGX BOX

Order Information

Product No.	Product description
100G-LGX01-D-S	100G LR ER ZR Dual fiber to Single fiber Converter LC/UPC Plug-in LGX Module
1U02-4LGX	19” inch 1U rack with 4 slot for Plug-in LGX box, 44016044mm
