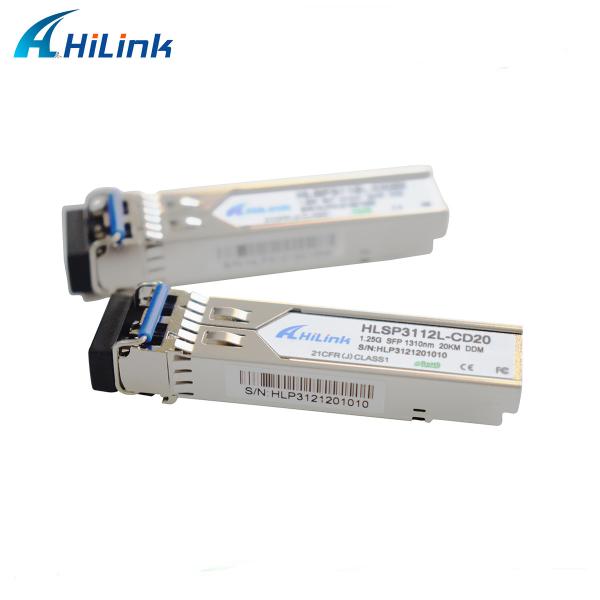

    Hilink HW Compatible SFP Fiber Optic Module 1.25G SFP BIDI 20km LC Connector

    Ask Lasest Price
    Brand Name : Hilink
    Model Number : 1.25G SFP BIDI 20KM
    Certification : CE Rohs
    Price : Need to negotiate
    Payment Terms : T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance
    Supply Ability : 2000 Pieces/Week
    Delivery Time : 5-8 working day
    • Product Details
    • Company Profile

    Hilink HW Compatible SFP Fiber Optic Module 1.25G SFP BIDI 20km LC Connector

    Hilink HW Compatible 1.25G SFP BIDI 1310/1550NM 20km,LC Connector, DOM Function Brands SFP Fiber Optic Module

    Product Description
    General
    Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.
    Product Features

    Single LC receptacle optical interface compliant

    Hot-pluggable SFP footprint

    1310nm FP laser transmitter

    RoHS compliant and Lead Free

    Up to 20km on 9/125um SMF

    Metal enclosure for lower EMI

    Single 3.3V power supply

    Low power dissipation <600mW

    Commercial operating temperature range: 0°C to 70°C


    Application


    Gigabit Ethernet

    1.06 Gb/s Fibre Channel


    Optical Charactristics


    III. Electrical Characteristics (TOP=25°C, Vcc=3.3Volts)
    ParameterSymbolMinTypMaxUnitRef.
    Supply VoltageVcc3.003.60V
    Supply CurrentIcc180300mA
    Transmitter
    Input differential impedanceRin100Ω2
    Single ended data input swingVin, pp2501200mV
    Transmit Disable VoltageVDVcc – 1.3VccV
    Transmit Enable VoltageVENVeeVee+ 0.8V
    Transmit Disable Assert Time10us
    Receiver
    Single ended data output swingVout, pp300400800mV3
    Data output rise timetr300ps4
    Data output fall timetf300ps4
    LOS FaultVLOS faultVcc – 0.5VccHOSTV5
    LOS NormalVLOS normVeeVee+0.5V5
    Deterministic Jitter ContributionRXΔDJ80ps6
    Total Jitter ContributionRXΔTJ122.4ps

    Notes:

    • Non condensing.
    • AC coupled.
    • Into 100 ohm differential termination.
    • 20 – 80 %
    • LOS is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
    • Measured with DJ-free data input signal. In actual application, output DJ will be the sum of input DJ and ΔDJ.

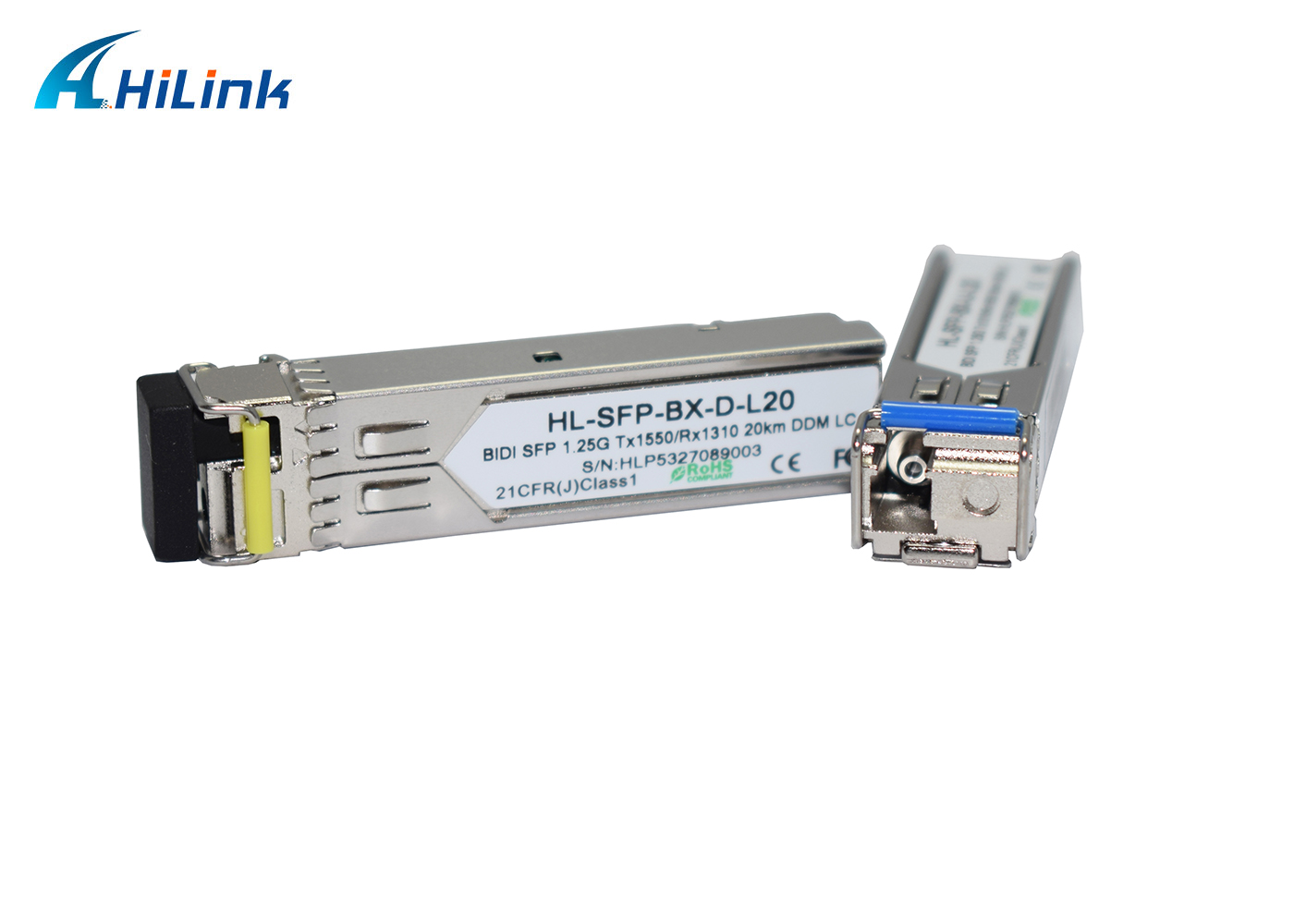

    Real Picture


    Package & Shipping

    We provide safe and reliable packaging:Plastic box+Carton
    Delivery time:2-5 working days

    International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.


    Our Service

    OEM/ODM order is available


    We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
