    100G QSFP28 4 Channel ZR4 80KM LC Connector Optical Transceiver Compatible With Most Brands

    Ask Lasest Price
    Brand Name : Hilink
    Model Number : 100G QSFP28 ZR4 80KM
    Certification : CE Rohs
    Price : Need to negotiate
    Payment Terms : T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance
    Supply Ability : 2000 Pieces/Week
    Delivery Time : 5-8 working day
    • Product Details
    • Company Profile

    100G QSFP28 4 Channel ZR4 80KM LC Connector Optical Transceiver Compatible With Most Brands

    Compatible With Most Brands High Quality 100G QSFP28 ZR4 80KM Optical Transceiver

    Product Description

    QSFP28 transceiver modules are designed for 100 Gigabit Ethernet over single mode fiber. They are compliant with the QSFP28 MSA, 100GBASE-ZR4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.

    QSFP28 are compliant with RoHS.

    Features


    Compliant with QSFP28 MSA

    4 cooled 25Gb/s channels LAN WDM EML TOSA

    4 channels SOA PIN photo detector

    Single +3.3V power supply

    Class 1 laser safety certified

    Commercial operating temperature: 0oC to +70oC

    Up to 80km on SMF with FEC

    Duplex LC connector

    RoHS 6/6 Compliant



    Applications

    100GBASE-ZR4 Ethernet links

    Data center


    Transmitter Optical Characteristics

    ParameterSymbolMinimumTypicalMaximumUnitNotes
    Launch Optical Power per lanePo+2.0-+6.5dBm1
    Total Launch Optical PowerPo--+12.5dBm1
    Center Wavelength RangeL11294.531295.561296.59nm-
    L21299.021300.051301.09nm-
    L31303.541304.581305.63nm-
    L41308.091309.141310.19nm-
    Extinction RatioEX8.0--dB2
    Spectral width(-20dB)Δλ--1nm-
    Side Mode Suppression RatioSMSR30--dB-
    Optical Return Loss ToleranceORLT--20dB-
    Pout @TX-Disable AssertedPoff---30dBm1
    Eye Mask {X1, X2, X3, Y1, Y2, Y3}{0.25, 0.4, 0.45, 0.25, 0.28, 0.4}

    Notes:

    • The optical power is launched into SMF.
    • Measured with a PRBS 231-1 test pattern @25.78125Gbps.

    Receiver Optical Characteristics

    ParameterSymbolMinimumTypicalMaximumUnitNotes
    Center WavelengthL11294.531295.561296.59nm-
    L21299.021300.051301.09nm-
    L31303.541304.581305.63nm-
    L41308.091309.141310.19nm-
    Sensitivity per Channel (OMA)S---26.9dBm1
    Overload (each channel)POL+2.0--dBm1
    Damage Threshold(each channel)Pdamage+4.5--dBm-
    Receiver ReflectanceRf---26dB-
    LOS De-AssertLOSD---28.0dBm-
    LOS AssertLOSA-35.0--dBm-
    LOS Hysteresis-0.5-5.0dB-

    Notes:

    • Measured with PRBS 231-1 test pattern, 25.78125Gb/s, BER 5.0E-5;

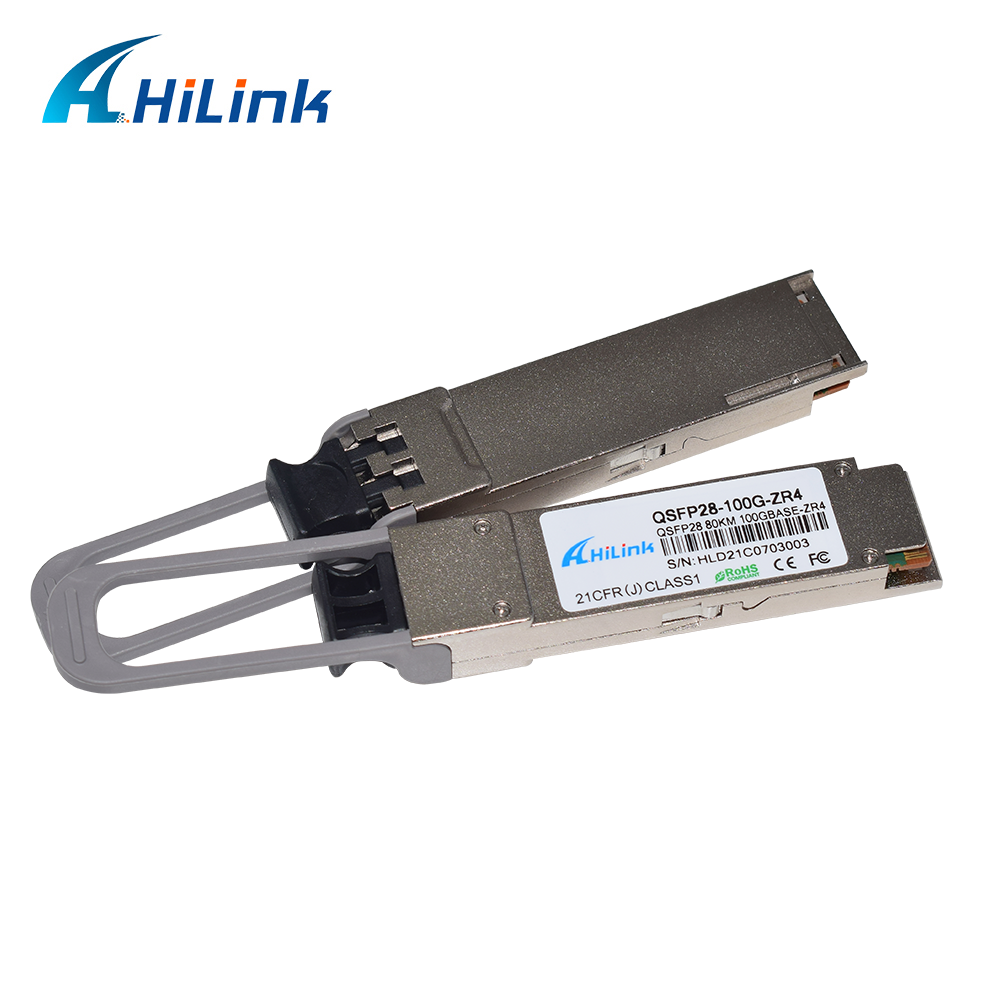

    Real Picture



    Package & Shipping

    We provide safe and reliable packaging:Plastic box+Carton
    Delivery time:2-5 working days

    International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.


    Our Service

    OEM/ODM order is available


    We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
