    QSFP+ 40G SR4 MMF 850nm 100M OM3 150M OM4 MPO Connector Optical Transceivers

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-QSFP-SR4
    Certification : CE FCC RoHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 100PCS Per Day
    Delivery Time : 3-5 Working Days
    • Product Details
    • Company Profile

    QSFP+ 40G SR4 MMF 850nm 100M OM3 150M OM4 MPO Connector Optical Transceivers

    QSFP+ 40G SR4 MMF 850nm 100M OM3 150M OM4 MPO Connector Optical Transceivers


    Hilink 40G 850nm OM3 100m QSFP SR4 Optical Transceiver uses an 12 fiber MPO connector.


    Item

    Description

    Transceiver form factor


    QSFP+

    Transmission speed


    40GE

    Center wavelength (nm)

    850

    Standards compliance

    40GBASE-SR4

    Connector type

    MPO/PC (8-strand or 12-strand, type B, female connector)

    Applicable cable and

    maximum transmission distance


    Multimode fiber (OM3): 0.1 km

    Multimode fiber (OM4): 0.15 km

    Transmit power (dBm)

    -7.6 to +2.4

    Maximum receiver sensitivity(dBm)

    -5.4

    Overload power (dBm)

    2.4

    Extinction ratio (dB)

    3.0

    Operating temperature

    0°C to 70°C (32°F to 158°F)


    Features

    • QSFP+ MSA, SFF-8436 compatible

    • MPO Connector

    • Distance up to 150m over OM4 Fiber

    • VCSEL array transmitter and PIN array receiver

    • Electrically Hot-pluggable

    • Single 3.3V Power Supply

    • Power Dissipation< 1.5W

    • Digital Diagnostics Monitoring Interface

    • Operating Case Temperature: 0-70℃


    Applications

    • 40GBASE-SR4

    • Server-Server Clusters, Super-computing interconnections

    • 40G Applications backplane

    • InfiniBand SDR, DDR and QDR applications


    Compatibility

    • Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

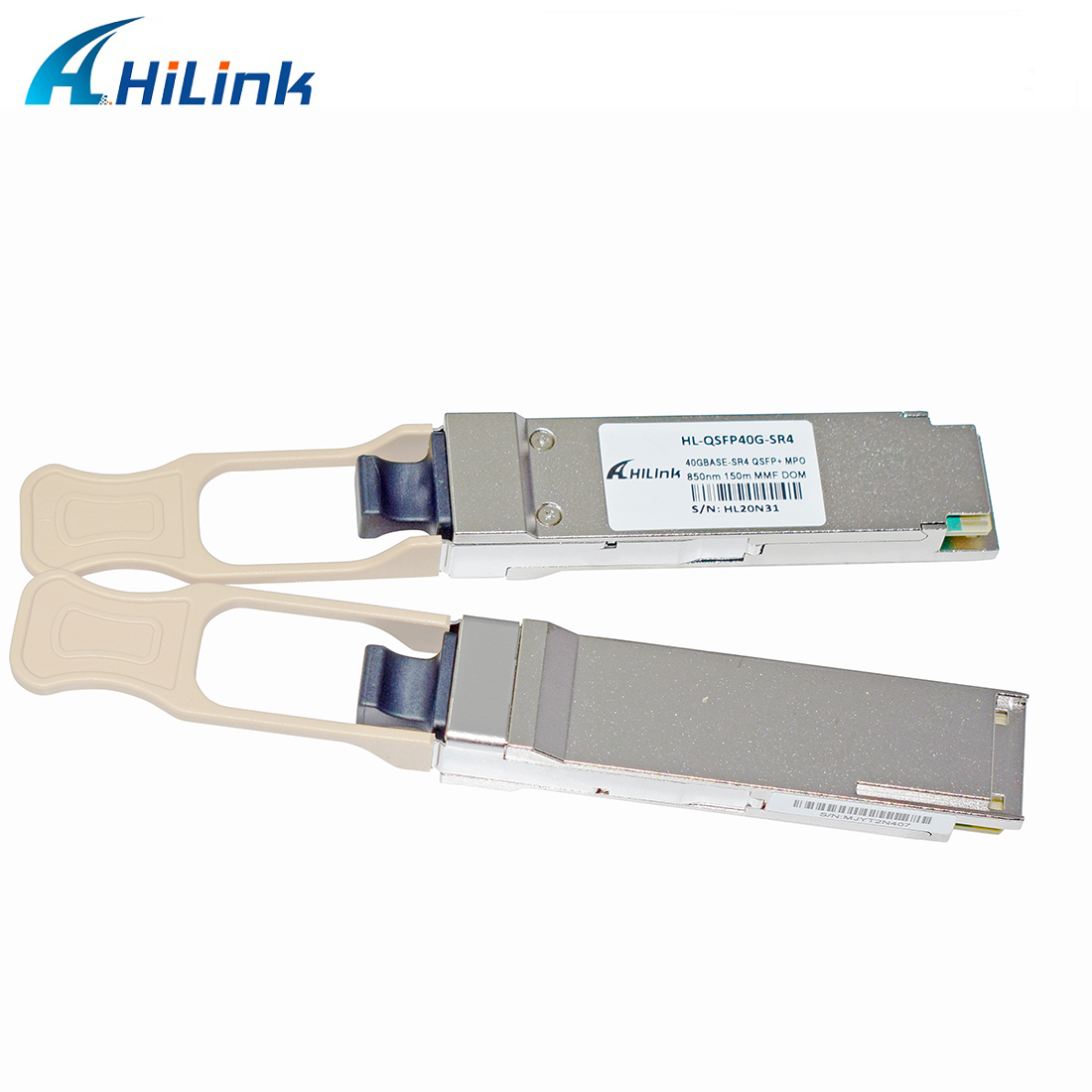

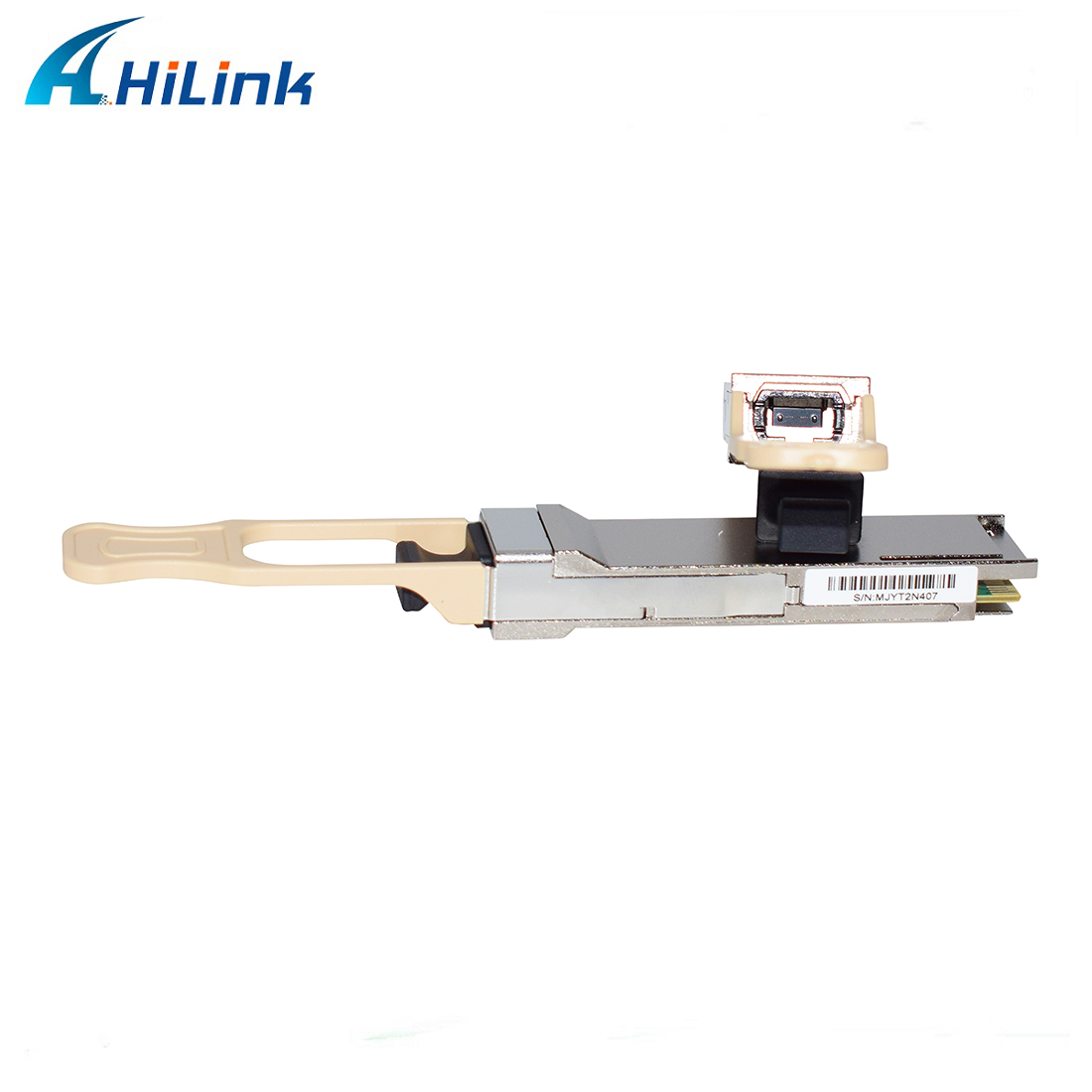

    Details Photos




    Hilink Advantage

    1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
    2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
    3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
    Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
    4. We provide 3 years warranty for all our products from the date of shipment.
    5. All of our products passed CE,ROHS,FCC.
    6. We also provide DWDM CWDM WDM with optical solutions.
