Hilink 100G QSFP28 LR4 10KM LC Connector Single Mode Fiber Optic Module

Ask Lasest Price
Brand Name :	Hilink
Model Number :	100G QSFP28 LR4 10KM
Certification :	CE FCC Rohs
Price :	Need to negotiate
Payment Terms :	T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance
Supply Ability :	2000 Pieces/Week
Delivery Time :	5-8 working day

Add to Cart

Product Details
Company Profile

Hilink 100G QSFP28 LR4 10KM LC Connector Single Mode Fiber Optic Module

Product Description

Features

Up to 10km reach for G.652 SMF Cooled 4x25Gb/s LAN WDM DML TOSA with optical MUX

4x25G Electrical Interface Single +3.3V power supply DDM function implemented

2 Wire Serial Interface for modulemanagement

Maximum power dissipation<4.5W Operating temperature range: 0℃ ~ 70℃

Compliant with RoHS6

Applications

Compliant with QSFP28 MSA(SFF-8665 v1.9)

Compliant with IEEE 802.3ba

100GBASE-LR4 Ethernet

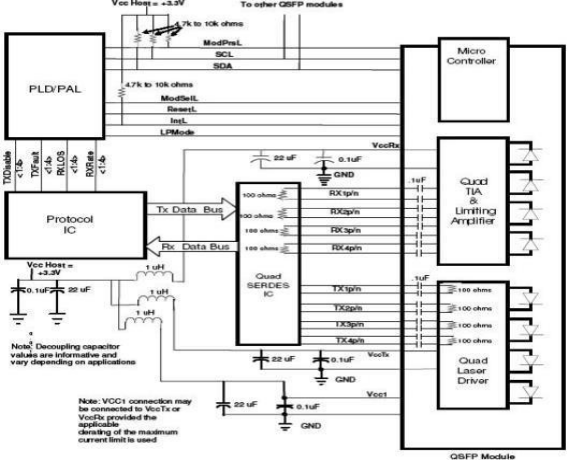

Typical Application Circuit

Optical Characteristics (Tc=0 oC to 70 oC and Vcc= 3.14 to 3.46)

Parameter	Symbol	Unit	Min	Typ	Max	Notes
Transmitter(per Lane)
Signaling Speed per Lane		GBd	25.78125 ± 100 ppm
Lane Wavelength (range):			1294.53 – 1296.59 1299.02 – 1301.09 1303.54 – 1305.63 1308.09 – 1310.19
L0
L1		nm
L2
L3
Total Average Launch Power	Pout	dBm			10.5
Transmit OMA per Lane	TxOMA	dBm	-5		5
Average Launch Power per Lane	TXPx	dBm	-4.3		4.5
Optical Extinction Ratio	ER	dB	3.5
Side-Mode Suppression Ratio (SMSR)	SMSR	dB	30
Average launch power of OFF transmitter, per lane		dBm			-30
Relative Intensity Noise	RIN	dB/Hz			-128
Optical Return Loss Tolerance		dB			20
Transmitter Reflectance		dB			-12
Transmitter Eye mask definition {X1,X2,X3, Y1,Y2,Y3}			{0.25,0.4,0.45,0.25,0.28,0.4}
Receiver(per Lane)
Signaling Speed per Lane		GBd	25.78125 ± 100 ppm
Lane Wavelength (range):			1294.53 – 1296.59 1299.02 – 1301.09 1303.54 – 1305.63 1308.09 – 1310 19
L0
L1		nm
L2
L3
Average Receiver Sensitivity per Lane	Rxsens	dBm			-8.6	dBm
Average Received Power per Lane	RXPx	dBm	-11		3.4
Damage Threshold Per Lane	Pmax	dBm			3.4
Return Loss	RL				-26
Vertical eye closure penalty, per lane		dB			1.9
Receiver electrical 3dB upper cutoff frequency,per lane		GHz			31
LOS De-Assert	LOSD	dBm			-13
LOS Assert	LOSA	dBm	-30
LOS Hysteresis		dB	0.5	1.5	5

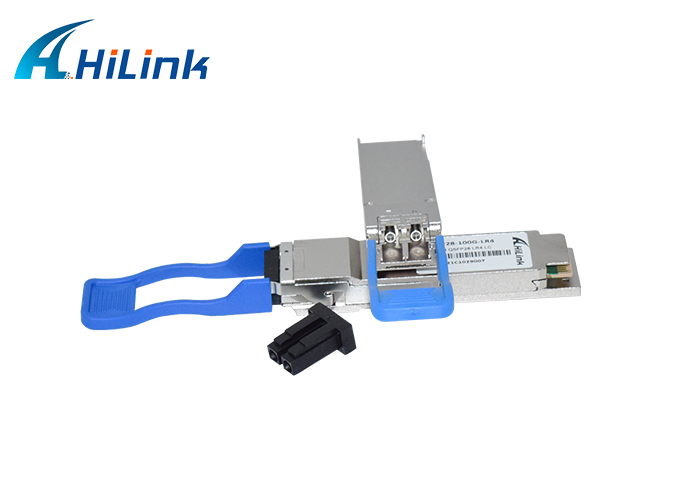

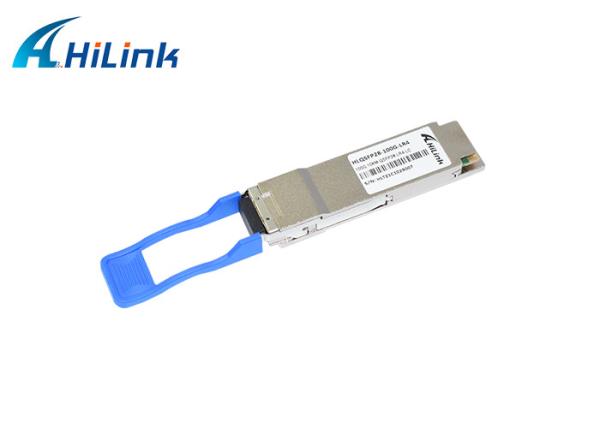

Real Picture

Package & Shipping

We provide safe and reliable packaging:Plastic box+Carton

Delivery time:2-5 working days

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.

Our Service

OEM/ODM order is available

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
