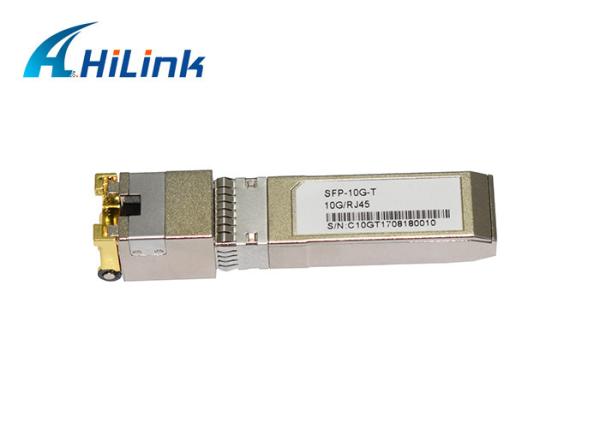

10G BASE-T RJ45 to 30~80 Meters CAT6 Copper SFP+ Transceivers

Hilink 10G Copper RJ45 SFP+ is designed for 10G Ethernet 10GBASE-T links over Cat6 RJ45 copper cable. 30meter and 80meter available. SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3 . SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.

Features

• Hot-pluggable SFP+ form factor

• Compliant with SFF-8431 and SFF-8432 MSA standards

• Compliant with IEEE 802.3az and 802.3an standards

• Compliant with IEEE 802.3bz 5GBASE-T and 2.5GBASE-T standards

• TX Disable and RX Los function

• Fully metallic enclosure for Low EMI Emissions

• Supports 100/1000BASE-T using Cat 5e cable or better

• MDI/MDIX Crossover

• Supports 10Gb/s data rate

• Auto-negotiates with other 10GBASE-T PHYs

• XFI/5GBASE-R/2500BASE-X/SGMII, SGMII Auto-Negotiation On

• Access to physical layer IC via 2-wire serial bus

• 2.5W maximum power dissipation @30m

• Compact RJ-45 connector assembly

• Multiple Loopback Modes for Testing and Troubleshooting

• Unshielded and Shielded cable support

• Single 3.3V power supply

• RoHS-6 compliant (lead free)

Compatibility

Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.

Shenzhen Hilink Technology Co., Ltd. was founded in 2007 year.

We are specialized in manufacturing and marketing fiber optic products.

Our core competencies are fiber optics of QSFP28,DWDM CWDM SFP/XFP

and network solutions of FWDM, DWDM CWDM CFP2  DCO, MPO AAWG,etc

which largely apply in cloudy computing, data center, networking access ,and so on.

For improving our main products and solution performance,

we also specialize with related optical products by customers' requirement.

We have professional production line and staff who are making high quality products in short time.

All the items are coming with certification, like RoHS CE FCC standard.

We are committed to providing class 1 products ,

and cost-effective solutions to create new values for our partners.

Our products and services have reached worldwide countries and districts.

We have established long-term win-win cooperation relationships with global clients,such as Viking Netherland , Sweden Telecoms, United states TX ISP.

With the growing reputation, now more and more partners from worldwide are joining us.

Our ideal is to make communication simpler and easier.

To delivery the extreme service and work value, we are striving for excellence and perfection with unfailing enthusiasm.
