QSFP-40G-SR-BD 40G BIDI Multimode 100m QSFP Transceiver Module

Ask Lasest Price
Brand Name :	HILINK
Model Number :	HL-QSFP-40G-SR-BD
Certification :	CE FCC Rohs
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union.Paypal
Supply Ability :	100/PCS/MONTH

Add to Cart

Product Details
Company Profile

QSFP-40G-SR-BD 40G BIDI Multimode 100m QSFP Transceiver Module

QSFP-40G-SR-BD 40G BIDI QSFP multimode 100m QSFP Transceiver Module 40G SR .

PRODUCT DESCRIPTIONS

The transceiver internally multiplexes an XLPPI 4x25G interface into two 50Gb/s electrical channels, transmitting and receiving each optically over one simplex LC fiber using bi-directional optics. This results in an aggregate bandwidth of 100Gbps into a duplex LC cable. This allows reuse of the installed LC duplex cabling infrastructure for 100GbE application. Link distances up to 70 m using OM3 and 100m using OM4 optical fiber are supported. These modules are de- signed to operate over multimode fiber systems using a nominal wavelength of 850nm on one end and 900nm on the other end. The electrical interface uses a 38 contact QSFP28 type edge connector. The optical interface uses a conventional LC duplex connector.

PRODUCT FEATURES

Aggregate bandwidth of > 100Gbps
Dual wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850 nm/900 nm
Capable of over 70m transmission on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
Without digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure
Support 40G/100Gbps

APPLICATIONS

100 Gigabit Ethernet interconnects

Datacom/Telecom switch & router connections

QSFP SERIES

Part Number	Product Description
HL-QSFP-40G-SR4	QSFP+,40Gb/s, 40GBASE-SR4, MMF, 850nm, 150M
HL-QSFP-40G-LR4	QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM
HL-QSFP-40G-ER4	QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM
HL-QSFP28-100G-SR4	QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 150M
HL-QSFP28-100G-LR4	QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM
HL-QSFP28-100G-ER4	QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM
HL-QSFP28-100G-ZR4	QSFP+, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM

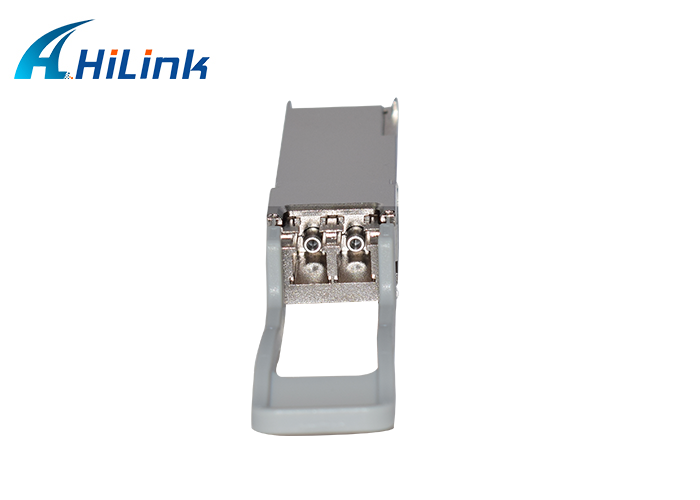

PRODUCT PICTURE SHOW

TRANSCEIVER BLOCK DIAGRAM

FAQ:

Q: Do you sell second-hand products?

A: No.All our products are brand new,we never use secont-hand components.

Q: What payment terms do you accept?

A: T/T,Paypal,Western Union are acceptable.

Q: What are the shipping ways can you offer?

A: Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

Q: Do your products come with warranty?

A: Yes,We provide 3 years warranty for all our products from the date of shipment.

Q: How to place an order?

A: 1> Order details confirmed,please tell us the model and quantity you need.
2> Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3> Confirm and ship the goods, then tracking number will be sent to you promptly.
4> We will help to track your goods until you receive them safely.
