    ZR 80KM LC SFP+ Transceiver Module 10GBASE 1550nm EML Single Mode 1.5W

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-SFP10G-80
    Certification : CE FCC
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 3000 pcs per Week
    Delivery Time : 1-6 days
    • Product Details
    • Company Profile

    ZR 80KM LC SFP+ Transceiver Module 10GBASE 1550nm EML Single Mode 1.5W

    10G 80km ZR 80km SFP Compatible Brand 10GBASE SFP 1550nm ZR 80KM LC SFP+ 80KM


    HILINKs’ HLSP551XL-C(I)D80 transceivers are Enhanced Small Form Factor Pluggable SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 80km of G.652 single mode fiber. They are compliant with SFF-8431, SFF-8432 and support 10G Ethernet ZR and 10G Fibre Channel.Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecommunication and datacom.


    Features:

    Supports 9.95 to 11.3Gb/s bit rates with Dual CDR

    Duplex LC connector

    Hot pluggable SFP+ footprint

    Cooled 1550nm EML transmitter, APD receiver

    Applicable for 80km SMF connection

    Low power consumption, < 1.5W

    Digital Diagnostic Monitor Interface

    Optical interface compliant to IEEE 802.3ae 10GBASE-ZR

    Electrical interface compliant to SFF-8431,SFF-8432

    Operating case temperature:

    Commerical:0 to 70 °C

    Industrial:-5 to 80 °C


    Applications:

    10GBASE-ZR at 10.3125Gbps

    OTN G.709 OTU1e/2/2e

    4x, 8x and 10x 10G Fiber Channel

    Other optical links


    10G Transceiver:

    SFP-10G-MM-SR10G850nm300M0~70
    SFP-10G-LR10G1310nm10KM0~70
    SFP-10G -ER10G1550nm40KM0~70
    SFP-10G-ZR-8010G1550nm80KM0~70
    SFP-10G-ZR-10010G1550nm100KM0~70
    SFP-10G-ZR-12010G1550nm120KM0~70

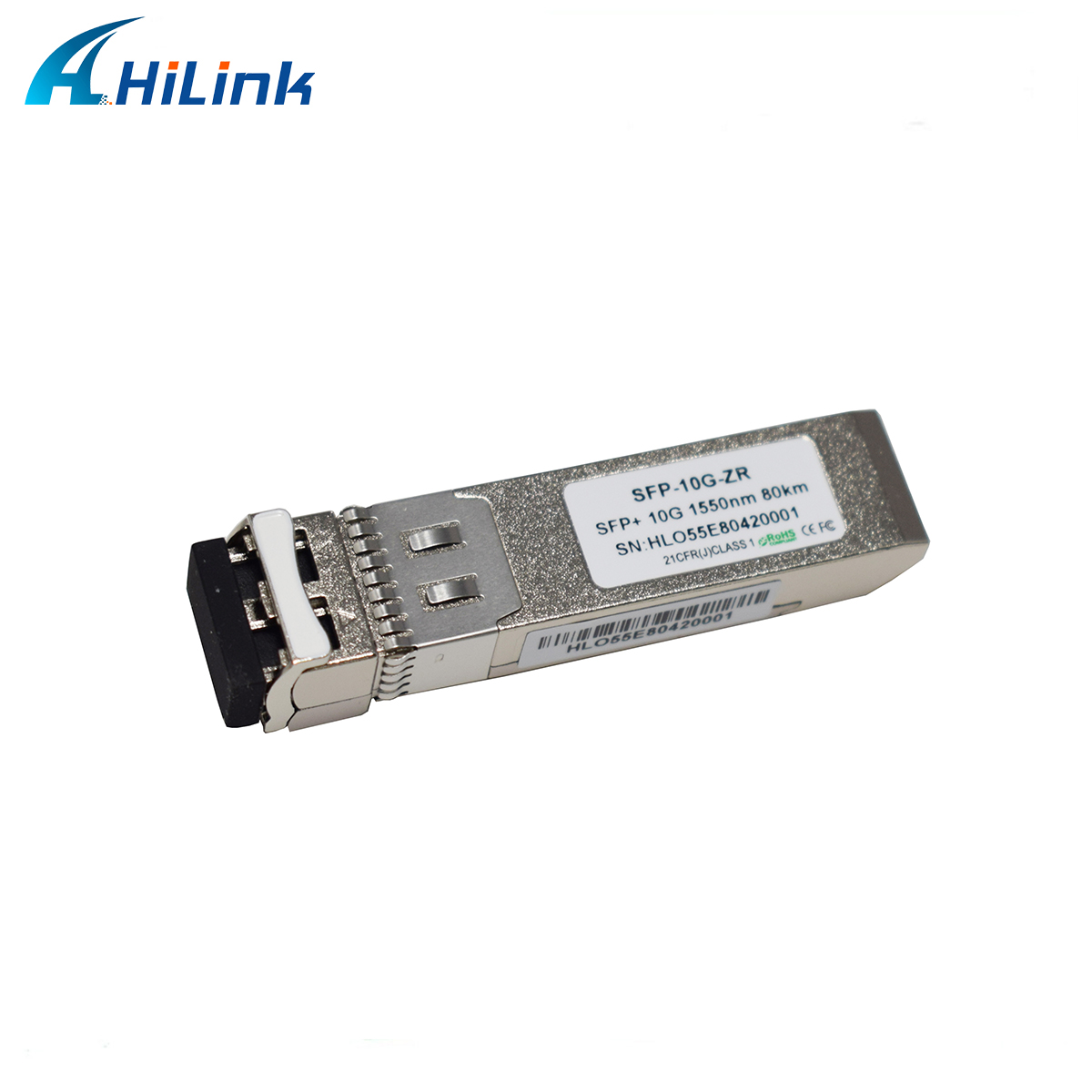

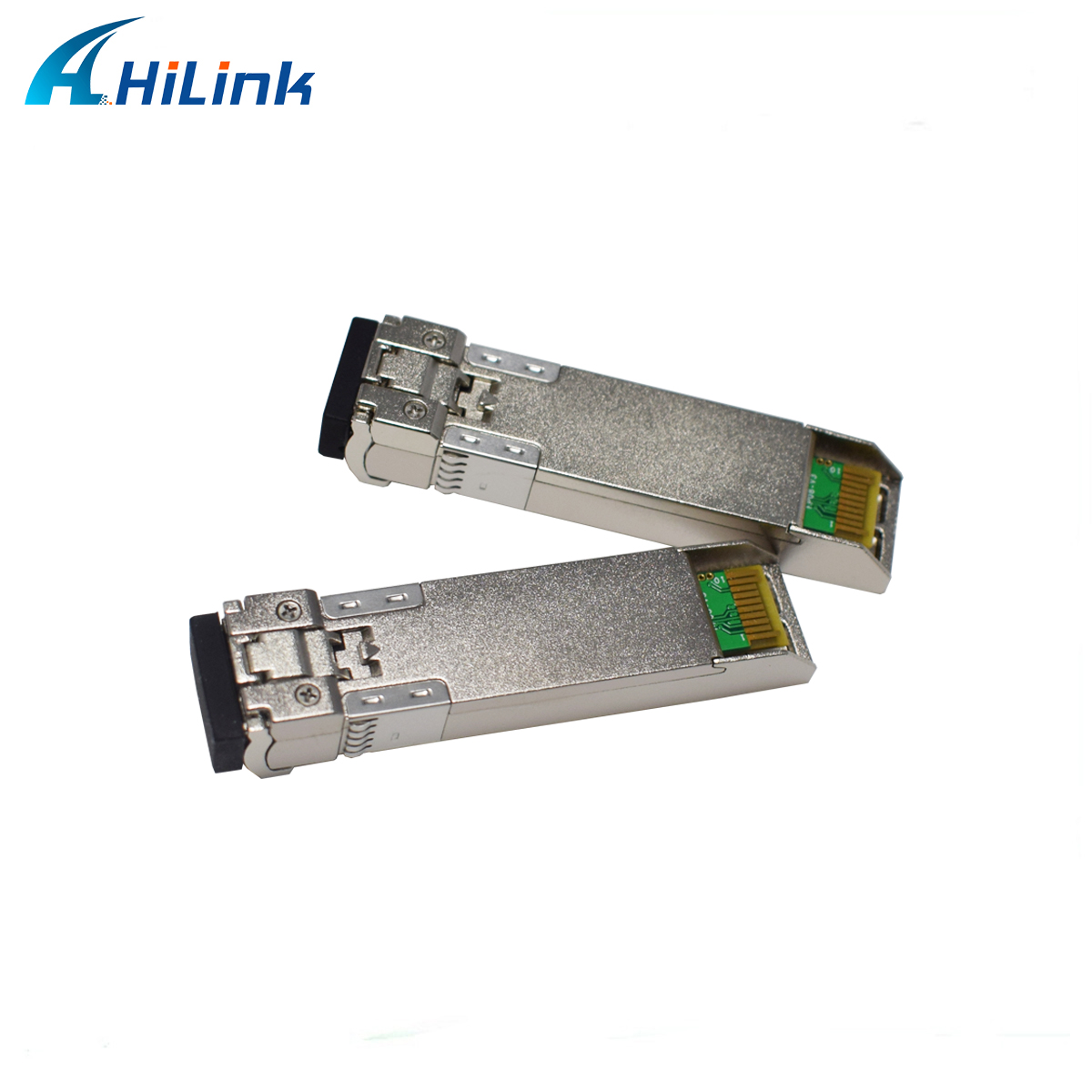

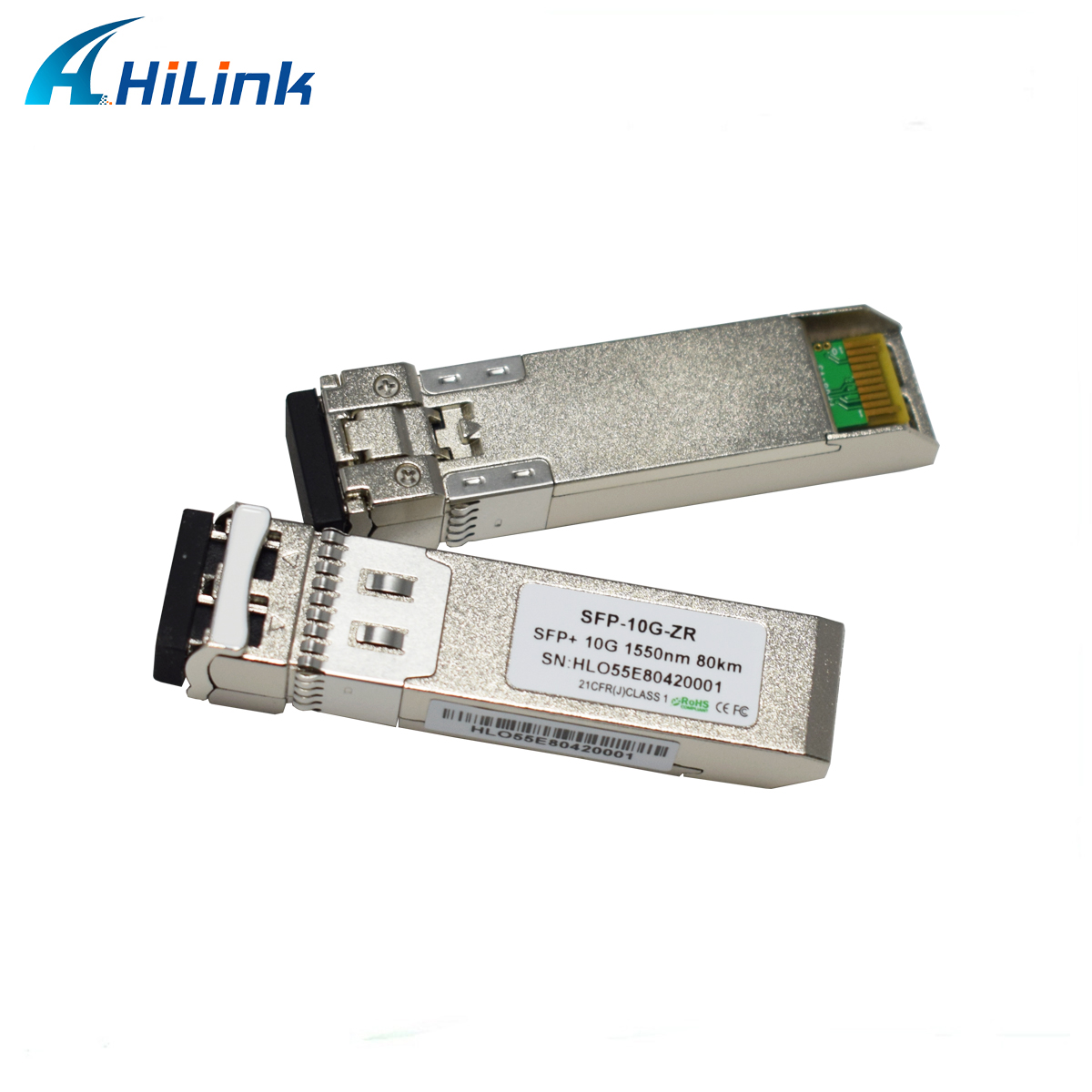

    Product Show:


    ZR 80KM LC SFP+ Transceiver Module 10GBASE 1550nm EML Single Mode 1.5W

    Quality ZR 80KM LC SFP+ Transceiver Module 10GBASE 1550nm EML Single Mode 1.5W for sale
