    1550nm SMF Optical Transceiver Module SFP+ 120KM LC DDM Duplex

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : 10G-ZR-1550-120KM
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Delivery Time : 1-3 days
    • Product Details
    • Company Profile

    1550nm SMF Optical Transceiver Module SFP+ 120KM LC DDM Duplex

    10GBASE-ZR 120KM SFP+ 10GBASE 120KM LC 1550nm Transceiver Module


    Features:

    0 to +2400 ps/nm Dispersion Tolerance (~120km reach without dispersion compensation)

    Supports 9.95 to 11.3Gb/s bit rates

    Hot-Pluggable

    Duplex LC connector

    1550nm cooled CML transmitter, APD photo-detector

    SMF links up to 120km

    2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface

    Power Supply :+3.3V

    Power consumption<1.8W

    Temperature Range: 0~ 70°C

    RoHS compliant

    Application:

    10GBASE-ZR/ZW Ethernet

    SONET OC-192 / SDH

    10G Fibre channel


    General
    HILINK's HLPG120D is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The HLPG120D converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
    The high performance 1550nm cooled CML transmitter and high sensitivity APD receiver provide superior performance for Ethernet applications at up to 120km links.
    The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-ZR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
    The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.

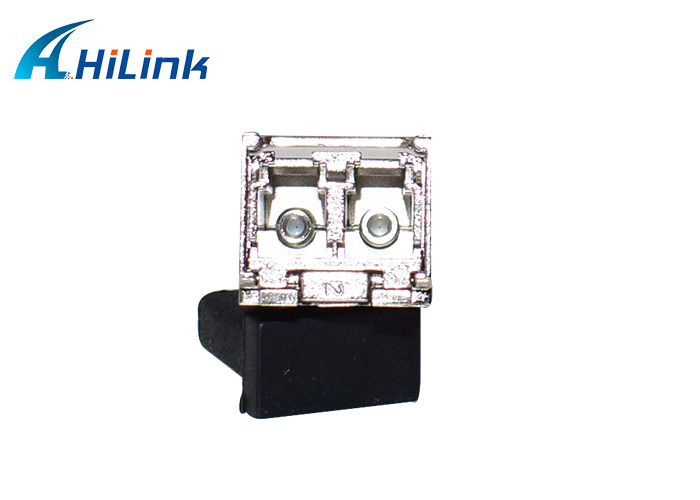

    Picture show

    Optical Parameters(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)

    ParameterSymbolMin.TypicalMax.UnitNote
    Transmitter Section:
    Center Wavelengthλt153015501565nm
    spectral width△λ0.3nm
    Average Optical PowerPavg0+5dBm1
    Optical Power OMAPoma-2.1dBm
    Laser Off PowerPoff-30dBm
    Extinction RatioER8.2dB
    Transmitter Dispersion PenaltyTDP3.0dB2
    Relative Intensity NoiseRin-128dB/Hz3
    Optical Return Loss Tolerance21dB
    Receiver Section:
    Center Wavelengthλr12601600nm
    Receiver SensitivitySen-24dBm4
    Los AssertLOSA-34-dBm
    Los DessertLOSD-24dBm
    Los HysteresisLOSH0.5dB
    OverloadSat-7dBm5
    Receiver ReflectanceRrx-26dB

    Note:

    1. Average power figures are informative only, per IEEE802.3ae.

    2. TWDP figure requires the host board to be SFF-8431compliant. TWDP is calculated using the Matlab code provided in clause 68.6.6.2 of IEEE802.3ae.

    3. 12dB reflection.

    4. Conditions of stressed receiver tests per IEEE802.3ae. CSRS testing requires the host board to be SFF-8431 compliant.

    5. Receiver overload specified in OMA and under the worst comprehensive stressed condition.


    Mechanical Dimensions
