Dispersion Compensating Fiber Module DCM 20km LC

Product Description :

Advanced dispersion compensating module (ADCM) can compensate the dispersion and dispersion slope at C-band for standard single-mode fiber(G.652) and the system residual dispersion is optimized.

Dispersion values varying from -10 to -2100 ps/nm at 1550nm wavelength. Other center wavelength and dispersion values are available as requested.

Applications:

- Long-haul telecommunication systems with standard single-mode fiber (G.652)

- DWDM transmission systems

- SDH transmission system

- Cable AM television video systems

- Dispersion adjusting

Features:

-Optimized residual dispersion and broadband dispersion compensation in DWDM system

- Slope compensation of G.652 fiber in C-band (Typical)

- Low insertion loss

- Low Polarization Mode Dispersion

- Features Telcordia GR-2854-CORE qualified

- Reliability Telcordia GR-1221-CORE qualified

-Different package styles, connector types and pigtail lengths available

Dispersion Compensation and Dispersion Slop Compensation To compensate dispersion at a specific wavelength, there is following equation:

DTF×LTF +DDCF×LDCF = 0

DTF: the dispersion of the transmission fiber.

LTF: the length of the transmission fiber.

DDCF: the dispersion of the dispersion compensating fiber.

LDCF: the length of the dispersion compensating fiber.

For dispersion slope compensation, there is:

STF×LTF +SDCF×LDCF = 0

STF: the dispersion slope of the transmission fiber.

SDCF: the dispersion slope of the dispersion

compensating fiber.

By combining the above two equations, we have follow equation to get both dispersion anddispersion slope compensation:

RDSDCF = SDCF / DDCF = STF / DTF

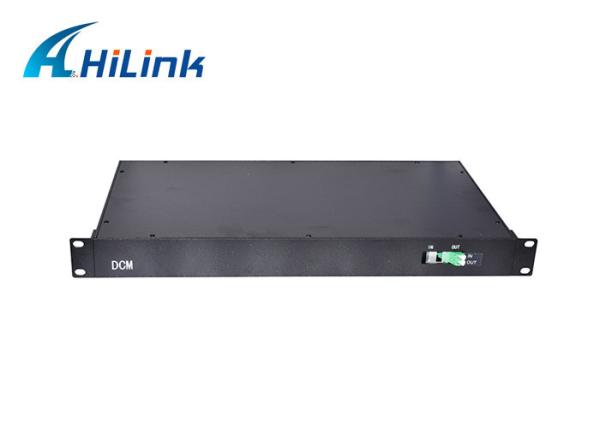

Product Pictures:
