    XENPAK-10G85-SR XENPAK 10GBASE SR SFP+ Transceiver Multi Mode 300m Dual SC Connector

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-XENPAK-10G85-SR
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 3000 pairs per Week
    Delivery Time : 1-4 days
    • Product Details
    • Company Profile

    XENPAK-10G85-SR XENPAK 10GBASE SR SFP+ Transceiver Multi Mode 300m Dual SC Connector

    XENPAK-10G85-SR 10Gbps XENPAK SR SC Transceiver Multi Mode 300m


    General

    The XENPAK Module is a highly integrated, Serial optical transponder module for high-speed, 10Gbit/s data transmission applications. 4×3.125Gbps Ethernet Signal Input by XAUI Interface.An integrated Coder / Decoder and multiplexer / demultiplexer (SERDES: Serializer / Deserializer). Designing for 10GBASE-LR Transmission with a Vertical Cavity Surface Emitting Laser at 850nm. The transponder operates within a wide case temperature range of 0°C to +70°C and offers optimum heat dissipation and excellent electromagnetic shielding which enables high port densities for 10 GbE systems. A 70 pin electrical connector and a duplex SC connector optical interface assure that connectivity is compliant to the XENPAK MSA Rev.3.0.


    Features

    Compatible with XENPAK MSA Rev.3.0
    Support of IEEE802.3ae up to 300m (OM3 MMF)
    Power Consumption 1.8W (typ.)
    Temperature Range 0 to 70°C
    Vertical Cavity Surface Emitting Laser at 850nm (VCSEL)
    Adaptable Power Supply (APS:+1.2V)
    SC duplex connector
    Hot pluggable 70-pin connector with XAUI electrical interface
    Management and control via MDIO 2-wire interface
    Compatible with RoHS

    Application

    10GBASE SR 10G Ethernet


    Order information:

    Part NumberProduct Description
    XENPAK-10G85-SR10.3125Gbps Xennpak SR, 850nm, 300m (OM3 MMF), SC, 0ºC ~ +70ºC

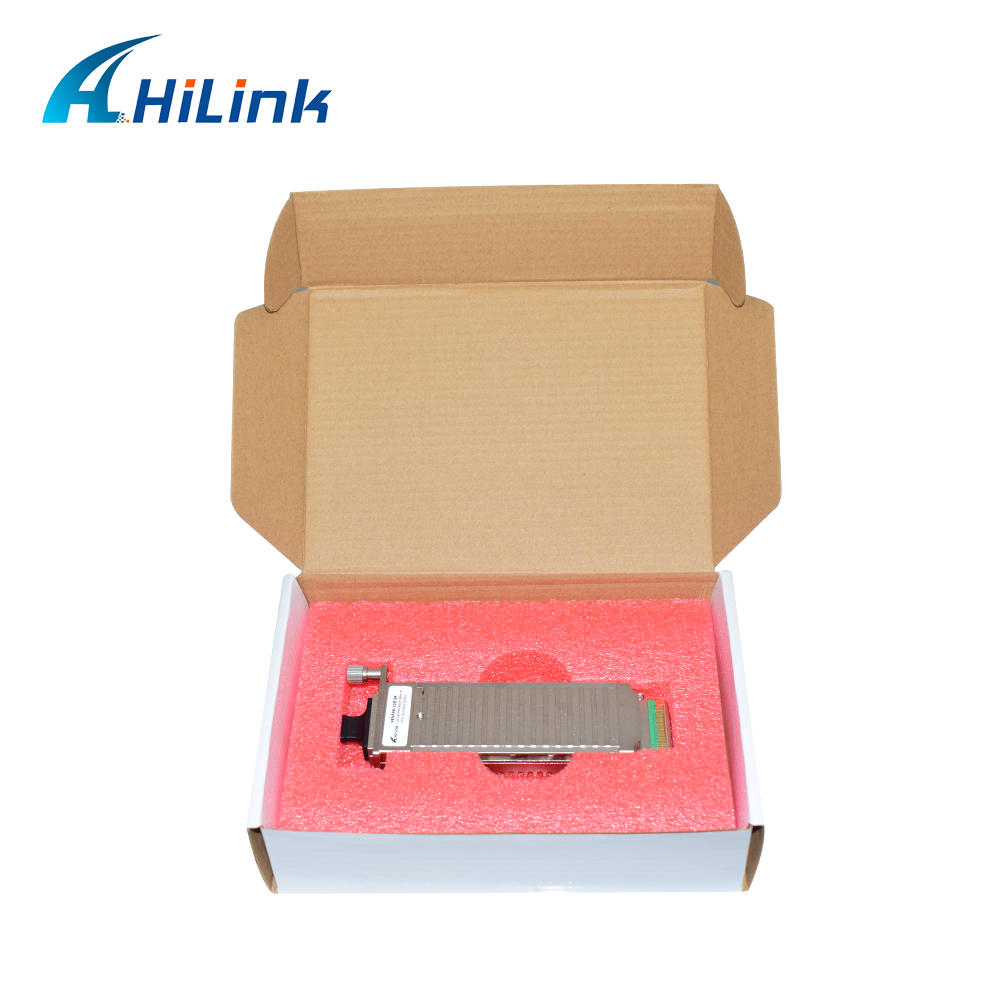

    Product Picture

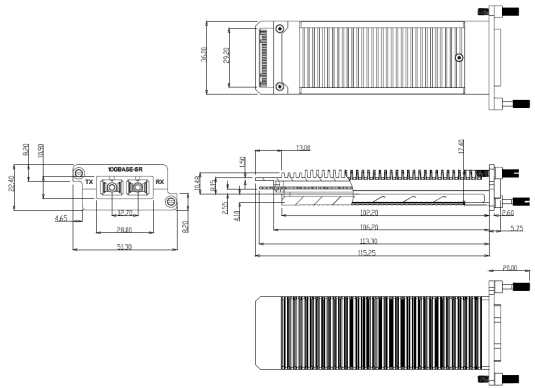

    Package Dimensions

    .


    Company information

    Shenzhen Hilink Technology Co., Ltd. which is specialized in manufacturing and marketing fiber optic products, was founded in 2007.

    RoHS, ISO&CE cerificated, we are golden supplier which specializes in this field 10 years with superior quality, competitive price and good solution.

    Our core competencies are fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.

    We have an independent Research&Development Department with 8 skillful engineers, with some advanced equipments and devices, such as switch and routers, for further detailed test and procedure.

    We also have related optical products and good solutions to satisfy customers' requirements.

    New and old customers are warmly welcomed to visit our fctory and office for further cooperation.
    Hope to build up a business relation with you.

    FAQ


    Q:Do you sell second-hand products?

    A:No.All our products are brand new,we never use secont-hand components.


    Q:What payment terms do you accept?

    A:T/T,Paypal,Western Union are acceptable.


    Q:What are the shipping ways can you offer?

    A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.


    Q:Do your products come with warranty?

    A:Yes,We provide 3 years warranty for all our products from the date of shipment.


    Q:How to place an order?

    A:1>Order details confirmed,please tell us the model and quantity you need.
    2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
    3>Confirm and ship the goods, then tracking number will be sent to you promptly.
    4>We will help to track your goods until you receive them safely.


    As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will reply shortly.
