    100Gb/S QSFP28 DR1 Optical Transceiver Single Lambda 1310nm 500M With FEC HLQSFP28-100G-DR1

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-QSFP28-100G-DR1
    Certification : CE FCC Rohs
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union.Paypal
    Supply Ability : 100/PCS/MONTH
    • Product Details
    • Company Profile

    100Gb/S QSFP28 DR1 Optical Transceiver Single Lambda 1310nm 500M With FEC HLQSFP28-100G-DR1

    100Gb/s QSFP28 DR1 Single Lambda 1310nm 500M With FEC Optical Transceiver
    General:
    This product is a transceiver module designed for 500m optical communication applications. The module incorporates one channel optical signal, on 1310nm center wavelength, operating at 50Gbaud data rate. The transmitter path incorporates an EML Driver and a cooled EML together. On the receiver path, the input optical signal is coupled to a Pin photodiode detector. A DSP based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signal. Also a 4-channel retimer and FEC block are integrated in this DSP. The electrical interface is compliant with IEEE 802.3cd and QSFP28 MSA in the transmitting and receiving directions, and optical interface is compliant to IEEE 802.3cd and 100G Lambda MSA with Duplex LC connector. The module has a maximum power consumption of 4.5W.
    The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
    Product Features:
    QSFP28 MSA compliant
    Supports 53.125Gbaud
    IEEE 802.3cd 100GBASE-DR Specification compliant
    Up to 500m transmission on single mode fiber (SMF) with FEC
    Operating case temperature: 0 to 70oC
    4x25G electrical interface (OIF CEI-28G- VSR)
    Maximum power consumption 4.5W
    LC duplex connector
    RoHS compliant
    Applications:
    Data Center Interconnect
    100G Ethernet
    Enterprise networking
    Order Information:

    HLQSFP28-100G-DR1

    100G QSFP28 DR 500m Single Lambda with FEC optical transceiver with full real-time digital diagnostic monitoring and pull tab

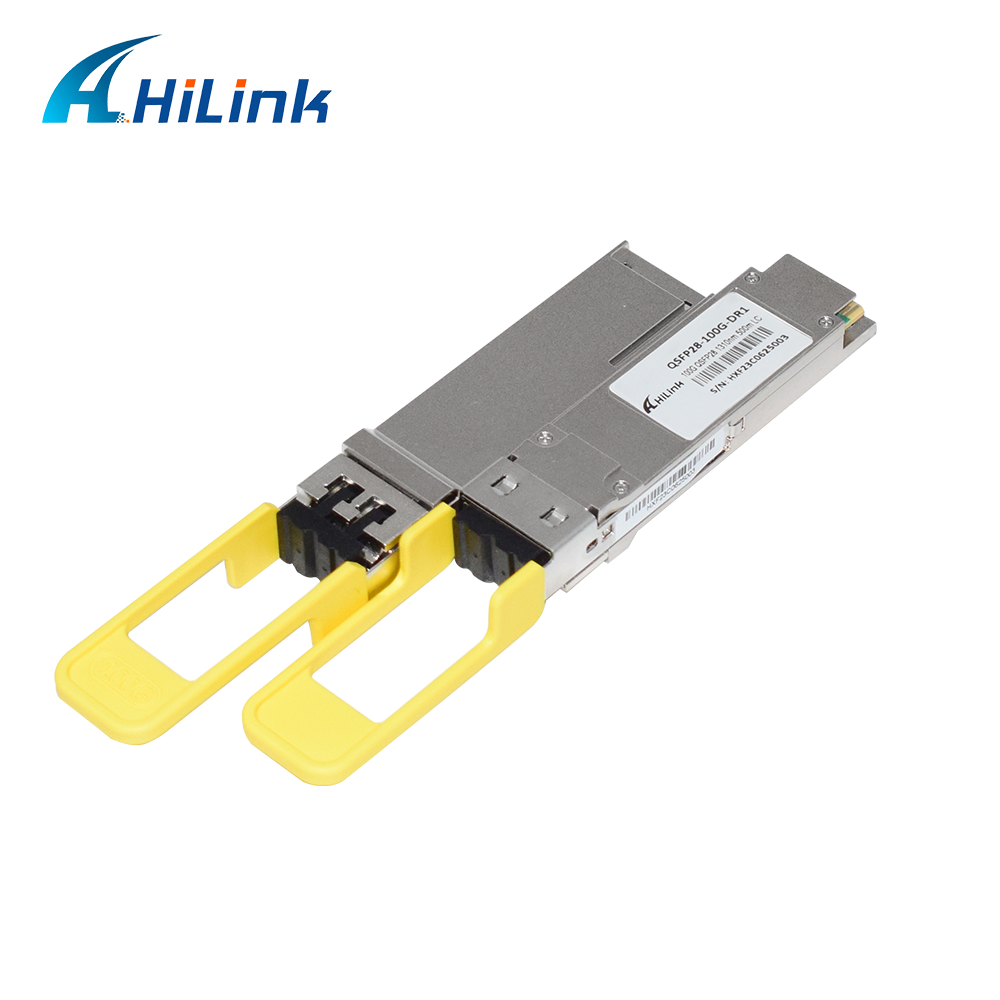

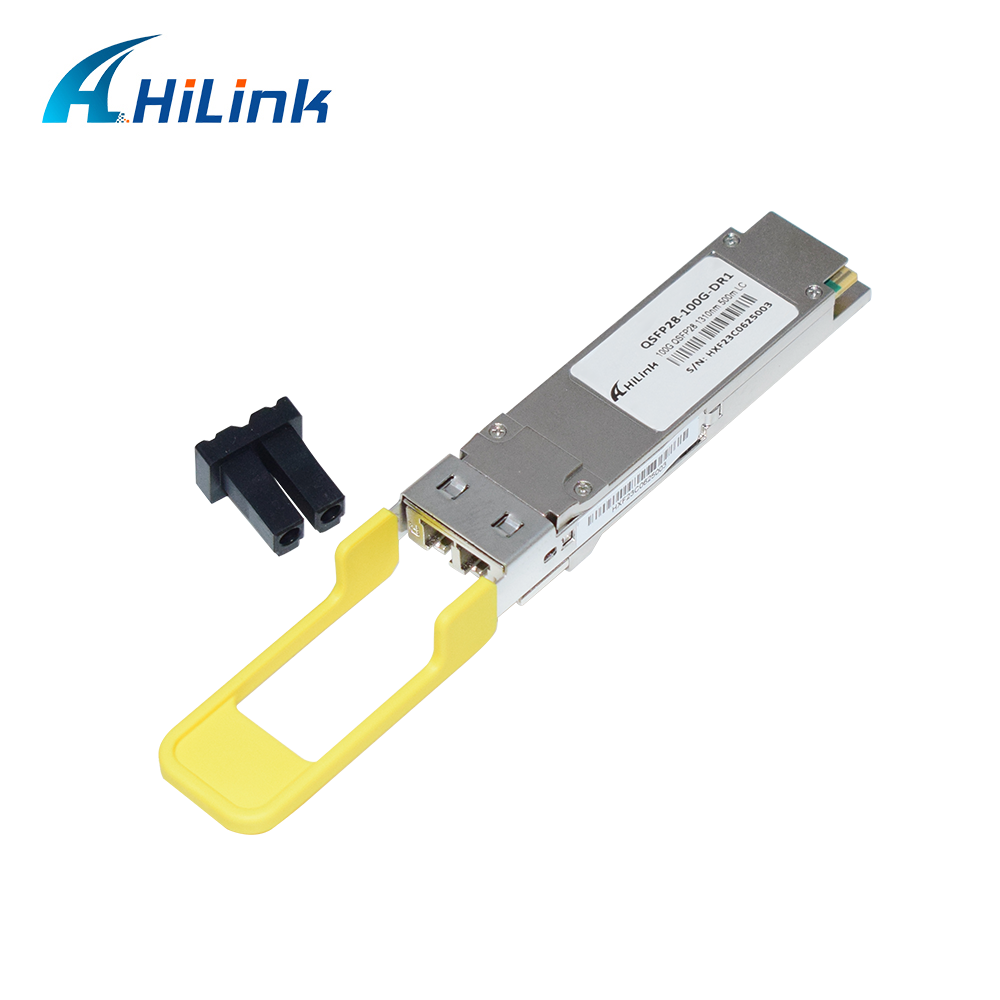

    Product Picture Show:

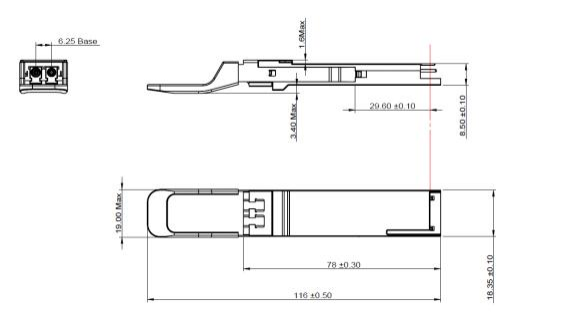

    Mechanical Dimensions:
