100Gb/s QSFP28 ER 30KM BIDI Single Lambda Optical Transceiver
QSFP28-100G-BXU30/QSFP28-100G-BXD30
General
This product is a transceiver module designed for 30km optical
communication applications. The module incorporates one channel
optical signal, on 1304/1309nm center wavelength, operating at
50Gbaud PAM4 data rate.
The transmitter path incorporates an EML Driver and a cooled EML
together . On the receiver path, the input optical signal is
coupled to a APD photodiode detector. A DSP based gearbox is used
to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signal. Also a
4-channel retimer and FEC block are integrated in this DSP. The
electrical interface is compliant with IEEE 802.3-2022 and QSFP28
MSA in the transmitting and receiving directions, and optical
interface is compliant to IEEE 802.3cd and 100G-ER1- 30 in 100G
Lambda MSA standard. The module has a maximum power consumption of
4.5W.
The product is designed with form factor, optical/electrical
connection and digital diagnostic interface according to the QSFP28
Multi-Source Agreement (MSA). It has been designed to meet the
harshest external operating conditions including temperature,
humidity and EMI interference.
Product features
QSFP28 MSA compliant
Supports 53.125Gbaud PAM4 Data rate
100G Lambda MSA 100G-ER1-30 specification compliant
Up to 30km transmission on single modefiber (SMF) with KP4 FEC
1304nm(Upstream)/1309nm(Downstream) EML Laser and APD Receiver
Operating case temperature: 0 to 70oC
4x25G NRZ electrical interface (OIF CEI-28G- VSR)
Maximum power consumption 4.5W
Single LC Connector for bi-directional application
RoHS compliant
Application
Data Center Interconnect
100G Ethernet
Enterprise networking
Order information
Part No. | Data Rate | Laser | Fiber Type | Distance | Optical Interface | Temp | DDMI | Latch Color |
HLQSFP28-100G-BXU30 | 106.25Gbps | Tx1304/Rx1309 | SMF | 30km | LC | 0~70C | Y | Green |
HLQSFP28-100G-BXD30 | 106.25Gbps | Tx1309/Rx1304 | SMF | 30km | LC | 0~70C | Y | Blue |

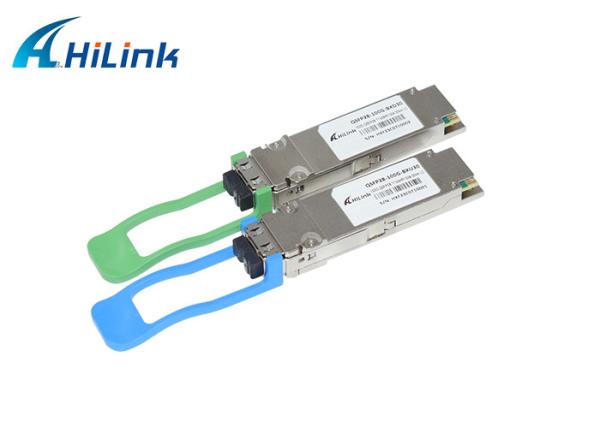

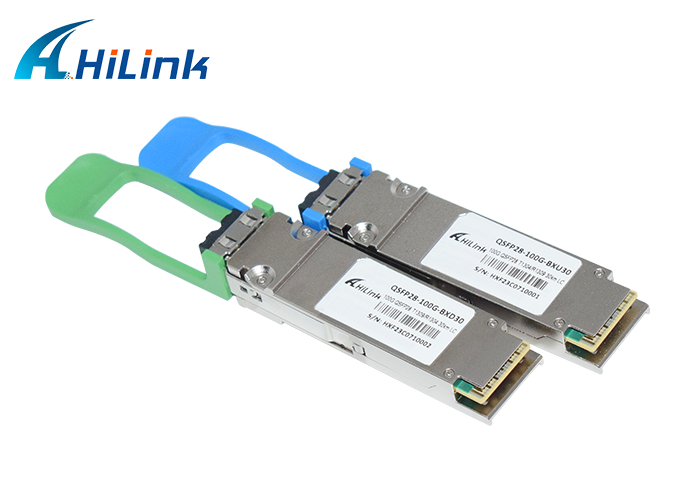

Product picture show
