FWDM Filter Mini ABS Box TX1550 RX 1310nm 1490nm SC UPC SC APC

Ask Lasest Price
Brand Name :	Hilink
Model Number :	HL-FWDM-T5/R34
Certification :	CE FCC Rohs
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram,Paypal
Supply Ability :	200PCS/month

Add to Cart

Product Details
Company Profile

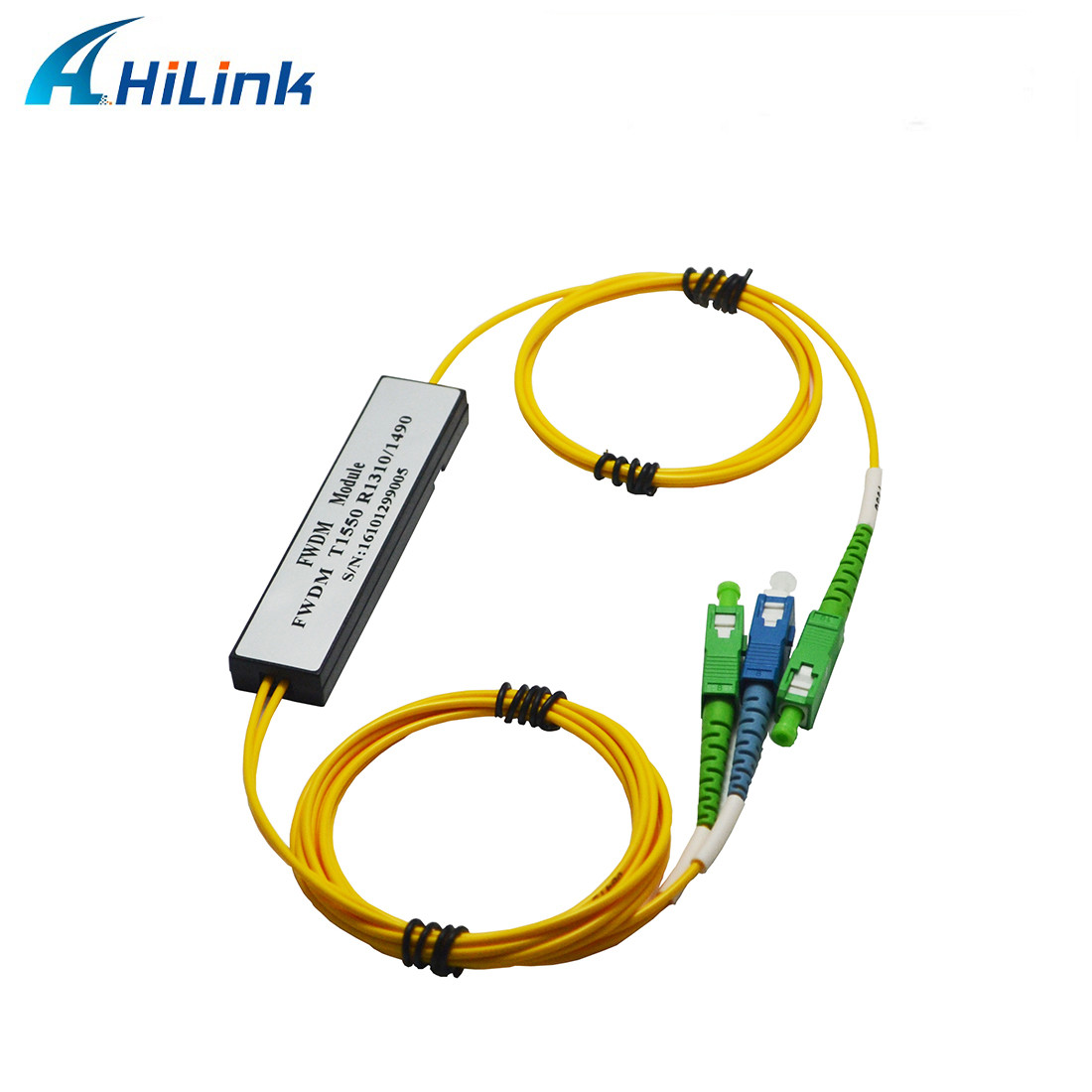

FWDM Filter Mini ABS Box TX1550 RX 1310nm 1490nm SC UPC SC APC

FWDM Filter Mini ABS Box TX1550 RX 1310nm 1490nm SC UPC SC APC

FWDM Filter ABS Box TX1550 RX 1310/1490nm SC/UPC SC/APC

WDM Filter is an ideal solution for high power optical amplification system and WDM network.
It based on Thin Film Filter F(TFF) technology, and be used in EDFA, Raman amplifiers, WDM networks and fiber opticsdevice.
Hilink provides single mode and multimode WDM filter.

Features

* Wide Wavelength Range

* Low Insertion Loss

* High Channel Isolation

* High stability and reliabilit

Parameter			FWDM 3/45
Pass Band Wavelength Range (nm)			1260 - 1360
Reflection Band Wavelength Range (nm)			1480-1620
Insertion Loss (dB)		Reflect Channel	≤ 0.6
		Pass Channel	≤ 0.8
Channel Ripple(dB)			< 0.3
Isolation(dB)	Reflect Channel		> 15
	Pass Channel		> 30
Insertion Loss Temperature Sensitivity (dB/℃)			< 0.005
Polarization Dependent Loss (dB)			< 0.1
Polarization Mode Dispersion (ps)			< 0.1
Directivity (dB)			> 50
Return Loss (dB)			> 50
Maximum Power Handling(mW)			500
Operating Temperature (℃)			0 ~ + 70
Storage Temperature (℃)			- 40 ~ + 85
Package Dimension (mm)			ABS box L90xW20xH9.5(for 2.0 mm or 3.0mm Cable) 38*5.5 steel tube 0.9mm tube

*Above insertion loss is not included the connectors and PC is added 0.2dBm, APC is added 0.3dBm .

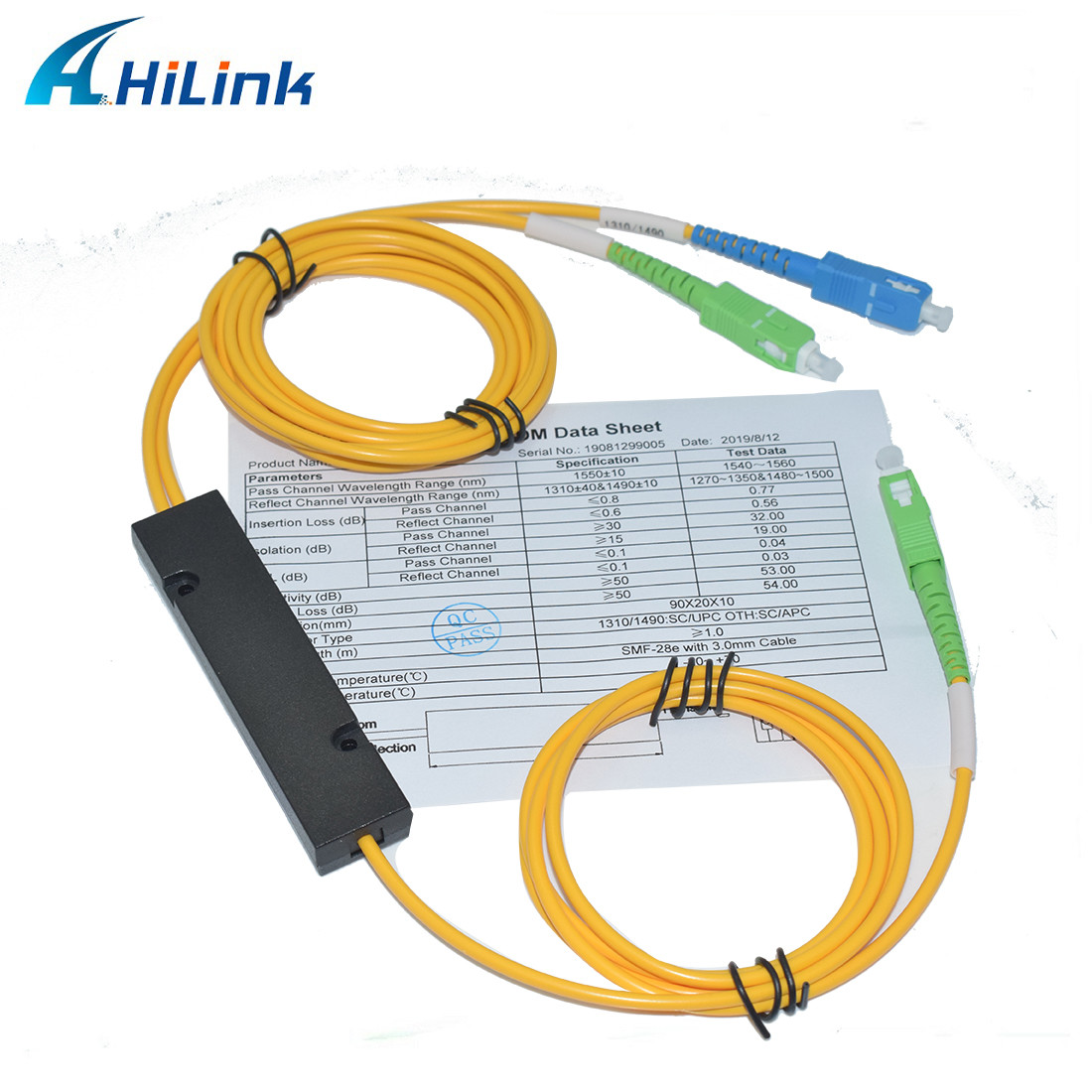

Details Images

Hilink Advantages

1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.

FAQ

1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.

2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.

3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .

4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
