1.25G 120KM 1000BASE 1550nm SMF GLC-ZX-SM Optical Module LC SFP
Transceiver DOM
General:
120km Small Form Factor Pluggable (SFP) transceivers are compatible
with the Small Form Factor Pluggable Multi-Sourcing Agreement
(MSA). They simultaneously comply with Gigabit Ethernet as
specified in IEEE STD 802.3 and 1x Fibre Channel as defined in
FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.
Features:
Up to 1.25Gb/s dual data links
Hot-pluggable SFP footprint
1550nm DFB laser transmitter
APD Receiver
Duplex LC connector
Up to 120km on 9/125µm SMF
Metal enclosure for lower EMI
Single +3.3V power supply
Low power dissipation <700mW
Commercialoperating temperature range: 0°C to+70°C
Applications:
Gigabit Ethernet
1.06 Gb/s Fibre Channel
1000Base Transceiver Series:
| GLC-SX | 100BASE-SX SFP 850nm LC 550M |
| GLC-LX/LH | 100BASE-LH SFP 1310nm LC 10KM |
| GLC-EX-1310 | 100BASE-EX SFP 1310nm LC 40KM |
| GLC-EX-1550 | 100BASE-EX SFP 1510nm LC 40KM |
| GLC-ZX | 100BASE-ZX SFP 1550nm LC 80KM |
| GLC-ZX-120 | 100BASE-ZX SFP 1510nm LC 120KM |
| GLC-ZX-160 | 100BASE-ZX SFP 1550nm LC 160KM |
| GLC-ZX-200 | 100BASE-ZX SFP 1510nm LC 200KM |

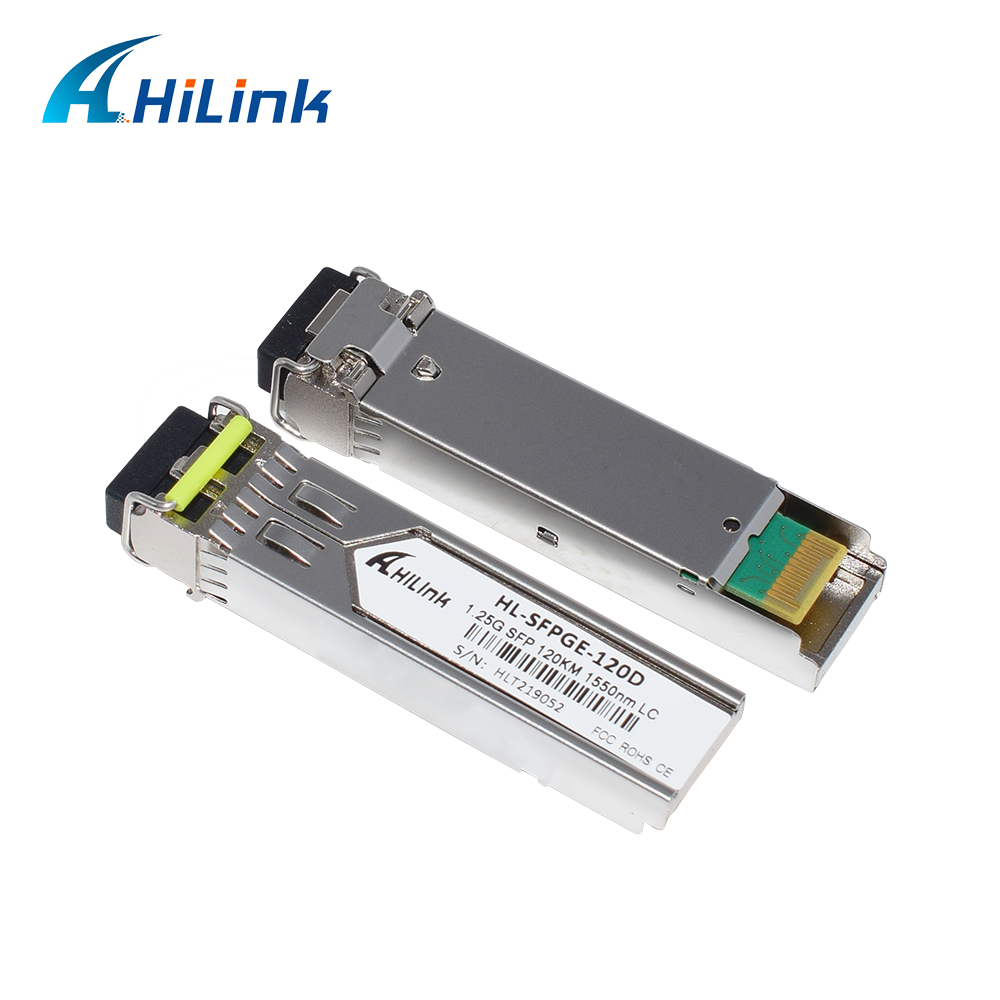

Product Picture:
Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)Os
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Transmitter | | | | | | |
| Output Opt. Power | PO | 0 | - | +5 | dBm | 1 |
| Optical Wavelength | λ | 1540 | - | 1570 | nm | |
| Spectral Width | σ | - | - | 1 | nm | |
| Optical Rise/Fall Time | tr/tf | - | 170 | 260 | ps | 2 |
| Deterministic Jitter Contribution | TXΔDJ | - | - | 0.07 | UI | 3 |
| Total Jitter Contribution | TXΔTJ | - | - | 0.007 | UI | |
| Optical Extinction Ratio | ER | 9 | - | - | dB | |
| Receiver | | | | | | |
| Average Rx Sensitivity | RSENS | - | - | -32 | dBm | 4 |
| Maximum Received Power | RXMAX | -9 | - | - | dBm | |
| Optical Center Wavelength | λC | 1270 | - | 1600 | nm | |
| LOS De-Assert | LOSD | - | - | -32 | dBm | |
| LOS Assert | LOSA | -45 | - | - | dBm | |
| LOS Hysteresis | | 0.5 | - | - | dB | |
Notes:
1. Class 1 Laser Safety.
2. Unfiltered, 20-80%.
3. Measured with DJ-free data input signal .In actual application,
output DJ will be the sum of input DJ and ΔDJ.
4. Measured with PRBS 27-1 at 10-12 BER .
