    100G QSFP28 Optical Transceiver Module LR4 1310nm 25KM 4 Channels LAN WDM Dual LC 25KM Ethernet

    Ask Lasest Price
    Brand Name : HILINK
    Model Number : HL-QSFP28-LR4-25
    Certification : CE FCC RoHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 100PCS Per Day
    Delivery Time : 3-5 Working Days
    • Product Details
    • Company Profile

    100G QSFP28 Optical Transceiver Module LR4 1310nm 25KM 4 Channels LAN WDM Dual LC 25KM Ethernet


    100G QSFP28 LR4 1310nm 25KM 4 Channels LAN WDM Dual LC 25KM Ethernet Module


    This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s or 27.9GB/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm


    Item No.HL-QSFP28-LR4-25Vendor NameHilink
    Form TypeQSFP28Max Data Rate100Gbps
    Wavelength1296,1300,1305,1309 nmMax Cable Distance25KM
    InterfaceLC DuplexDOM SupportYes
    Cable TypeSMFCommercial Temperature Range0 to 70°C (32 to 158°F)

    Features


    • Duplex LC receptacle optical interface
    • Single +3.3V power supply
    • Hot-pluggable QSFP28 MSA form factor
    • 4x28G Electrical Serial Interface (CEI-28G-VSR)
    • AC coupling of CML signals
    • Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
    • Receiver: 4x25Gb/s PIN ROSA
    • Low power dissipation (Max: 4W)
    • Built in digital diagnostic function
    • Operating case temperature range:0℃ to 70℃
    • Compliant with 100GBASE-LR4
    • I2C Communication Interface

    Applications


    • 100GBASE-LR4
    • Infiniband QDR and DDR interconnects
    • 100G Datacom connections

    Standards


    • Compliant with IEEE 802.3ba
    • Compliant with QSFP28 MSA hardware specifications
    • Compliant with RoHS

    Compatibility

    • Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

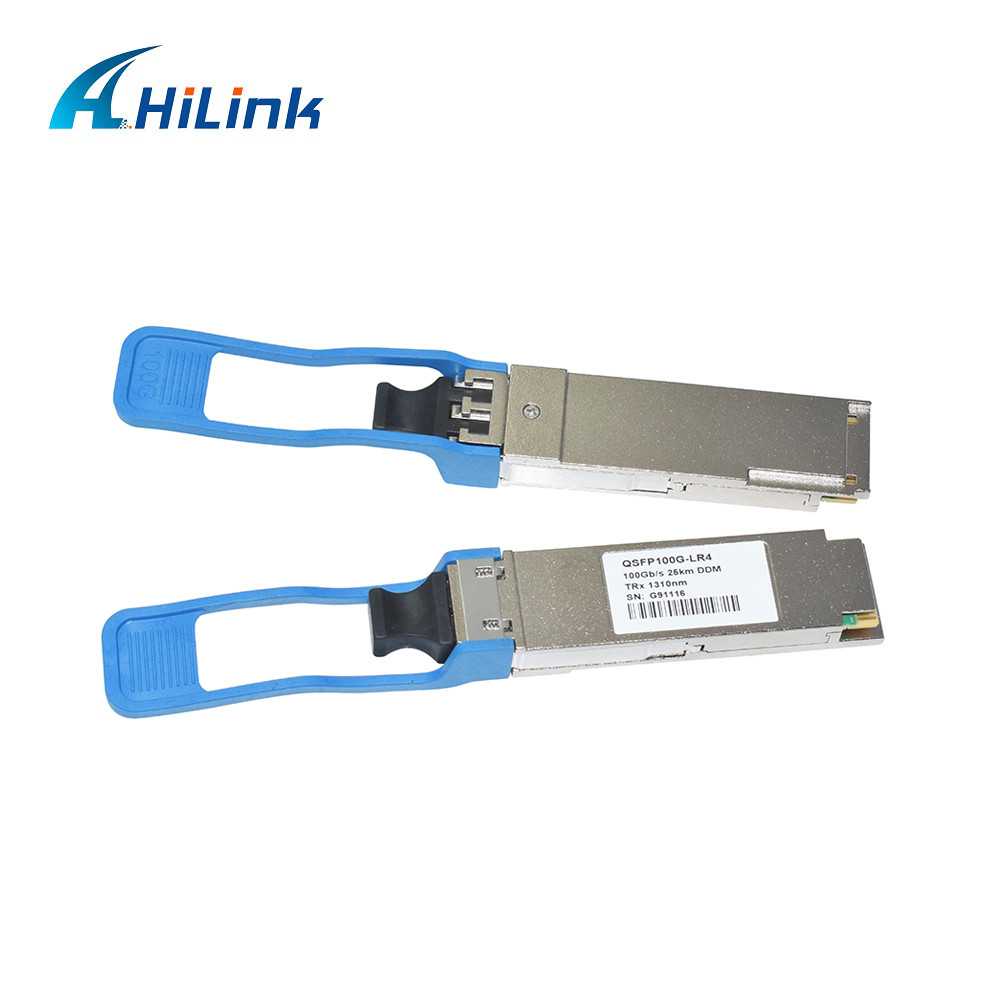

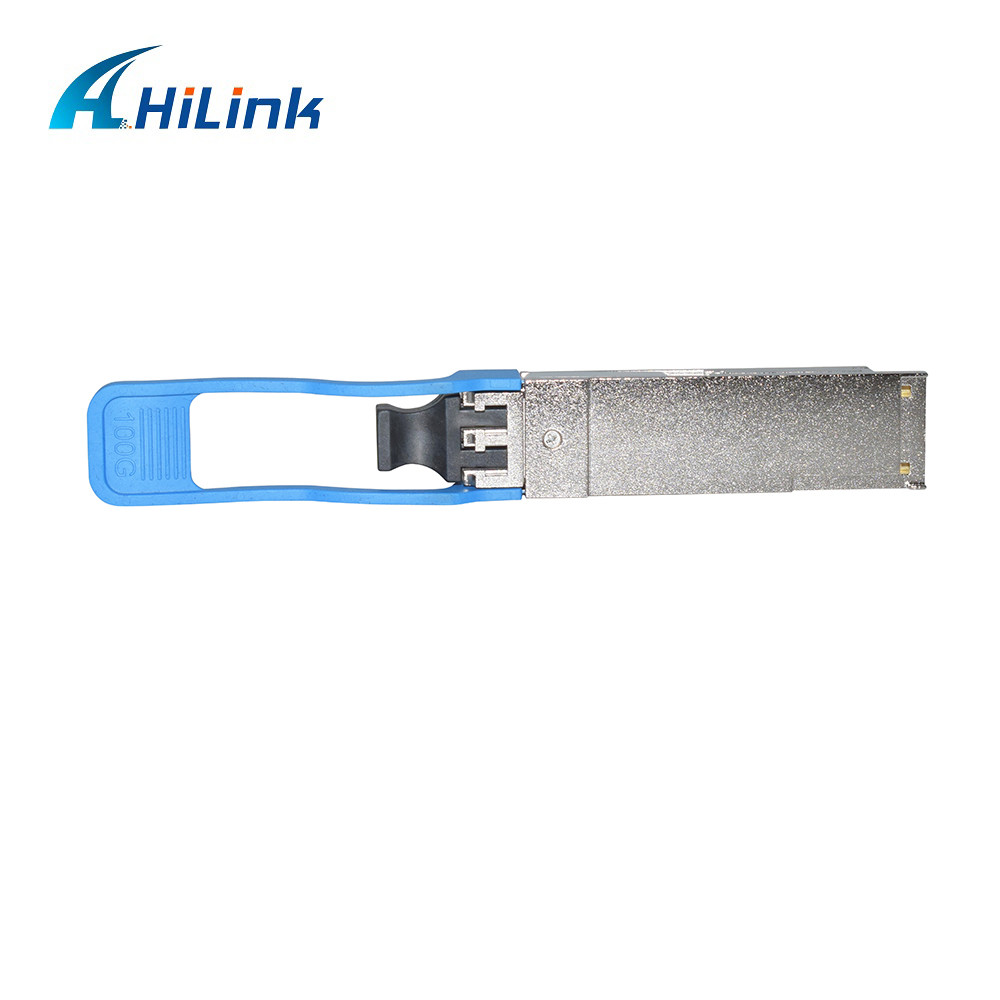

    Details Photos


    100G QSFP28 Optical Transceiver Module LR4 1310nm 25KM 4 Channels LAN WDM Dual LC 25KM Ethernet100G QSFP28 Optical Transceiver Module LR4 1310nm 25KM 4 Channels LAN WDM Dual LC 25KM Ethernet100G QSFP28 Optical Transceiver Module LR4 1310nm 25KM 4 Channels LAN WDM Dual LC 25KM Ethernet100G QSFP28 Optical Transceiver Module LR4 1310nm 25KM 4 Channels LAN WDM Dual LC 25KM Ethernet


    Hilink Advantage

    1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
    2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
    3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
    Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
    4. We provide 3 years warranty for all our products from the date of shipment.
    5. All of our products get through CE,ROHS,FCC.
    6. We also provide DWDM CWDM WDM with optical solutions.

    FAQ

    1. Can I have a sample order? What is your MOQ?
    Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
    Mixed samples are acceptable.

    2. What is the lead time?

    1-3 days after receiving the payment for the regular goods we normally keeping in stock;
    For large quantity, you'll get support and details from your sales representative of HilinkTech.


    3. What is the shipping way and how long is the period?

    DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


    4. What is your warranty?

    3-year warranty.You'll get technique support, replacement or refund.
