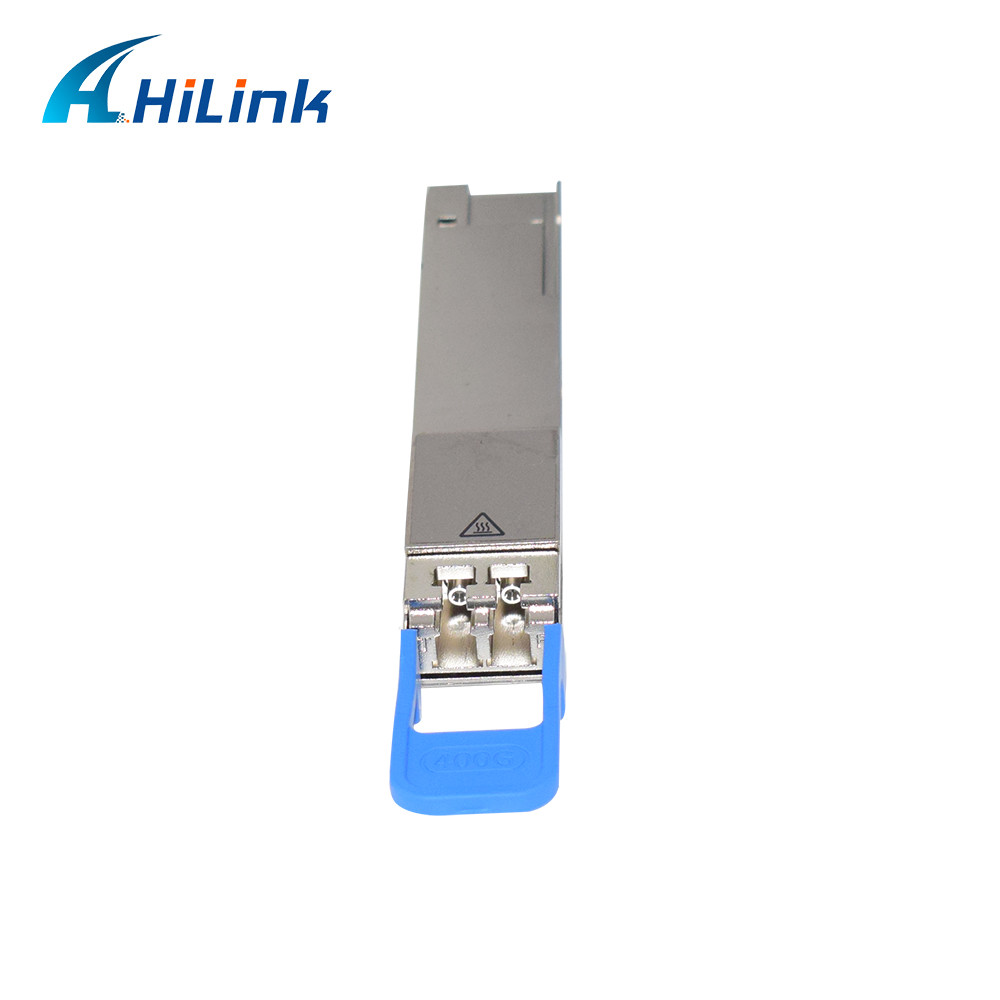

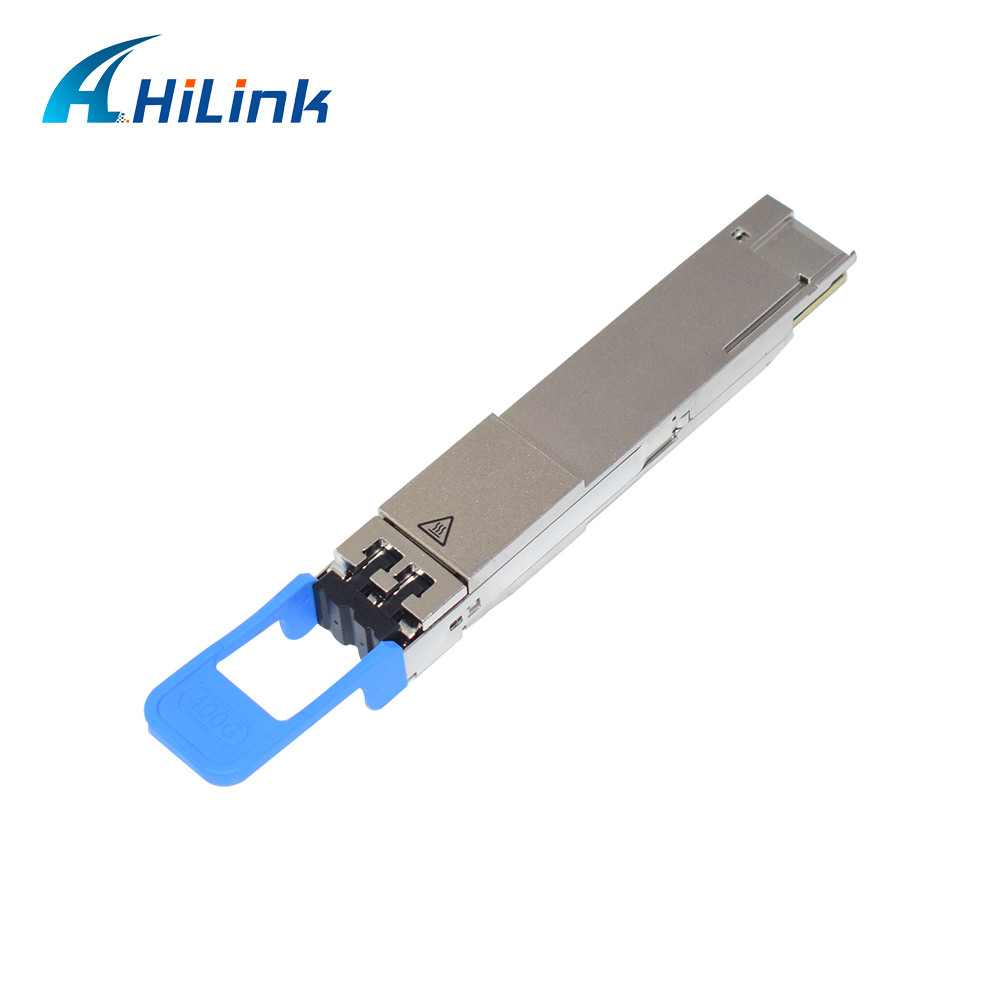

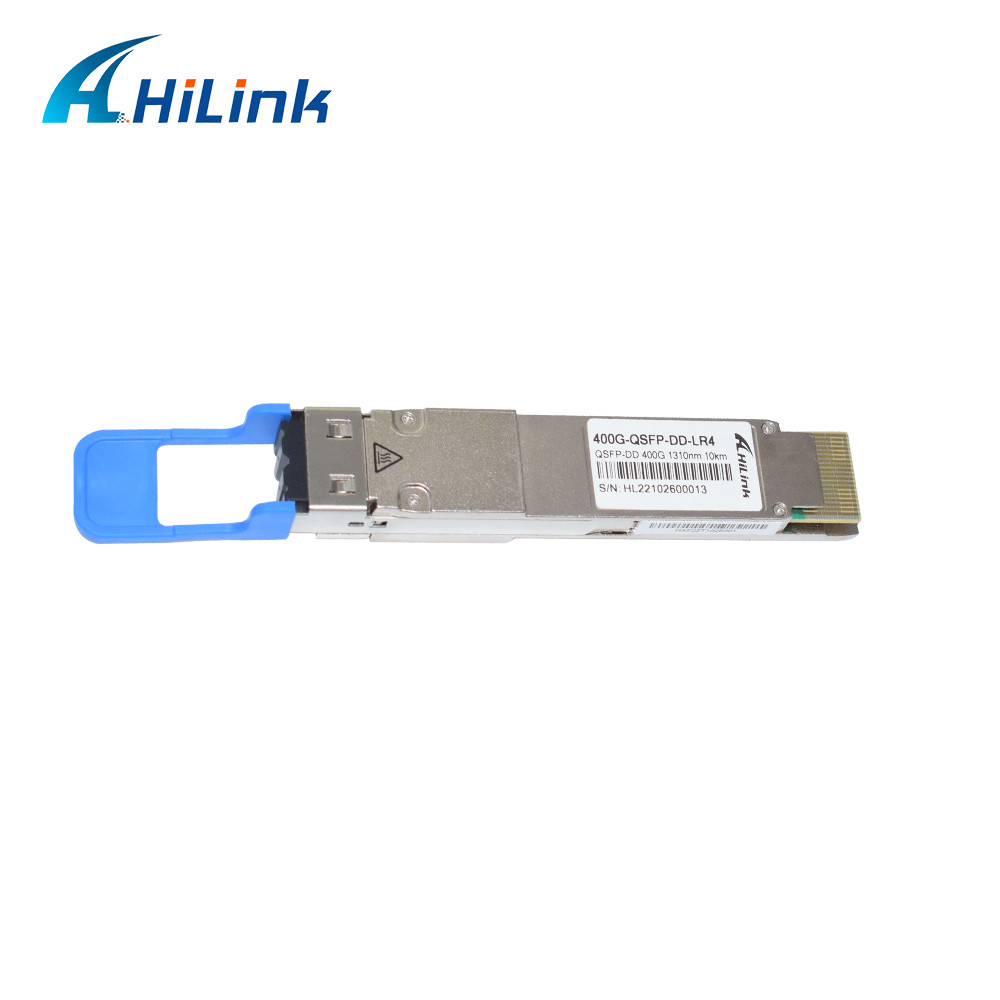

QSFP DD 400G LR4 SMF Fiber Optic Transceiver 10KM with FEC DDM
Duplex LC
This product is a 400Gb/s Quad Small Form Factor Pluggable-double
density (QSFP-DD) optical module designed for 10km optical
communication applications. The module converts 8 channels of
50Gb/s (PAM4) electrical input data to 4 channels of CWDM optical
signals, and
multiplexes them into a single channel for 400Gb/s optical
transmission. Reversely, on the receiver side, the module optically
de-multiplexes a 400Gb/s optical input into 4 channels of CWDM
optical signals, and converts them to 8 channels of 50Gb/s (PAM4)
electrical output data.
Features
100G Lambda MSA 400G-LR4 Specification compliant
4 CWDM lanes MUX/DEMUX design
8x53.125Gb/s electrical interface (400GAUI-8)
Data Rate 106.25Gbps (PAM4) perchannel
Maximum power consumption 12W
Duplex LC connector
Operating case temperature: 0 to 70℃
Up to 10km transmission on single mode fiber (SMF) with FEC
RoHS compliant
Optical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Transmitter |
Wavelength Assignment | L0 L1 L2 L3 | 1264.5 1284.5 1304.5 1324.5 | 1271 1291 1311 1331 | 1277.5 1297.5 1317.5 1337.5 | nm | |
Modulation Format | | | PAM4 | | | |
Side-mode Suppression Ratio | SMSR | 30 | | | dB | |
Total Average Launch Power | PT | | | 10 | dBm | |
Average Launch Power, each Lane | PAVG | -2.8 | | 4.0 | dBm | 1 |
Outer Optical Modulation Amplitude (OMAouter), each Lane | POMA | 0.2 | | 4.2 | dBm | 2 |
Launch Power in OMAouter minus TDECQ, each Lane | for ER ≥ 4.5dB for ER < 4.5dB |
| -1.2 -1.1 | | | dB | |
Transmitter and Dispersion Eye Closure for PAM4, each Lane | TDECQ | | | 3.9 | dB | |
TDECQ – 10*log (C ), each Lane | | | | 3.9 | dB | |
Extinction Ratio | ER | 3.5 | | | dB | |
Difference in Launch Power between any Two Lanes (OMAouter) | | | | 4 | dB | |
RIN15.6OMA | RIN | | | -136 | dB/Hz | |
Optical Return Loss Tolerance | TOL | | | 15.6 | dB | |
Transmitter Reflectance | RT | | | -26 | dB | |
| Transmitter Transition Time | | | | 17 | ps | |
Average Launch Power of OFF Transmitter, each Lane | Poff | | | -20 | dBm | |
| Receiver |
Data Rate, each Lane | | 53.125 ± 100 ppm | GBd | |
| Damage Threshold, each lane | THd | 5 | | | dBm | 4 |
Average receiver power, each lane | | -9.1 | | 4 | dBm | 5 |
Receive Power, each lane (OMA) | | | | 4.2 | dBm | |
Stressed receiver Sensitivity (OMAouter) , each lane(max) | SRS | | | -4.1 | dBm | 6 |
LOS De-Assert | LOSD | | | -12.1 | dBm | |
LOS Assert | LOSA | -20 | | | dBm | |
LOS Hysteresis | LOSH | 0.5 | | | dB | |
Stressed Conditions for Stress Receiver Sensitivity (Note 7) | |
Stressed eye closure for PAM4 (SECQ), lane under test | | | 3.9 | | dB | |
OMAouter of each aggressor lane | | | 0.5 | | dBm | |
Note:
1. Average launch power, each lane (min) is informative and not the
principal indicator of signal strength. A transmitter with launch power below this value
cannot be compliant; however, a value above this does not ensure compliance.
2. Even if the TDECQ < 1.4 dB for an extinction ratio of ≥ 4.5 dB
or TDECQ < 1.3 dB for an extinction ratio of < 4.5 dB, the OMAouter (min) must exceed the
minimum value specified here.
3.Ceq is a coefficient defined in IEEE Std 802.3-2018 clause
121.8.5.3 which accounts for reference equalizer noise enhancement.
4. Average receive power, each lane (min) is informative and not the
principal indicator of signal strength. A received power below this value cannot be
compliant; however, a value above this does not ensure compliance.
5.The receiver shall be able to tolerate, without damage,
continuous exposure to an optical input signal having this average power level.
6.Measured with conformance test signal at TP3 for the BER equal to
2.4x10-4.
7. These test conditions are for measuring stressed receiver
sensitivity. They are not characteristics of the receiver.
Applications
Data Center Interconnect
400G Ethernet
Infiniband interconnects
Enterprise networking
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link,
Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie,
Zyxel, etc.
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around
10-year experience.
2."Credit is the basis, quality is the first",all our products are
new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP,
Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date
of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally
keeping in stock;
For large quantity, you'll get support and details from your sales
representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes
3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
