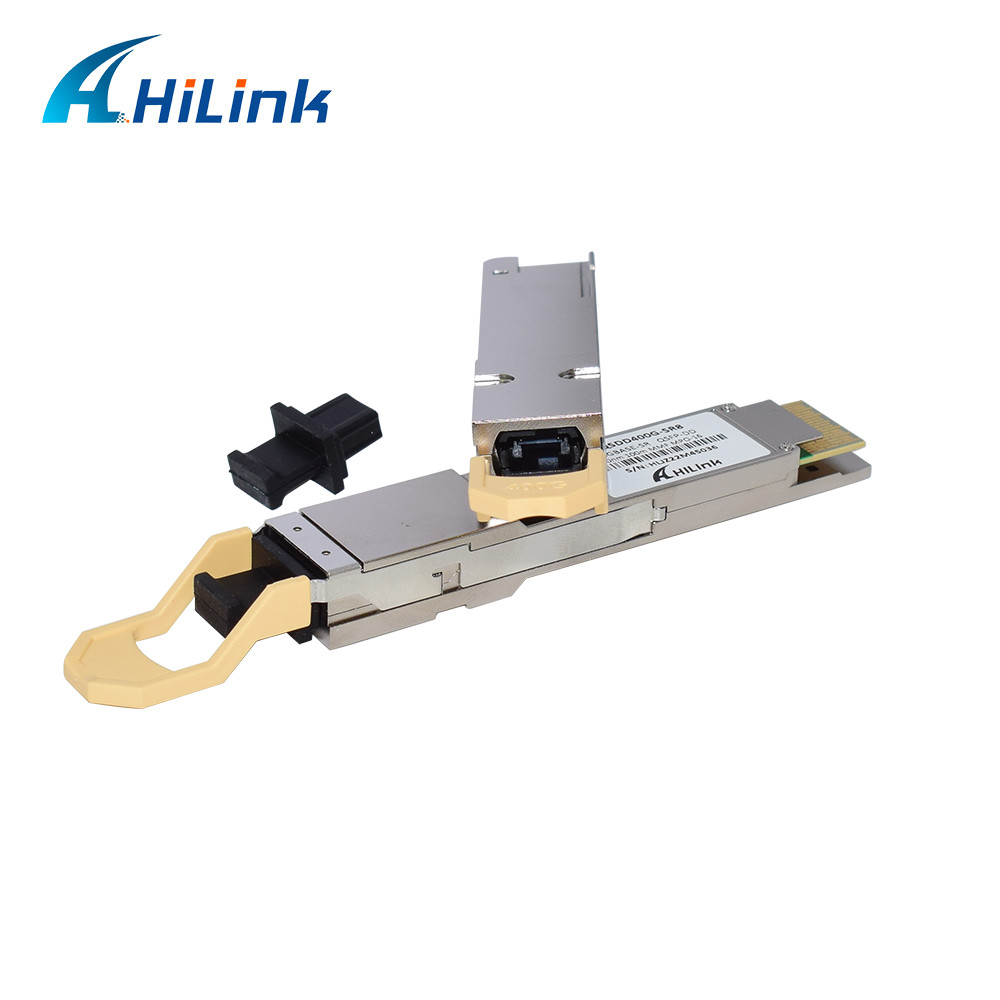

QSFP DD 400G SR8 Fiber Optic Transceiver 100M MMF 850nm MPO-16

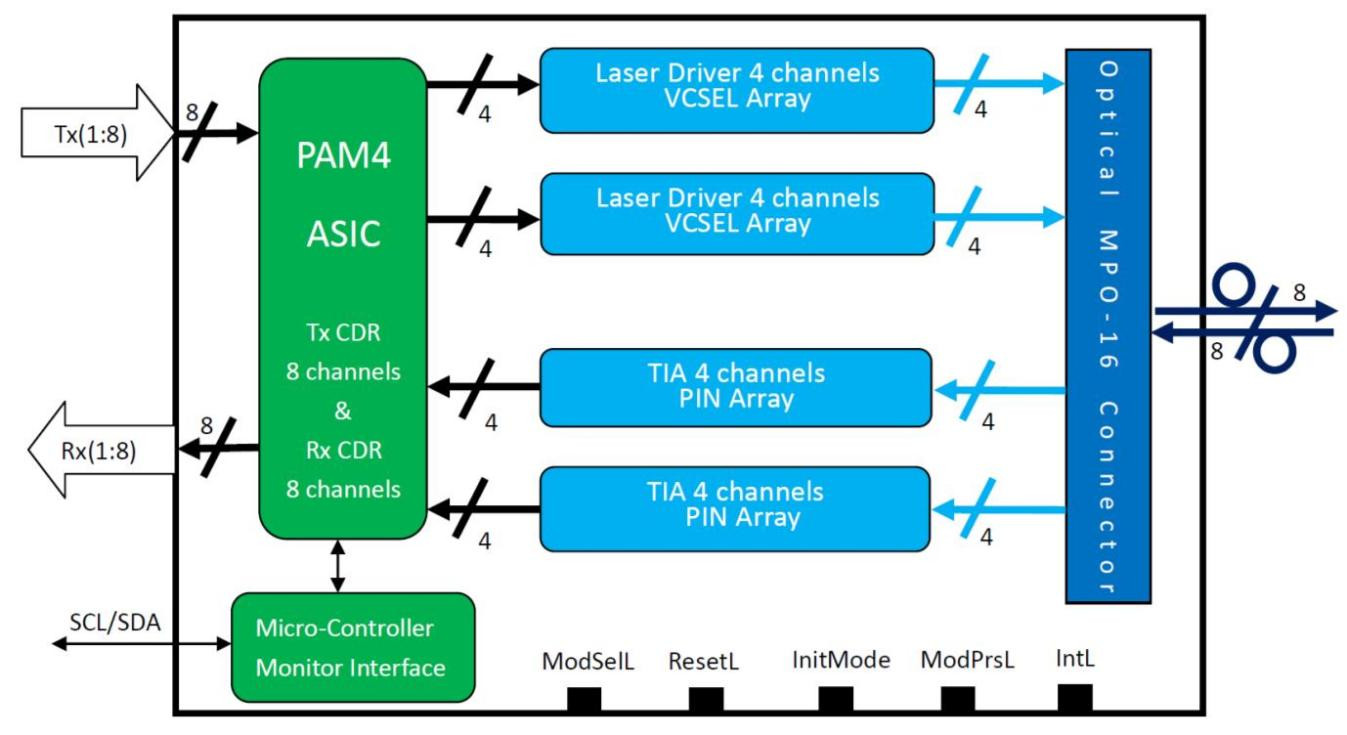

This product is a parallel 400Gb/s Quad Small Form Factor Pluggable--double density (QSFP-DD)optical module. It provides increased port density and total system cost savings. The QSFP-DD full-duplex optical module offers 8 independent transmit and receive channels, each capable of 53.125Gb/s operation for an aggregate data rate of 400Gb/s on 100 meters of OM3 multi-mode fiber.

Features

• QSFP-DD MSA compliant

• 8 parallel lanes on 850nm center wavelength

• Compliant to IEEE 802.3bs Specification

• Up to 100m transmission on multi-mode fiber (MMF) OM3 with FEC

• Operating case temperature: 0℃ to 70℃

• 8x53.125Gb/s electrical interface (400GAUI-8)

• Data Rate 53.125Gbps (PAM4) per channel.

• Maximum power consumption 12W

• MPO-16 connector

• RoHS compliant

Optical Characteristics

Note

1. Average receive power, each lane (min) is informative and not the principal indicator of signal strength. A received power below this value cannot be compliant; however, a value above this does not ensure compliance.

2. Receiver sensitivity is informative and is defined for a transmitter with a value of SECQ up to 4.9 dB.

3. Equation 3: RS= Max (-6, SECQ-7.9) (dBm), where

RS is the receiver sensitivity, SECQ is the SECQ of the transmitter used to measure the receiver sensitivity

4. Measured with conformance test signal at TP3 for the BER of 2.4 E-4

Applications

• Data Center Interconnect

• 400G Ethernet

• Infiniband interconnects

• Enterprise networking

Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2."Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
