100G EZR4 QSFP28 Transceiver Module 100KM SMF With FEC Dual LC

Ask Lasest Price
Brand Name :	HILINK
Model Number :	HL-QSFP28-eZR4-100
Certification :	CE FCC RoHS
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram,Paypal
Supply Ability :	100PCS Per Day
Delivery Time :	3-5 Working Days

Add to Cart

Product Details
Company Profile

100G EZR4 QSFP28 Transceiver Module 100KM SMF With FEC Dual LC

Brands Compatible QSFP28 100G eZR4 100KM on SMF With FEC Dual LC QSFP Transceivers

Hilink QSFP28 ZR4 modules are designed for 100 Gigabit Ethernet over single mode fiber. They are compliant with the QSFP28 MSA, 100GBASE-ZR4+.

Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA. QSFP28 are compliant with RoHS.

100G EZR4 QSFP28 Transceiver Module 100KM SMF With FEC Dual LC

Features

Compliant with QSFP28 MSA

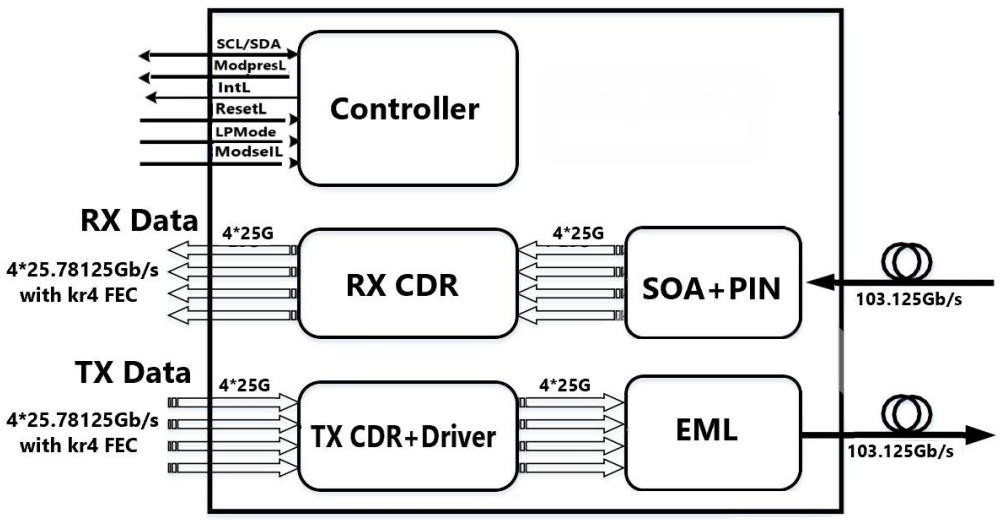

4 cooled 25Gb/s channels LAN WDM EML TOSA
4 channels SOA PIN photo detector
Single +3.3V power supply
Class 1 laser safety certified
Commercial operating temperature: 0℃ to +70℃
Up to 100km on SMF with FEC
Duplex LC connector
RoHS 6/6 Compliant

Optical Characteristics

Transmitter:

Parameter	Symbol	Minimum	Typical	Maximum	Unit	Notes
Launch Optical Power per lane	Po	+3.0	-	+6.5	dBm	1
Total Launch Optical Power	Po	-	-	+12.5	dBm	1
Center Wavelength Range	L1	1294.53	1295.56	1296.59	nm	-
	L2	1299.02	1300.05	1301.09	nm	-
	L3	1303.54	1304.58	1305.63	nm	-
	L4	1308.09	1309.14	1310.19	nm	-
Extinction Ratio	EX	8.0	-	-	dB	2
Spectral width(-20dB)	Δλ	-	-	1	nm	-
Side Mode Suppression Ratio	SMSR	30	-	-	dB	-
Optical Return Loss Tolerance	ORLT	-	-	20	dB	-
Pout @TX-Disable Asserted	P_off	-	-	-30	dBm	1
Eye Mask {X1, X2, X3, Y1, Y2, Y3}	{0.25, 0.4, 0.45, 0.25, 0.28, 0.4}

Notes:

The optical power is launched into SMF.
Measured with a PRBS 2³¹-1 test pattern @25.78125Gbps.

Receiver:

Parameter	Symbol	Minimum	Typical	Maximum	Unit	Notes
Center Wavelength	L1	1294.53	1295.56	1296.59	nm	-
	L2	1299.02	1300.05	1301.09	nm	-
	L3	1303.54	1304.58	1305.63	nm	-
	L4	1308.09	1309.14	1310.19	nm	-
Sensitivity per Channel (average optical power)	S	-	-	-30.0	dBm	1
Overload (each channel)	POL	+4.5	-	-	dBm	1
Damage Threshold(each channel)	Pdamage	+5.5	-	-	dBm	-
Receiver Reflectance	Rf	-	-	-26	dB	-
LOS De-Assert	LOSD	-	-	-29.0	dBm	-
LOS Assert	LOSA	-	-	-32.0	dBm	-
LOS Hysteresis	-	0.5	-	5.0	dB	-

Notes:

Measured with PRBS 2³¹-1 test pattern, 25.78125Gb/s, BER 5.0E-5;

Applications

100GBASE-ZR4 Ethernet links
Data center

Compatibility

Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

Details Photos

100G EZR4 QSFP28 Transceiver Module 100KM SMF With FEC Dual LC

Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.

FAQ

1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.

2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.

3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .

4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
