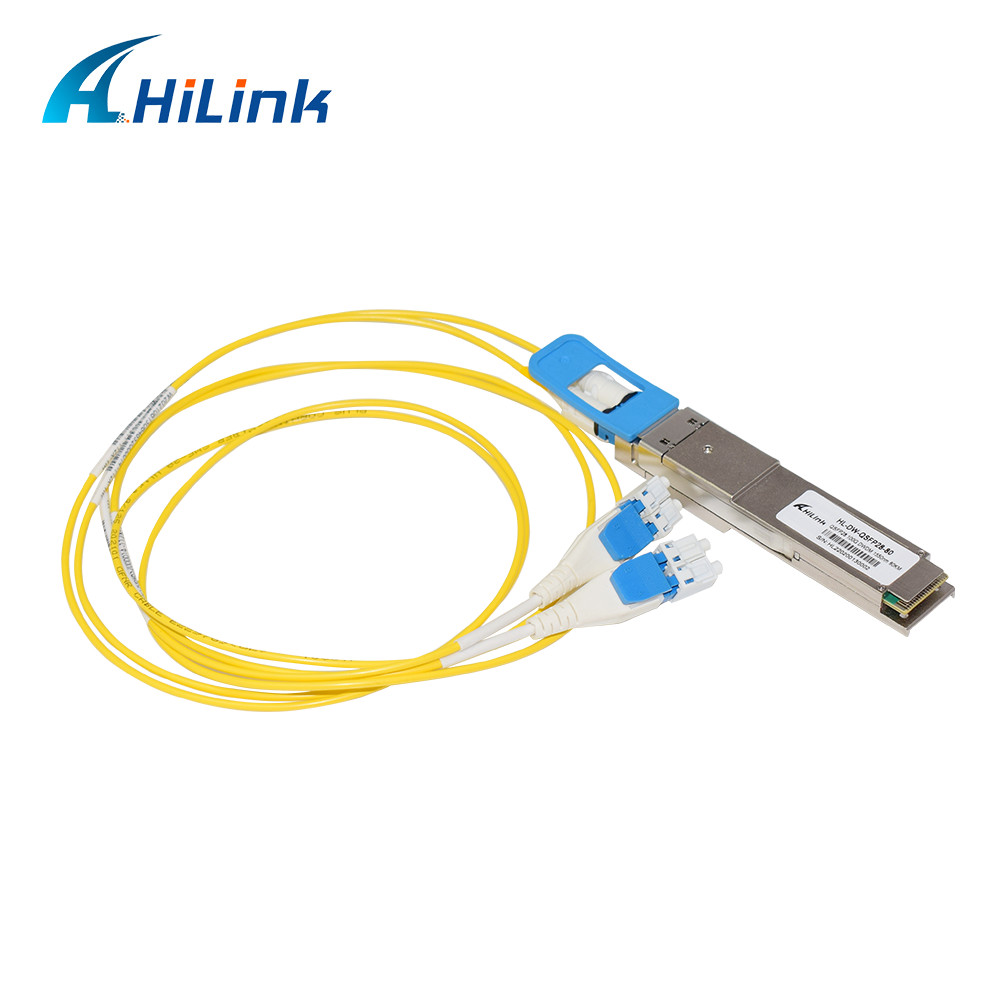

Hilink 100G QSFP28 80KM 100Ghz ITU DWDM PAM4 Dual CS Adapter Transceiver

Hilink QSFP28 100G PAM4 Optical Transceiver module supports up to 40ch 100G links up to 80km(with EDFA/TDCM) over single-mode fiber (SMF) via a CS duplex connector.

Features

• Hot pluggable QSFP28 MSA form factor
• Up to 80km reach for G.652 SMF with transport white box
• Single +3.3V power supply
• Temperature Range 0 to 70°C
• Transmitter: Cooled EML 2*27.5Gbaud/s DWDM TOSA
• Receiver: 2*27.5Gbaud/s Pin-PD ROSA
• 4*25G CAUI4 electrical interface
• Integrated SFEC with high coding gain
• PAM4 modulation format on 100GHz ITU DWDM wavelength grid compatible
• Dual CS adaptor
• Compatible with RoHS6

Wavelength Table

100G QSFP28 DWDM Solutions

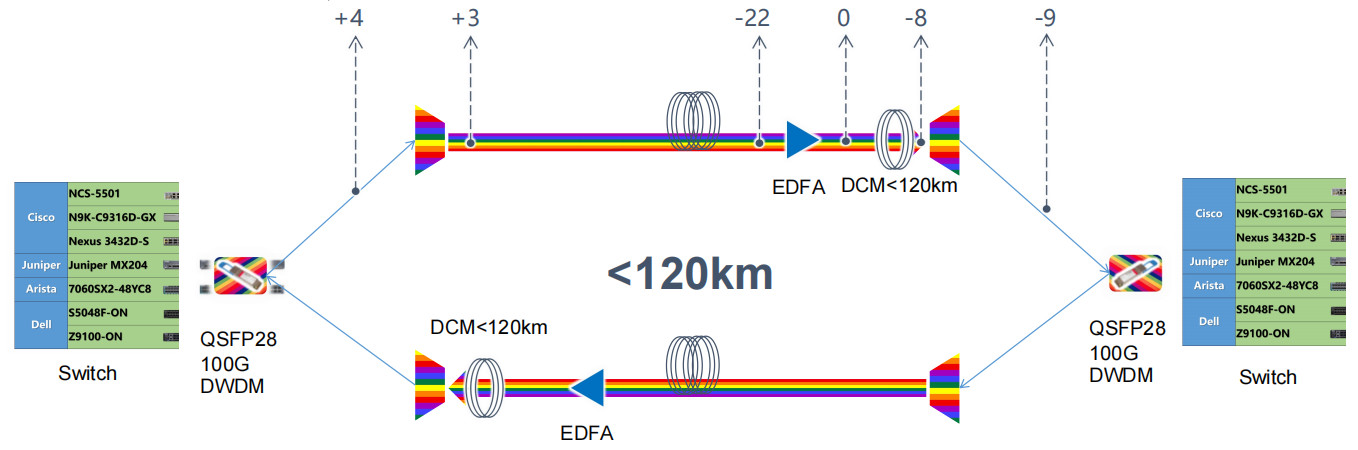

• Passive DWDM MUX 1X100G QSFP28 DWDM 120KM Solution

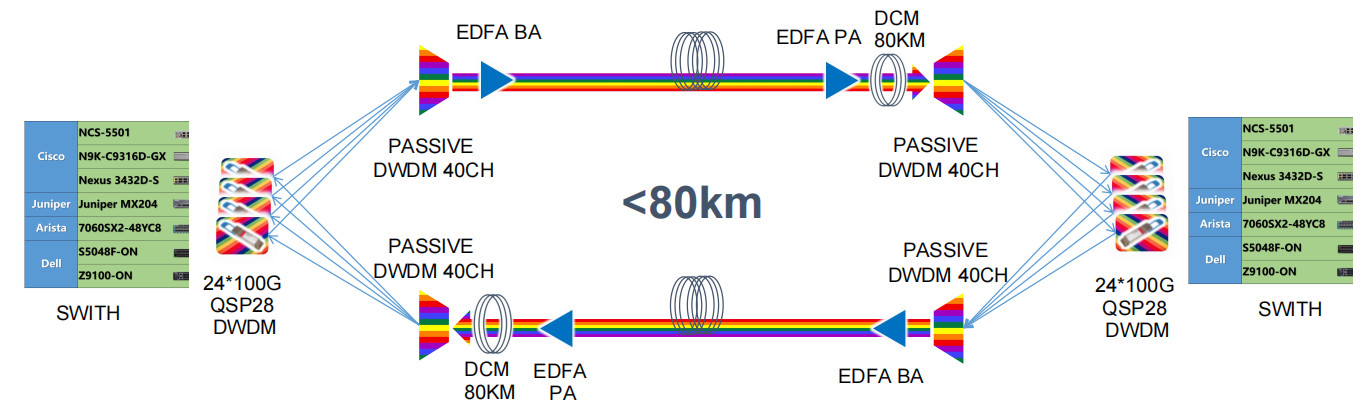

• Passive DWDM MUX 4X100G QSFP28 DWDM 80KM Solution

• Passive DWDM MUX 24X100G QSFP28 DWDM 80KM Solution

Compatibility
