Hot Pluggable 10G SFP+ SMF 80KM ZR Transceiver 10G ZR 80KM 1550nm
SFP
General
HILINK's HLPG120D is a very compact 10Gb/s optical transceiver module for serial
optical communication applications at 10Gb/s. The HLPG120D converts a 10Gb/s serial electrical data stream to 10Gb/s optical
output signal and a 10Gb/s optical input signal to 10Gb/s serial
electrical data streams. The high speed 10Gb/s electrical interface
is fully compliant with SFI specification.
The high performance 1550nm cooled CML transmitter and high sensitivity APD receiver provide superior performance for Ethernet applications at
up to 120km links.
The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-ZR. Digital diagnostics functions are available via a 2-wire serial
interface, as specified in SFF-8472.
The fully SFP compliant form factor provides hot pluggability, easy
optical port upgrades and low EMI emission.
Features
0 to +2400 ps/nm Dispersion Tolerance (~120km reach without dispersion compensation)
Supports 9.95 to 11.3Gb/s bit rates
Hot-Pluggable
Duplex LC connector
1550nm cooled CML transmitter, APD photo-detector
SMF links up to 120km
2-wire interface for management specifications compliant with SFF
8472 digital diagnostic monitoring interface
Power Supply :+3.3V
Power consumption<1.8W
Temperature Range: 0~ 70°C
RoHS compliant
Application
10GBASE-ZR/ZW Ethernet
SONET OC-192 / SDH
10G Fibre channe
SFP+ Transceivers
| 10G SFP Module | SFP-10G-SR | SFP 10G 850nm 300M LC DOM |
| SFP-10G-LR | SFP 10G 1310nm 10KM LC DOM |
| SFP-10G-ER | SFP 10G 1310nm 40KM LC DOM |
| SFP-10G-ER | SFP 10G 1550nm 40KM LC DOM |
| SFP-10G-ZR | SFP 10G 1550nm 80KM LC DOM |
| SFP-10G-ZR-100 | SFP 10G 1550nm 100KM LC DOM |
| SFP-10G-ZR-120 | SFP 10G 1550nm 120KM LC DOM |

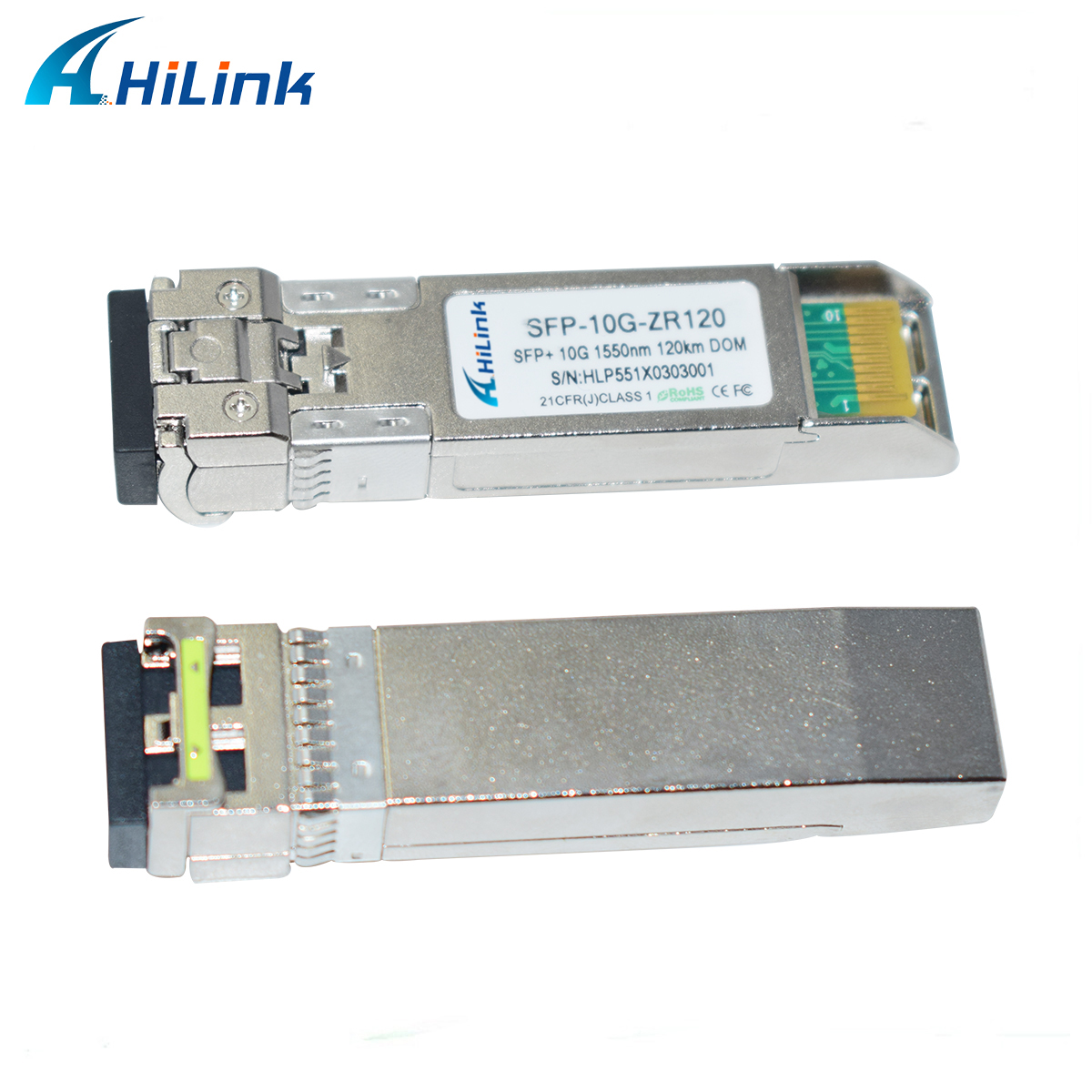

Product Picture
Optical Parameters (TOP(C) = 0 to 70 ℃, VCC =3.135 to 3.465 Volts)
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: |
| Center Wavelength | λt | 1530 | 1550 | 1565 | nm | |
| spectral width | △λ | | | 0.3 | nm | |
| Average Optical Power | Pavg | 0 | | +5 | dBm | 1 |
| Optical Power OMA | Poma | -2.1 | | | dBm | |
| Laser Off Power | Poff | | | -30 | dBm | |
| Extinction Ratio | ER | 8.2 | | | dB | |
| Transmitter Dispersion Penalty | TDP | | | 3.0 | dB | 2 |
| Relative Intensity Noise | Rin | | | -128 | dB/Hz | 3 |
| Optical Return Loss Tolerance | | 21 | | | dB | |
| Receiver Section: |
| Center Wavelength | λr | 1260 | | 1600 | nm | |
| Receiver Sensitivity | Sen | | | -24 | dBm | 4 |
| Los Assert | LOSA | -34 | | - | dBm | |
| Los Dessert | LOSD | | | -24 | dBm | |
| Los Hysteresis | LOSH | 0.5 | | | dB | |
| Overload | Sat | -7 | | | dBm | 5 |
| Receiver Reflectance | Rrx | | | -26 | dB | |
Note:
1. Average power figures are informative only, per IEEE802.3ae.
2. TWDP figure requires the host board to be SFF-8431compliant.
TWDP is calculated using the Matlab code provided in clause
68.6.6.2 of IEEE802.3ae.
3. 12dB reflection.
4. Conditions of stressed receiver tests per IEEE802.3ae. CSRS
testing requires the host board to be SFF-8431 compliant.
5. Receiver overload specified in OMA and under the worst
comprehensive stressed condition.
Package Dimensions
.
Ordering Information
| Part Number | Description |
| HLSP551XL-C(I)D120 | SFP+,9.95 to 11.3Gb/s, 1550nm EML,120km, 0~70℃, with DDM |
| HLSP551XL-C(I)D120 | SFP+,9.95 to 11.3Gb/s, 1550nm EML, 120km, -5~80℃, with DDM |
FAQ
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct
item you need,please send us inquiry.We will reply shortly.
