SFP+ ZR 100KM 10G ZR SFP Single Mode 100KM 1550nm SMF Transceiver
Optica
General
HILINK HLSP551XL-C(I)DH1 transceivers are Enhanced Small Form
Factor Pluggable SFP+ transceivers designed for use in 10-Gigabit
multi-rate links up to 80km of G.652 single mode fiber. They are
compliant with SFF-8431, SFF-8432 and support 10G Ethernet ZR and
10G Fibre Channel.Digital diagnostics functions are available via a
2-wire serial interface, as specified in SFF-8472. The transceiver
designs are optimized for high performance and cost effective to
supply customers the best solutions for telecommunication and
datacom.
Features
Supports 9.95 to 11.3Gb/s bit rates with Dual CDR
Duplex LC connector
Hot pluggable SFP+ footprint
Cooled 1550nm EML transmitter, APD receiver
Applicable for 100km SMF connection
Low power consumption, < 1.5W
Digital Diagnostic Monitor Interface
Optical interface compliant to IEEE 802.3ae 10GBASE-ZR
Electrical interface compliant to SFF-8431,SFF-8432
Operating case temperature:
Commerical:0 to 70 °C Industrial:-5 to 80 °C
Application
10GBASE-ZR at 10.3125Gbps
OTN G.709 OTU1e/2/2e
4x, 8x and 10x 10G Fiber Channel
Other optical links
SFP+ Transceivers
| 10G SFP Module | SFP-10G-SR | SFP 10G 850nm 300M LC DOM |
| SFP-10G-LR | SFP 10G 1310nm 10KM LC DOM |
| SFP-10G-ER | SFP 10G 1310nm 40KM LC DOM |
| SFP-10G-ER | SFP 10G 1550nm 40KM LC DOM |
| SFP-10G-ZR | SFP 10G 1550nm 80KM LC DOM |
| SFP-10G-ZR-100 | SFP 10G 1550nm 100KM LC DOM |
| SFP-10G-ZR-120 | SFP 10G 1550nm 120KM LC DOM |

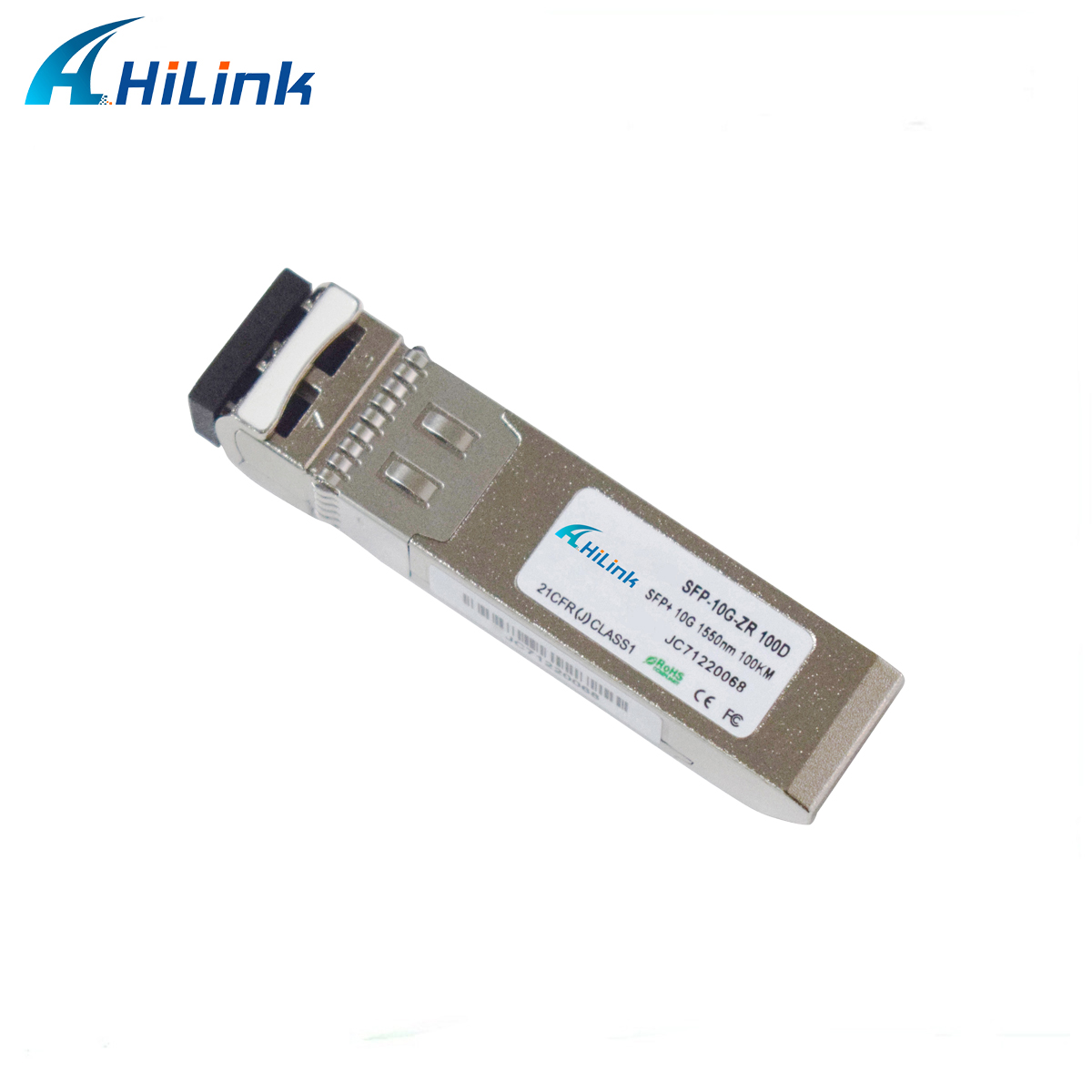

Product Picture
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter |
| Operating Wavelength | λ | 1530 | | 1565 | nm | |
| Ave. output power (Enabled) | PAVE | 0 | | 5 | dBm | 1 |
| Side-Mode Suppression Ratio | SMSR | 30 | | | dB | |
| Extinction Ratio | ER | 9 | | | dB | |
| RMS spectral width | Δλ | | | 1 | nm | |
| Relative Intensity Noise | RIN | | | -128 | dB/Hz | |
| Output Optical Eye | Compliant with IEEE 0802.3ae |
| Receiver |
| Operating Wavelength | λ | 1260 | | 1600 | nm | |
| Receiver Sensitivity | PSEN1 | | | -25 | dBm | 2 |
| Recevier Reflectance | Rrx | | | -27 | dB | |
| Overload | PAVE | | | -7 | dBm | |
| LOS Assert | Pa | -37 | | | dBm | |
| LOS De-assert | Pd | | | -28 | dBm | |
| LOS Hysteresis | Pd-Pa | 0.5 | | | dB | |
Notes:
1. Measured with worst ER=9dB
2. PRBS 231 – 1 and BER<10-12@10.3125G
Package Dimensions
.
Ordering Information
| Part Number | Description |
| HLSP551XL-C(I)DH1 | SFP+,9.95 to 11.3Gb/s, 1550nm EML,100km, 0~70℃, with DDM |
| HLSP551XL-C(I)DH1 | SFP+,9.95 to 11.3Gb/s, 1550nm EML, 100km, -5~80℃, with DDM |
