10G 60KM SFP+ Transceiver Module BIDI 60KM SFP+ 10G-ER4-60KM SMF 1270nm/1330nm

Ask Lasest Price
Brand Name :	HILINK
Model Number :	HL-10G-SFP-BXD-60KM
Certification :	CE FCC Rohs
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, Paypal
Supply Ability :	3000 pairs per Week
Delivery Time :	1-4 days

Add to Cart

Product Details
Company Profile

10G 60KM SFP+ Transceiver Module BIDI 60KM SFP+ 10G-ER4-60KM SMF 1270nm/1330nm

10G SFP 60KM BIDI 60KM 10G-ER4-60KM SMF 1270nm/1330nm Compatible Brand

General

HLSBxx1XL-CD60 series single mode transceiver is small form factor pluggable module for optical data communications such as 10G Ethernet. It is with the SFP+ 20-pin connector to allow hot plug capability. The HLSBxx1XL-CD60 module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm; The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section consists of a APD photodiode integrated with a TIA. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions for telecommunication.

Features

Supports 9.95 to 10.3Gb/s bit rates

Simplex LC Connector

Hot pluggable SFP+ footprint

Uncooled 1270nm DFB transmitter, 1330nm APD photo-detector

Uncooled 1330nm DFB transmitter, 1270nm APD photo-detector

Applicable for 60km SMF connection

Low power consumption, < 1.5W

Digital Diagnostic Monitor Interface

Optical interface compliant to IEEE 802.3ae 10GBASE-ER

Electrical interface compliant to SFF-8431

Operating case temperature:

Commerical:0 to 70 °C Industrial:-40 to 80 °C

Application

10.3125Gbps Ethernet

Other Optical Links

BIDI(WDM) SFP Transceivers

10G SFP BiDi	SFP+ BiDi 1270 20km	SFP+ BiDi 20km Tx1270nm/Rx1330nm LC
	SFP+ BiDi 1330 20km	SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
	SFP+ BiDi 1270 40km	SFP+ BiDi 40km Tx1270nm/Rx1330nm LC
	SFP+ BiDi 1330 40km	SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
	SFP+ BiDi 1270 60km	SFP+ BiDi 60km Tx1270nm/Rx1330nm LC
	SFP+ BiDi 1330 60km	SFP+ BiDi 60km Tx1330nm/Rx1270nm LC
	SFP+ BiDi 1490 80km	SFP+ BiDi 80km Tx1490nm/Rx1550nm LC
	SFP+ BiDi 1550 80km	SFP+ BiDi 80km Tx1550nm/Rx1490nm LC

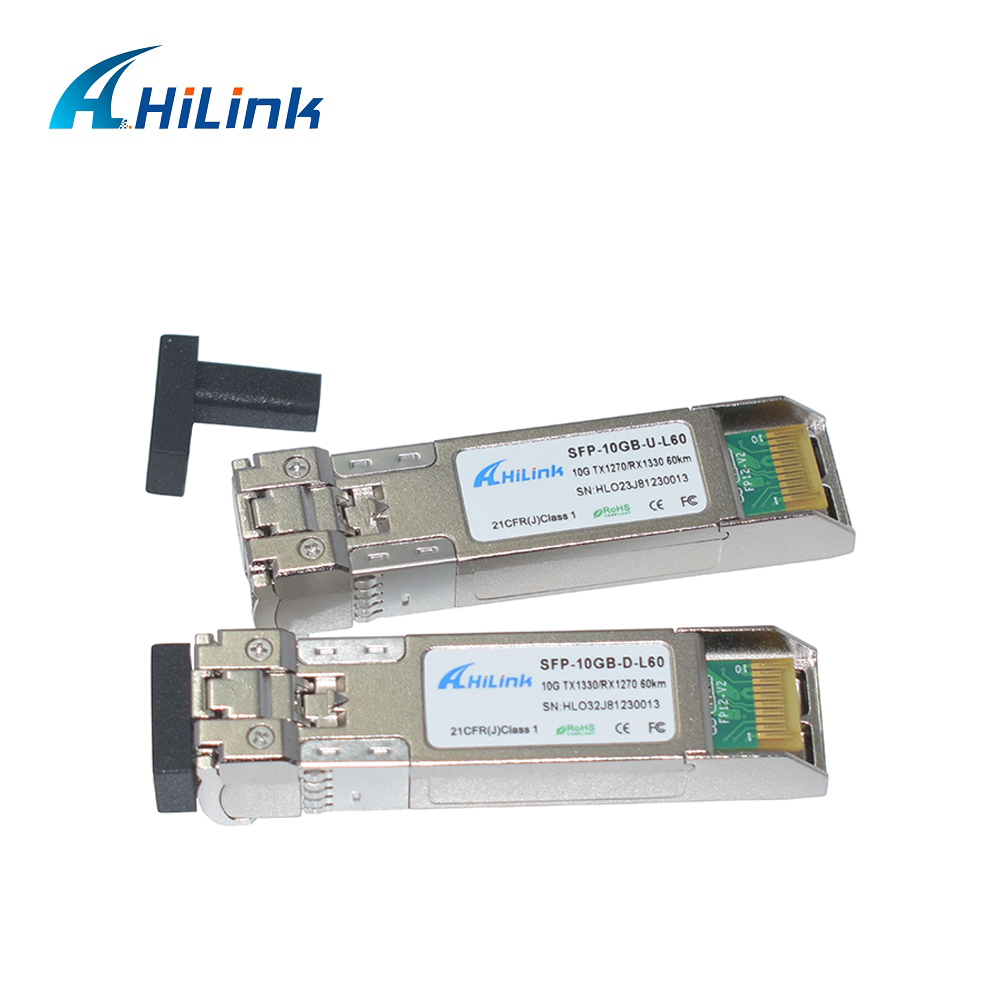

Product Picture

Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)

Parameter	Symbol	Min.	Typ	Max.	Unit	Note
Transmitter
Operating Wavelength	λ	1260	1270	1280	nm
Operating Wavelength	λ	1320	1330	1340	nm
Ave. output power (Enabled)	PAVE	1		5	dBm	1
Side-Mode Suppression Ratio	SMSR	30			dB
Extinction Ratio	ER	5	6		dB
RMS spectral width	Δλ			1	nm
Rise/Fall time (20%~80%)	Tr/Tf			50	ps
Dispersion penalty	TDP			3.2	dB
Relative Intensity Noise	RIN			-128	dB/Hz
Output Optical Eye	Compliant with IEEE 0802.3ae
Receiver
Operating Wavelength	λ	1320	1330	1340	nm
Operating Wavelength	λ	1260	1270	1280	nm
Receiver Sensitivity	PSEN1			-20	dBm	2
Sensitivity over 60Km fiber	PSEN2			-18	dBm	2
Overload	PAVE			-7	dBm
LOS Assert	Pa	-35			dBm
LOS De-assert	Pd			-22	dBm
LOS Hysteresis	Pd-Pa	0.5			dB

Notes:

1. Average power figures are informative only, per IEEE 802.3ae.

2. Measured with worst ER; BER<10^-12; 2^{31 – 1} PRBS.

Electrical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)

Parameter	Symbol	Min.	Typ	Max.	Unit	Note
Transmitter
Differential data input swing	VIN,PP	180		700	mVpp	1
Transmit Disable Voltage	VD	VCC-0.8		Vcc	V
Transmit Enable Voltage	VEN	Vee		Vee+0.8	V
Input differential impedance	Rin		100		Ω
Receiver
Differential data output swing	Vout,pp	300		850	mVpp	2
Output rise time and fall time	Tr, Tf	28			Ps	3
LOS asserted	VLOS_F	VCC-0.8		Vcc	V	4
LOS de-asserted	VLOS_N	Vee		Vee+0.8	V	4

Notes:

1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.

2. Into 100Ω differential termination.

3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an acceptable alternative.

4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.

Package Dimensions

Ordering Information

Part Number	Description
HLSBxx1XL-CD60	SFP+Bidi,9.95 to 10.3Gb/s, 1270/1330nm,60km, 0~70℃, with DDM
HLSB321XL-CD60	SFP+Bidi,9.95 to 10.3Gb/s, 1330/1270nm, 60km, 0~70℃, with DDM
HLSB231XL-ID60	SFP+Bidi,9.95 to 10.3Gb/s, 1270/1330nm, 60km, -40~80℃, with DDM
HLSB321XL-ID60	SFP+Bidi,9.95 to 10.3Gb/s, 1330/1270nm, 60km, -40~80℃, with DDM
